SKC-LB1820/1840/1820B/1025S
- Adopting Japanese high performance Li-ion (Li-Mn) battery.
- Built in protection device to prevent battery overcharge and over discharge.

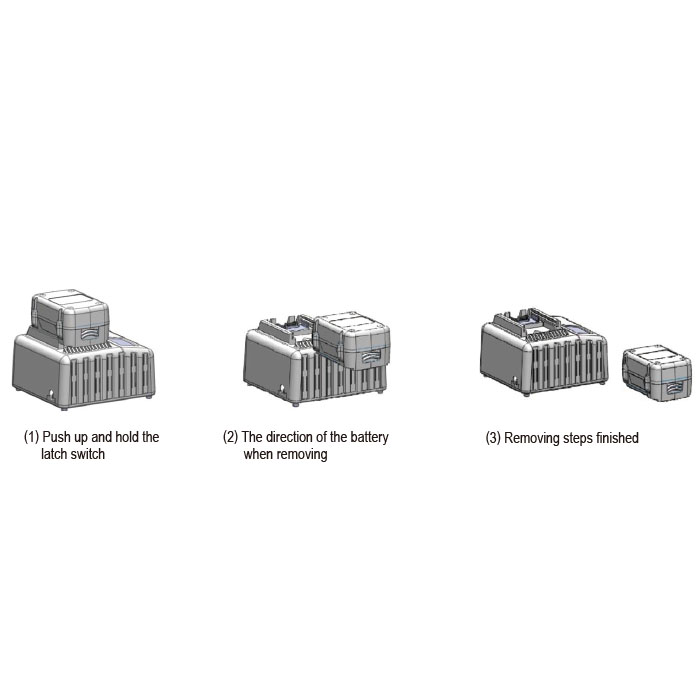

- The latch design increases intensity and convenience when assembling or dismantling the rechargeable battery form the cordless screwdriver.
- Fully charged voltage: 21V, low-voltage protection: 13.5V, over temperature protection (discharge): 72℃.
- Battery ID identification design, which only allows original charge station to recharge the battery to secure battery safety and extend battery lifetime.
SKC-LB1820/1840/1820B/1025S
Product Spec
| Battery Model |
SKC-LB1820 |

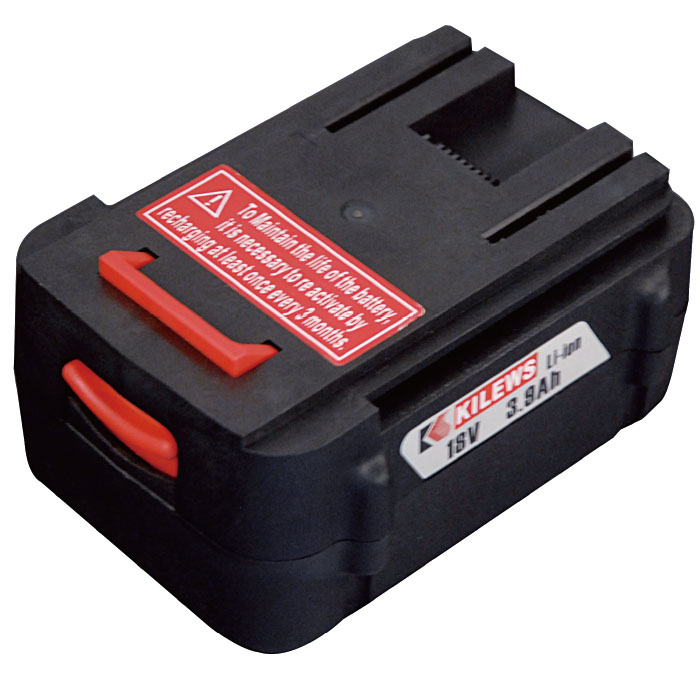

SKC-LB1840 |

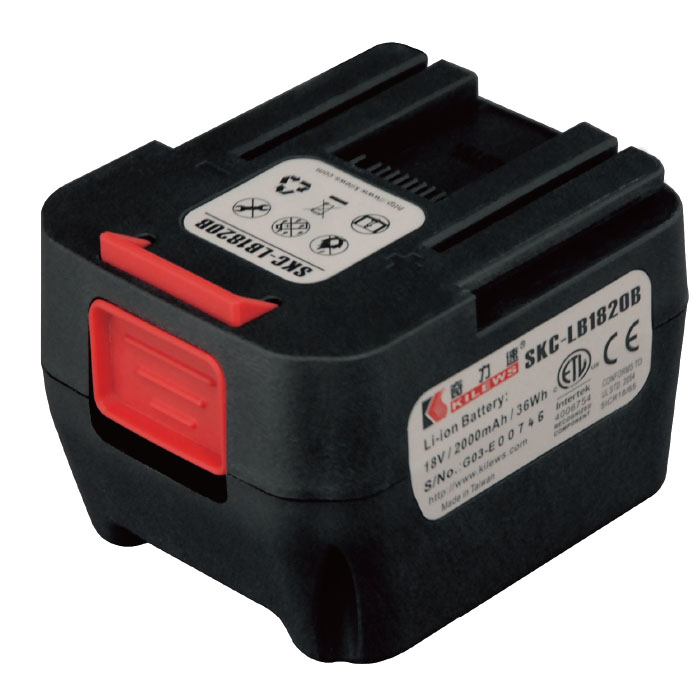

SKC-LB1820B / LB1820C |
SKC-LB1025S |
| Voltage |
18V |
10.8V |
| Capacity |
1950mA/hr |
3900mA/hr |
2000mA/hr |
2500mA/hr |
| Rated voltage |
18V |
10.8V |
| Power |
35Wh |
70Wh |
36Wh |
25Wh |
| Cells Permutation |
5 series 1 parallel |
5 series 2 parallel |
5 series 1 parallel |
|
| Weight |
430g |
720g |
430g |
200g |
| Dimensions(mm) |
119*90*40 |
119*90*59 |
92*75*63 |
89*41*51 |
| Certification |
CE, ETL |
| Un38.3 Inspection report |
YES |
Battery charging time reference
| Battery Wodel / Capacity |
SKC-P120W |
SKC-P80W |
SKC-80W |
SKC-P80W-D |
| SKC-LB1820(1950mA/hr) |
40 min |
40 min |
40 min |
|
| SKC-LB1840(3900mA/hr) |
60 min |
80 min |
80 min |
|
| SKC-LB1820B(2000mA/hr) |
|
|
|
40 min |
