AUTOMATIC COMPRESSION AND TENSION SPRING TESTER ‒ PRO Series

Our Best-Selling Spring Tester ‒ High Precision and Advanced Functionality. A comprehensive lineup of 14 models, covering a wide range from a minimum load display of 0.01 mN (0.001 gf) up to a maximum capacity of 200 kN (20 tons).Choose from Basic, Special, and High-Grade models to best suit your application.

All models comply with “JIS B 7738” Class 0.5 (the highest grade) for compressions and tension testing of coil springs.

For testing machines with a capacity of 1 kN or more, we strongly recommend using the optional safety cover

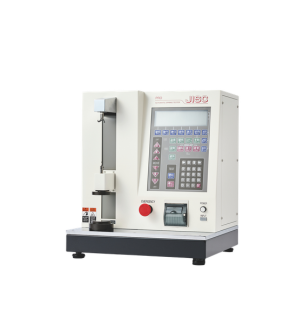

AUTOMATIC SPRING TESTER - TABLE TOP

PRO-10N～D1KN / PRO-1N

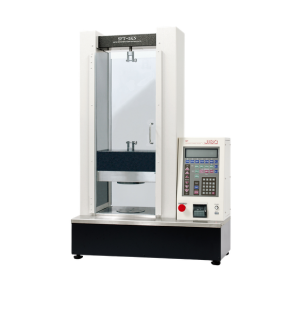

AUTOMATIC SPRING TESTER - TWIN COLUMN

PRO-1KN～200KN

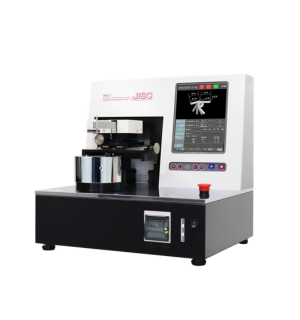

AUTOMATIC TORSION SPRING TESTER ‒ PRO-T / PRO-TT Series

The PRO-TT Series features a torque cell system that significantly reduces measurement errors caused by arm length, enabling high-precision testing of even the smallest torsion springs.

AUTOMATIC TORSION SPRING TESTER

PRO-T-50N / 100N / 500N

PRO-TT-01NM / 1NM

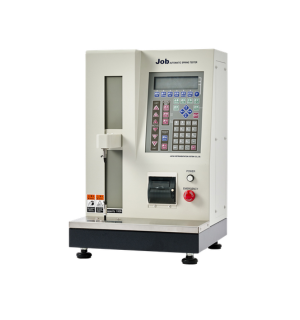

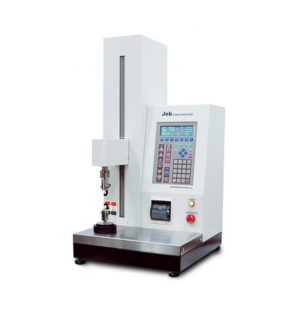

ON-SITE AUTOMATIC SPRING TESTER ‒ JOB Series

This automatic spring tester was developed in response to customer feedback requesting a cost-effective and precise solution for use directly on the production line.

Its compact design allows easy installation in spring manufacturing environments, enabling on-site testing that enhances efficiency and supports quality control.

COMPRESSION TYPE / TENSION TYPE

JOB-C10N～1KN

JOB-T10N～1KN

ON-SITE AUTOMATIC SPRING TESTER CT-TYPE

JOB-CT50N～1KN

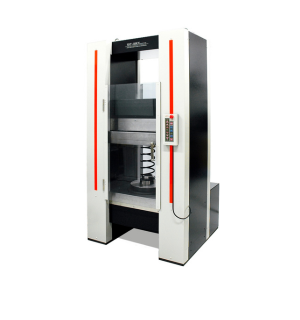

SUSPENSION SPRING TESTER ‒ SST Series

The SST Series is a specialized testing system for suspension springs, evolved from our automatic spring tester and Side Force Unit (SFU Series). It enables easy measurement of center of gravity, side force, and rotational moment during design or production.

Ideal for managing spring characteristics such as side force and balance in automotive suspension applications.

The SST-D model features laser sensors to capture coil deformation during compression, with 3D shape data also recordable.

SUSPENSION SPRING TESTER

SST-20KN / 50KN

SST-D WITH OUTER DIAMETER MEASUREMENT

SST-D20KN / 50KN

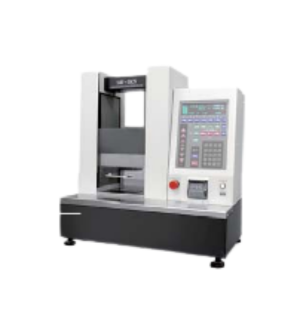

SIDE FORCE SPRING TESTER ‒ SFT Series

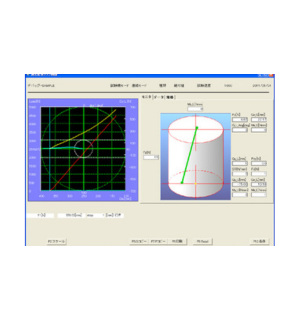

The SFT Series builds on the capabilities of the PRO Series spring testers, adding measurement of side forces in both X and Y directions, as well as the center of gravity and moment on the upper and lower spring surfaces. (PC software included as standard) Side force and center of gravity during compression can be visually monitored in real time through intuitive graphical displays.

SIDE FORCE SPRING TESTER/ VALVE SPRING TESTER

SFT-1KN / 5KN

SFT-V1KN / V5KN

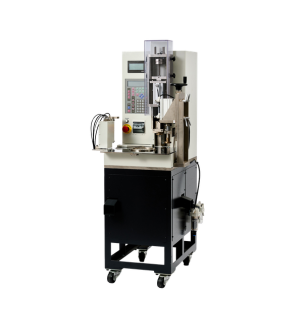

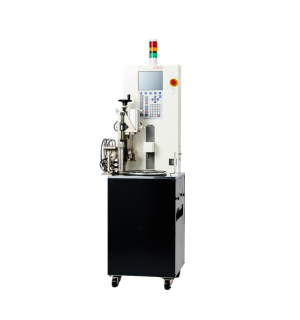

SPRING SORTING MACHINE ‒ ACE Series

ACE-F Series ‒ Fully Automatic Spring Sorting with High Accuracy With ultra-high resolution (1/100,000), fast and stable A/D conversion, ard cylinder-driven operation, it enables high-speed, high-precision sorting. In single-step testing, up to 50 springs per minute can be sorted̶up to 24,000 un ts in 8 hours of continuous operation.

The tester also supports 1- to 3-step testing using ball screws and LM guides. Part feeders and loading units are available as options.

SPRING SORTING MACHINE

ACE-P10N / 50N/ 100N / 500N/1KN

HI-SPEED SPRING SORTING MACHINE

ACE-F100N / 500N / 1KN

QUALITY CONTROL PC SOFTWARE ‒ BQC-02

Enhances part number management for spring testers and displays real-time quality control data such as X-bar R charts, histograms, Cp, and Cpk values.

Measurement results are automatically saved for complete history tracking. With internal network setup, you can monitor on-site quality remotely from the office.
