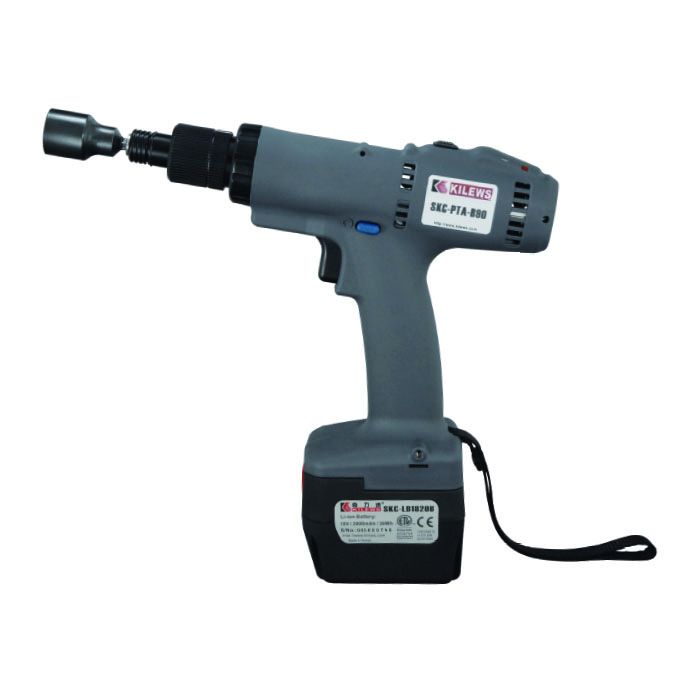

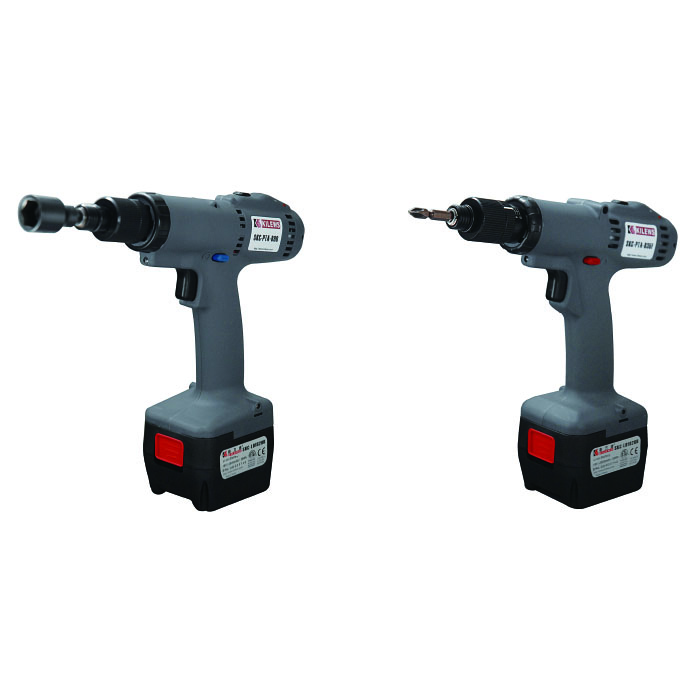

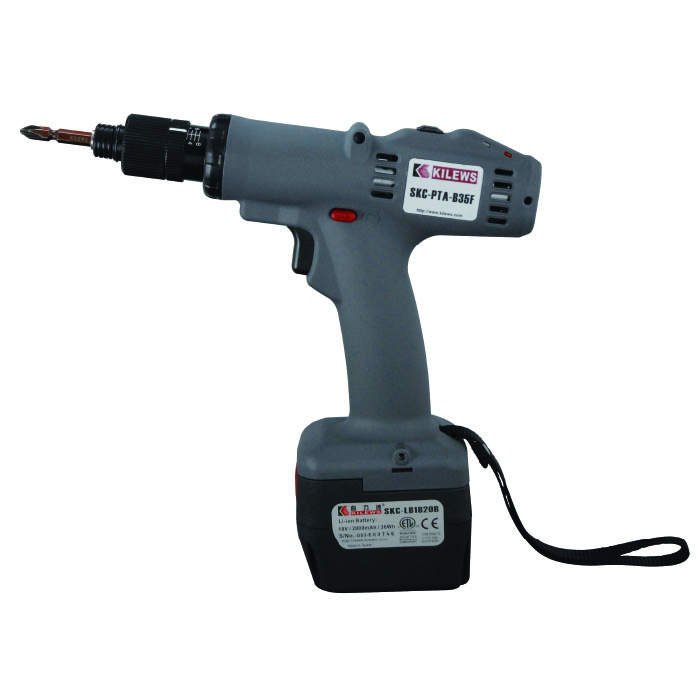

SKC-PTA-B120/B90/B50F/B60/B35/B35F
-
High performance brushless motor with constant speed and 2 years warranty.
-
Exernal torque adjustment and low recoil design.
- User-friendly design such as LED illumination and 10 degress elevation design.
-
The cordless battery screwdriver has built-in indicating light to indicate the fasten procedure.
The green LED will light up and give a short beep for every fastening screw. Conversely, the
red LED will light up and give a long beep if the screw is fastened incorrectly or NG.
- Adopting Japanese high performance Li-ion (Li-Mn) battery which has longest standby time and lifetime.
-
Users can select HI/LO speed via the electric switch to meet the operation requirement..
- In order to extend battery operating time,
the cordless battery screwdriver will turn to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save electricity
and extend battery life time.
- SKP-PTA-B120/B90 output stronger torque, therefore include with side pistol grip to maintain operating security.
SKC-PTA-B120/B90/B50F/B60/B35/B35F
Product Spec
Model |
SKC-PTA-B120 |
SKC-PTA-B90 |
SKC-PTA-B50F |
SKC-PTA-B60 |
SKC-PTA-B35 |
SKC-PTA-B35F |
Input Voltage |
18V |

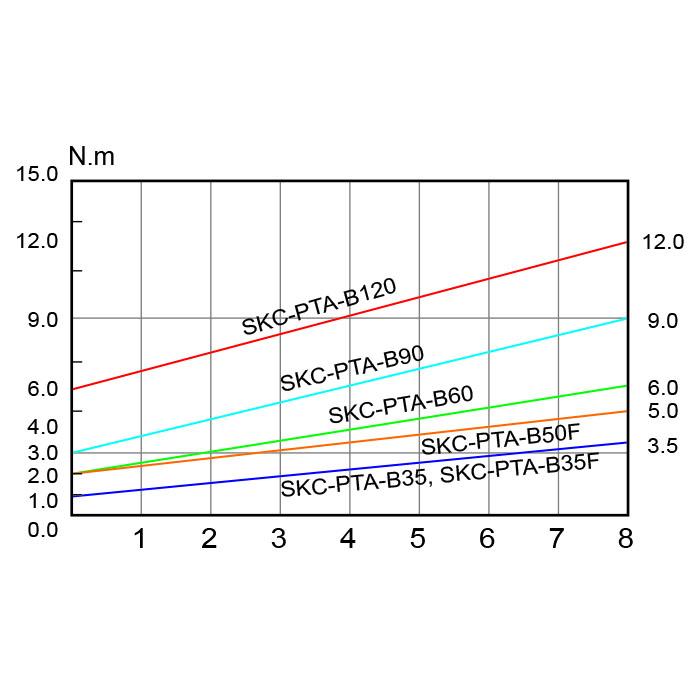

Torque (N.m) |
6-12 |
3-9 |
2-5 |
2-6 |
1-3.5 |
1-3.5 |
Repeatable Torque Accuracy |
±3% |
Torque Adjustment |
Extemal Stepless |
Free Speed (r.p.m) ±10% |
HI |
880 |
1000 |
2200 |
1000 |
1000 |
2000 |
LO |
570 |
650 |
1400 |
650 |
650 |
1300 |
Weight (kg) |
1.1 (Without Battery) |
0.79 (Without Battery) |

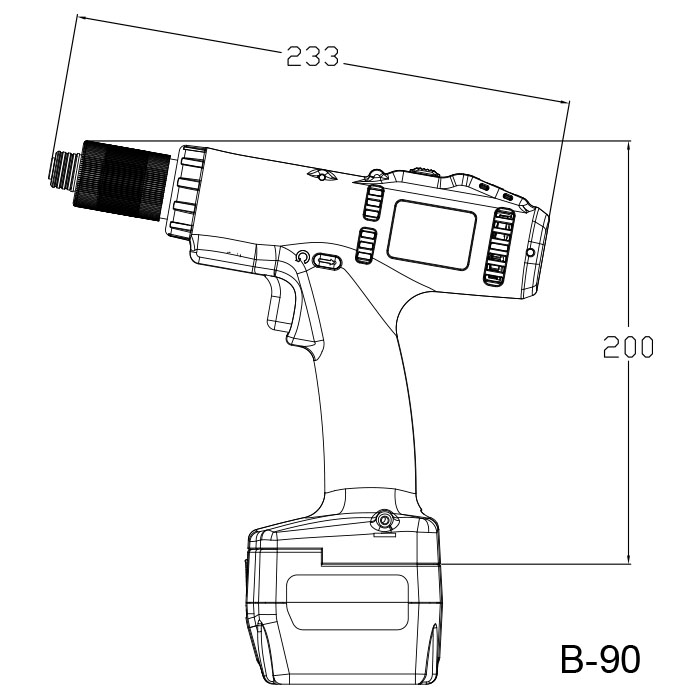

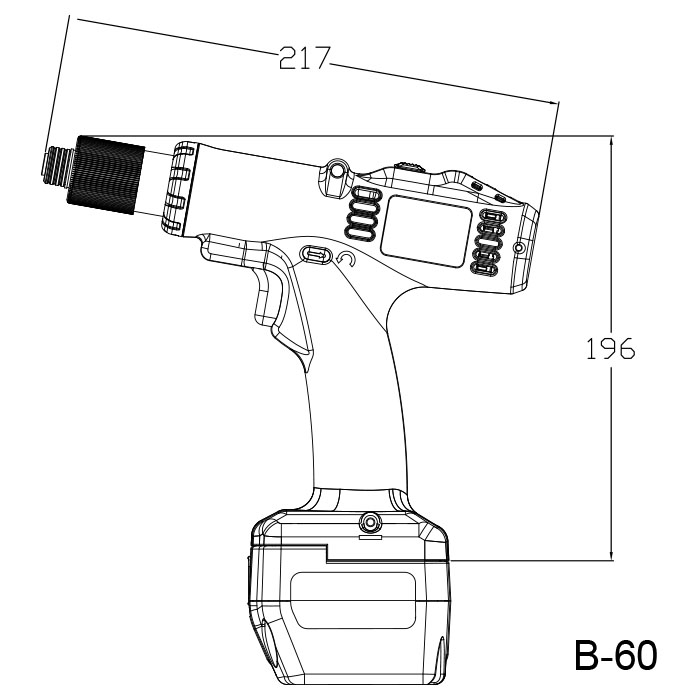

Size (mm) |
233*200 (L*H Without Battery) |
217*196 (L*H Without Battery) |
Applicable Battery |
SKC-LB1820B |
Applicable Charge Station |
SKC-P80W-D |
Applicable Torque Meter |
KTM-150 |
Applicable Bit Type |
|

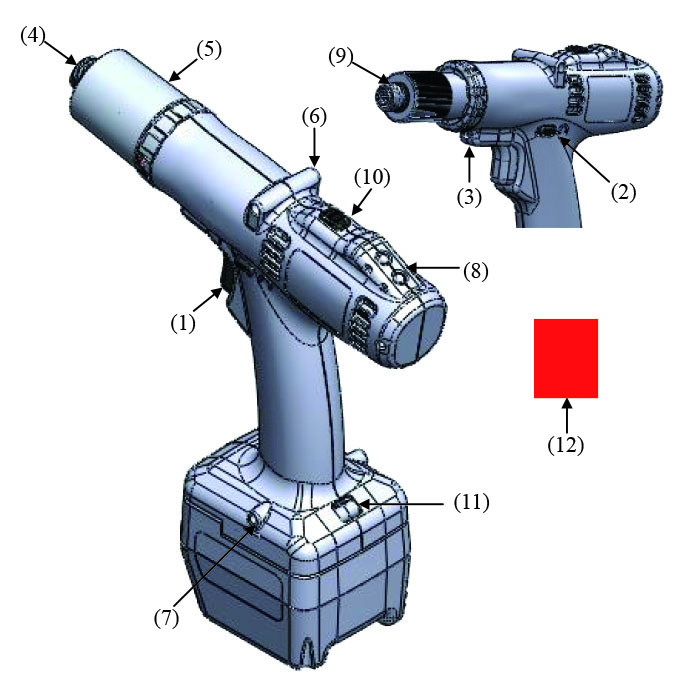

Function Name Table
No. |
Deseription |
No. |
Deseription |
(1) |
Trigger Switch |
(7) |
Switch Hook |
(2) |
Forward/Reverse Lever |
(8) |
Indiction Light |
(3) |
LED Light |
(9) |
Torque Wrench |
(4) |
Bit Sleeve |
(10) |
Speed Adjustment |
(5) |
Torque Ring |
(11) |
Wrist Strap Hole |
(6) |
Driver Hook Hole |
|
|
