a. Internal Torque Adjustment Type
SKC-PTA-220/150/120/80 -
b. External Torque Adjustment Type
SKC-PTA-B120/B90/B50F/B60/B35/B35F -
c. Counter with Wifi Transmission Type
c1 - SKC-PTA-BE120/BE90/BE50F/BE30
c2 - KL-WSCBSN -
d. Angle Type
SKC-PTA-L80F/L150F/L300/L450/L600 -
e. Straight Type
SKC-PTA-BS20/BS30/BS45
-
a. Charge Station
SKC-P120W/P80W/80W/P80W-D/P50W-S -
b. Rechargeable Batteries
SKC-LB1820/1840/1820B/1025S
SKC-PTI-300,250,160,100,50
- The high power brushless motor was researched, developed, and produced by Kilews, with 1 year warranty.
- The best choice for industrial production and assembly with heavy instant beat, can reach 3800 times per min. Best-suited for fastening the big nut for heavy industrial.
- The maximum torque can reach to 250 N.m and applicable for heavy industry assembling.
- Adopting Japanese high performance Li-ion (Li-Mn) battery which has longest standby time and lifetime.
- The cordless battery screwdriver has beep alarm warning when the battery power capacity is low. The red LED will flicker when 20% left of battery power capacity and light up continuously when 10% left of battery power capacity. User can be reminded to replace the battery by the LED warning light.
- The user can base on the requirement to select HI/MID/LO torque forces via the electrical switch to prevent unnecessary hammer consumption.
- LED illumination, LED will light up while screwdriver is operating to help user to see the fastening object status and to make sure the screws are aimed to exact positions.
- In order to hold the cordless battery screwdriver comfortably, the shape is designed to be 19 degrees elevation and balanced as good ergonomic.
- In order to extend battery operating time, the cordless screwdriver will furn to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save electricity and extend battery life time.
- 5 steps of torque adjustment with LED indication. User can set torque output according to their requirement to prevent unnecessary hammer consumption. (SKC-PTI-100/50)
- Ergonomic grip design for comfort operation and reduce operator fatigue from long time operation. (SKC-PTI-100/50)

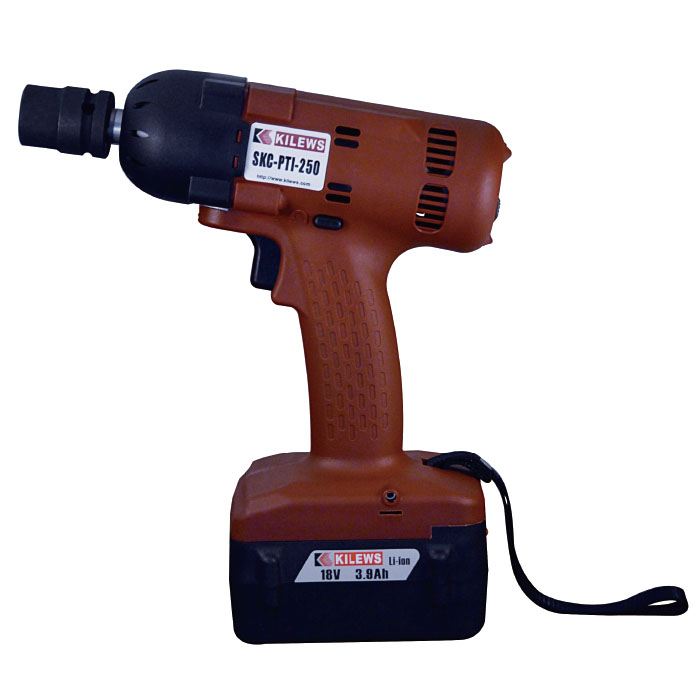

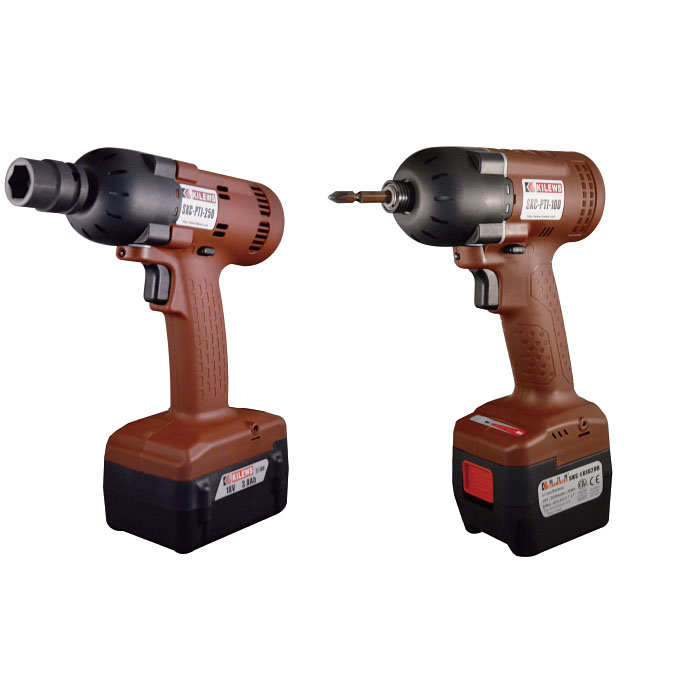

SKC-PTI-300,250,160,100,50
Product Spec
Model | SKC-PTI-250 | SKC-PTI-160 | |
Input Voltage | 18V | ||
Free Speed(r.p.m) ±10% | 0-2300 | 0-2100 | |
B.P.M | 0-3800 | 0-2800 | |
Torque (N.m) | 0-250 | 0-160 | |
Impact modes | HI | 0-250 | 0-160 |
MID | 0-160 | 0-120 | |
LO | 0-100 | 0-80 | |
Weight (kg) | 1.1 (Without Battery) | ||

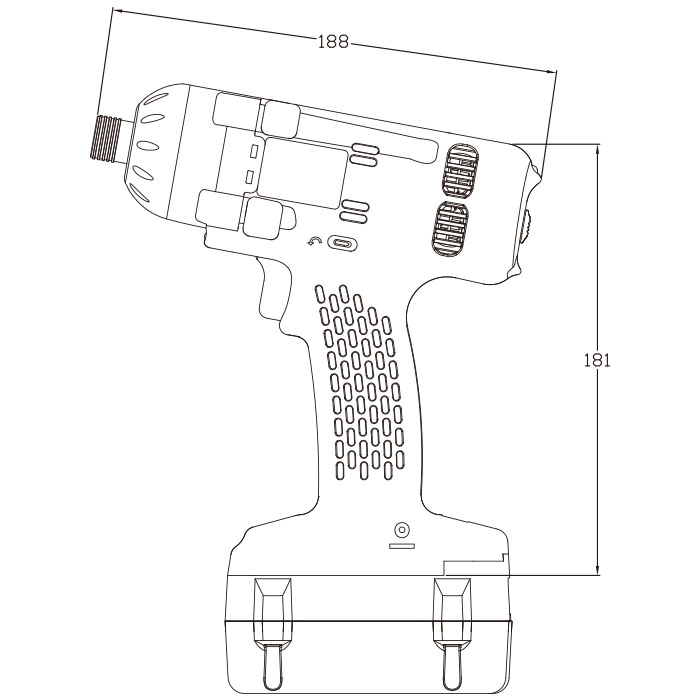

Size (mm) | 188*181 (lL * H Without Battery) | ||
Applicable Battery | SKC-LB1840 / SKC-LB1820 | ||
Applicable Charge Station | SKC-P120W / SKC-P80W / SKC-80W | ||
Applicable Bit Type |

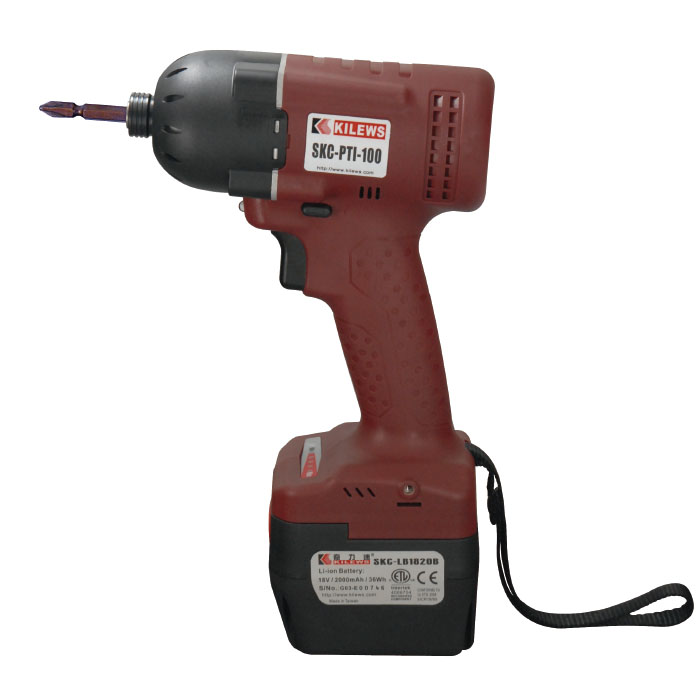

Mode | SKC-PTI-100 | SKC-PTI-50 | |
Input Voltage | 18V | 18V | |
Free Speed (r.p.m)±10% | 0-2300 | 0-2300 | |
B.P.M | 0-3000 | 0-3000 | |
Torque (N.m) | 0-100 |
0-50 | |
Impact modes | 1 | 0-20 | 0-7 |
2 | 0-40 | 0-15 | |
3 | 0-60 | 0-25 | |
4 | 0-80 | 0-35 | |
5 | 0-100 | 0-50 | |
Weight (kg) | 1.0 (Without Battery) | ||
Size (mm) | 155*195(L*H Without Battery) | ||
Applicable Battery | SKC-LB1820B | ||
Applicable Charge Station | SKC-P80W-D | ||
Applicable Bit Type |
