a. Internal Torque Adjustment Type
SKC-PTA-220/150/120/80 -
b. External Torque Adjustment Type
SKC-PTA-B120/B90/B50F/B60/B35/B35F -
c. Counter with Wifi Transmission Type
c1 - SKC-PTA-BE120/BE90/BE50F/BE30
c2 - KL-WSCBSN -
d. Angle Type
SKC-PTA-L80F/L150F/L300/L450/L600 -
e. Straight Type
SKC-PTA-BS20/BS30/BS45
-
a. Charge Station
SKC-P120W/P80W/80W/P80W-D/P50W-S -
b. Rechargeable Batteries
SKC-LB1820/1840/1820B/1025S
SKC-PTA-BS20/BS30/BS45
- The high power brushless motor was researched, developed and produced by Kilews, with 2 years warranty.
- The best choice of industrial assembly tool which can set the maximum torque up to 4.5 N.m, and the repeatable torque accuracy within ±3%.
- The cordless battery screwdriver has built-in indicating light to indicate the fasten procedure during operation. The green LED will light up and give a short beep for every fastening screw. Conversely, the red LED will light up and give a long beep if the screw is fastened incorrectly or NG.
- Users can select HI/LO speed via the electrical switch to meet the operation requirement.
- Excellent ergonomic design, in order to hold the cordless battery screwdriver comfortably.
- In order to extend battery operating time, the cordless battery screwdriver will tum to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save power and extend battery life time.

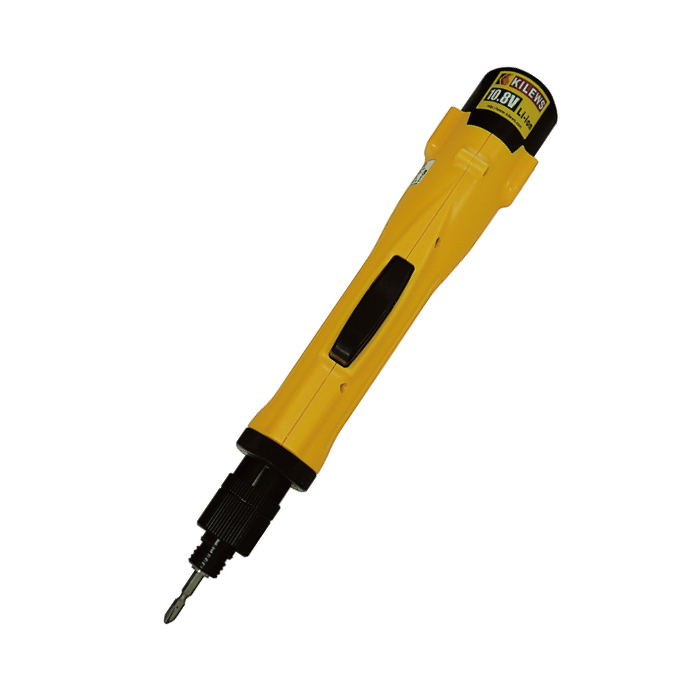

SKC-PTA-BS20/BS30/BS45
Product Spec
Mode | SKC-PTA-BS20 | SKC-PTA-BS30 | SKC-PTA-BS45 | |
Input Voltage | 10.8V |
|||
Torque (N.m) | 0.3-2.0 |
0.8-3.0 |
1.5-4.5 |
|
Repeatable Torque Accuracy | ±3% |
|||
Torque Adjustment | Extemal Stepless |
|||
Free Speed(r.p.m)±10$% | HI | 1200 |
700 |
|
LO | 850 |
500 |
||
Weight (kg) | 0.7 (Without Battery) |
|||

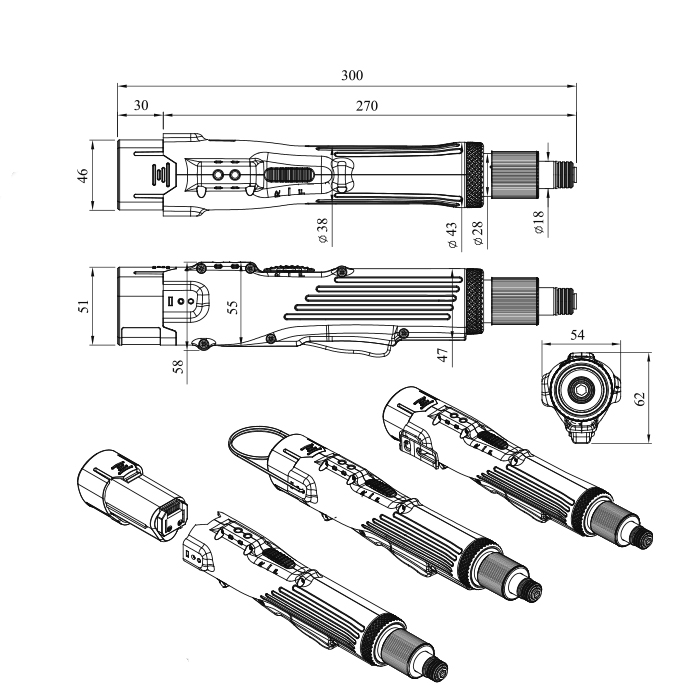

Size (mm) | 270 * 60 (L * H Without Battery) |
|||
Applicable Battery | SKC-LB1025S |
|||
Applicable Charge Station | SKC-P50W-S |
|||
Applicable Torque Meter | KTM-150 |
|||
Applicable Bit Type |
