a. Internal Torque Adjustment Type
SKC-PTA-220/150/120/80 -
b. External Torque Adjustment Type
SKC-PTA-B120/B90/B50F/B60/B35/B35F -
c. Counter with Wifi Transmission Type
c1 - SKC-PTA-BE120/BE90/BE50F/BE30
c2 - KL-WSCBSN -
d. Angle Type
SKC-PTA-L80F/L150F/L300/L450/L600 -
e. Straight Type
SKC-PTA-BS20/BS30/BS45
-
a. Charge Station
SKC-P120W/P80W/80W/P80W-D/P50W-S -
b. Rechargeable Batteries
SKC-LB1820/1840/1820B/1025S

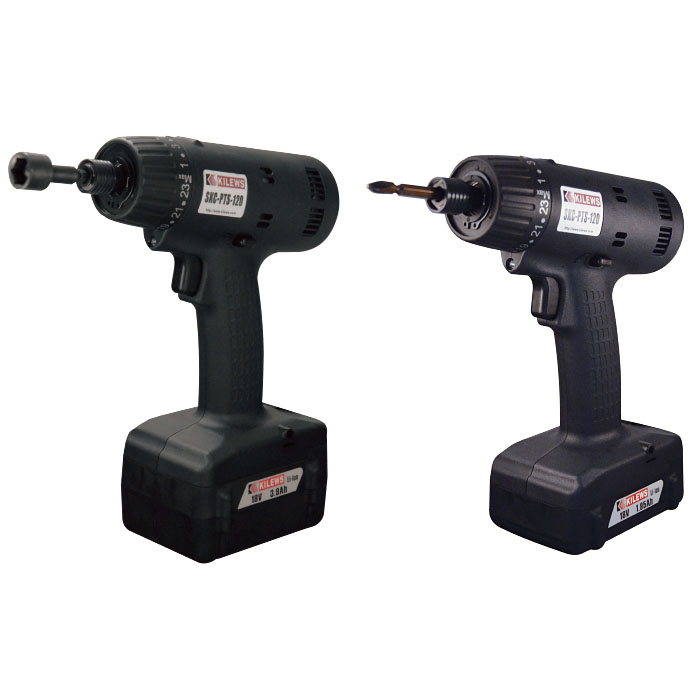

SKC-PTS-120/80/50
- The high power brushless motor was researched, developed and produced by Kilews, with 1 year warranty.
- The best choice of industrial tool which can set the maximum torque up to 12 N.m, and the repeatable torque accuracy within ±10%.
- Adopting Japanese high performance Li-ion (Li-Mn) battery which has longest standby time and lifetime.
- The cordless battery screwdriver has beep alarm warning when the battery power capacity is low. The red LED will flicker when 20% left of battery power capacity and light up continuously when 10% left of battery power capacity. User can be reminded to replace the battery by the LED warning light.
- The cordless battery screwdriver has built-in indicating light to lindicate the fasten procedure. The green LED will light up and give a short beep warning for every fastening screw. Conversely, the red LED will light up and give a long beep warning if the screw is fastened incorrectly or NG.
- LED illumination , LED will light up while screwdriver is operating to help user to see the fastening object status and to make sure the screws are aimed to exact positions.
- Users can select HI/IO speed via the electric switch to meet the operation requirement.
- In order to hold the cordless battery screwdriver comfortably, the shape is designed to be 10 degrees elevation and balanced as good ergonomic.
- In order to extend battery operating time, the cordless battery screwdriver will turn to sleep mode automatically when it idled over 3 seconds. Sleep mode helps to save electicity and extend battery life time.
SKC-PTS-120/80/50
Product Spec
Model | SKC-PTS-120 | SKC-PTS-80 | SKC-PTS-50 | |
Input Voltage | 18V | |||
Torque (N.m) | 6-12 | 4-8 | 1.5-5 | |
Repeatable Torque Accuracy | ±10% | |||
Torque Adjustment | 23+Max Steps | |||
Free Speed (r.p.m) ±10% | HI | 700 | 1200 | 2200 |
MID | 500 | 900 | 1600 | |
LO | 350 | 600 | 1100 | |
Weight (kg) | 1.0 (Without Battery) | |||

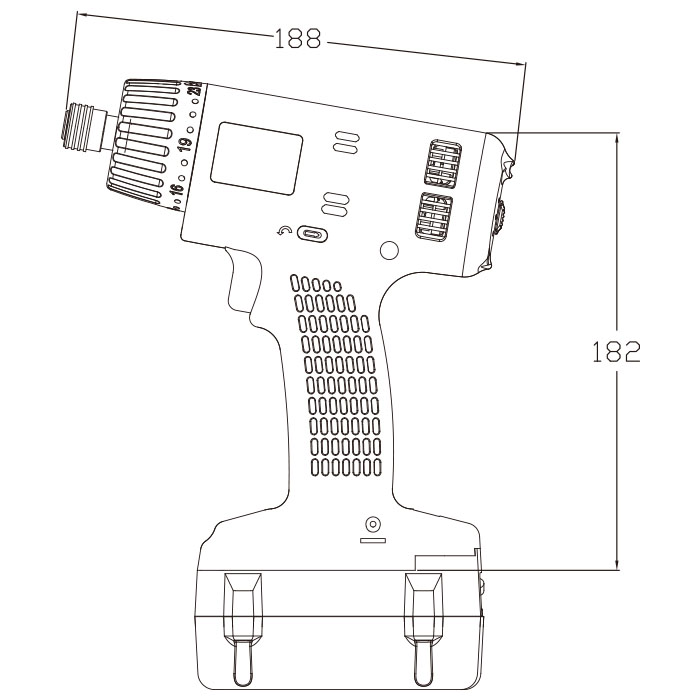

Size (mm) | 188*182 (lL * H Without Battery) | |||
Applicable Battery | SKC-LB1820 / SKC-LB1840 | |||
Applicable Charge Station | SKC-P120W / SKC-P80W / SKC-80W | |||
Applicable Torque Meter | KTM-4B-25 | |||
Applicable Bit Type |
