MICRONTECH ESTIC DC NUTRUNNER AXIS CONTROLLER INPUT AND OUTPUT

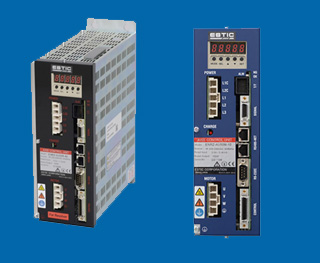

Microntech Estic Axis controller has many features , this controller is must to use with every spindle . We can also make it master if needed for machine design . To make a process completely error free process, it is mandatory to use signals for input and output to decide a pattern of fastening and operation like when tool will be start or ready and when it will give OK signal and all . So it is mandatory to have INPUT/ OUTPUT port in controller , so Microntech Estic Axis controller has also PI/O port which includes input and output signals .

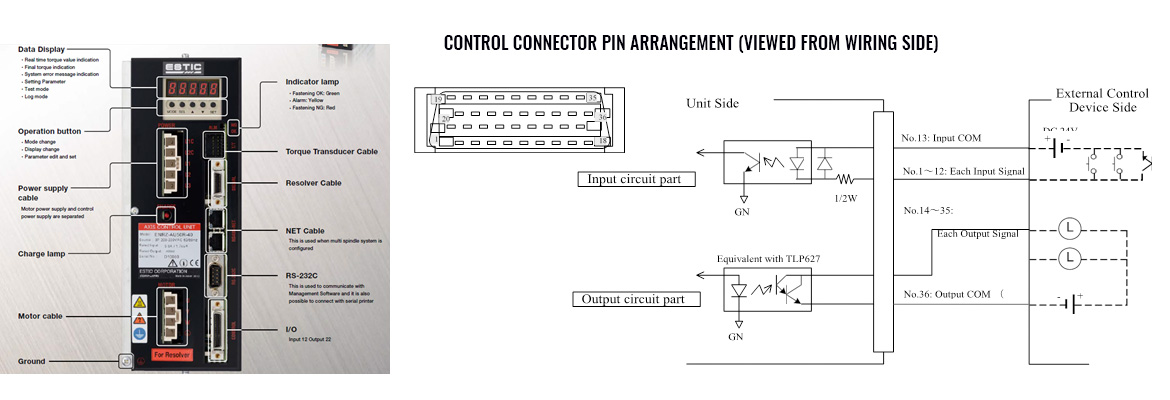

Microntech Estic Axis controller has 12 Inputs and one point for Input COM , and 22 Outputs and one point for output COM . Input signals include Program selection , Program start , data Out command etc. signals and output signals include Ready , busy , Ok , NG etc signals as shown in below picture . But we can only give Positive 24V DC power to Input COM means we can only do source wiring and in Output COM we can only give Negative 24VDC means we can only do sink wiring .
| External input signal | ||
|---|---|---|
| No. | Signal name | Change |
| 1. | RESET | Allowed |
| 2. | PROGRAM PULSE START | Allowed |
| 3. | EXTERNAL STOP | Allowed |
| 4. | DATA OUT COMMAND | Allowed |
| 5. | BYPASS | Allowed |
| 6. | PROGRAM SELECTION 1 | Allowed |
| 7. | PROGRAM SELECTION 2 | Allowed |
| 8. | PROGRAM SELECTION 4 | Allowed |
| 9. | PROGRAM SELECTION 8 | Allowed |
| 10. | PROGRAM SELECTION 16 | Allowed |
| 11. | PROGRAM SELECTION 32 | Allowed |
| 12. | PROGRAM SELECTION 64 | Allowed |
| 13. | CONTROL POWER COM+ (+24VDC) | |
| External output signal | ||
|---|---|---|
| No. | Signal name | Change |
| 1. | READY | Allowed |
| 2. | BUSY | Allowed |
| 3. | SYSTEM ERROR | Allowed |
| 4. | TIME NG | Allowed |
| 5. | COMP | Allowed |
| 6. | FASTENING OK | Allowed |
| 7. | TORQUE HIGH NG | Allowed |
| 8. | TORQUE LOW NG | Allowed |
| 9. | ANGLE HIGH NG | Allowed |
| 10. | ANGLE LOW NG | Allowed |
| 11. | TORQUE RATE NG | Allowed |
| 12. | RUNDOWN MONITOR NG | Allowed |
| 13. | PROGRAM ANS. 1 | Allowed |
| 14. | PROGRAM ANS. 2 | Allowed |
| 15. | PROGRAM ANS. 4 | Allowed |
| 16. | PROGRAM ANS. 8 | Allowed |
| 17. | PROGRAM ANS. 16 | Allowed |
| 18. | PROGRAM ANS. 32 | Allowed |
| 19. | PROGRAM ANS. 64 | Allowed |
| 20. | BATTERY LOW | Allowed |
| 21. | DATA OUT FAILURE | Allowed |
| 22. | OPERATING BYPASS | Allowed |
| 23. | CONTROL POWER COM-(0V) | Allowed |
Microntech Engineers ltd. is the face of of ESTIC Products in India . Microntech founded in 1989 , from last 31 Years they are giving complete assembly solution to their customers . Microntech is situated in 11 cities in India, head office situated in Noida . They are manufacturer , exporter and dealer of wide range of fastening tools . Microntech have huge ranging of products close to 5000 products includes Dynamic Torque Testers , High Quality ESTIC DC Nutrunners , Torque Wrenches etc . They have expert team which provide reliable and genuine solution to customers that’s why Microntech is very known in market . Microntech is always appreciated in the market for some of the appreciable points like they always save the Resources , gives Optimally Priced , gives Right set of Features and for on time service and quick solution . They have skilled and well trained engineers for ESTIC Products who can understand the product better , gives right solution for right application . Microntech provides ESTIC Products with automated system in All over India on large scale and handling queries and services very well. For requirements contact them at sales@microntechgroup.com or visit website at www.microntechgroup.com.
