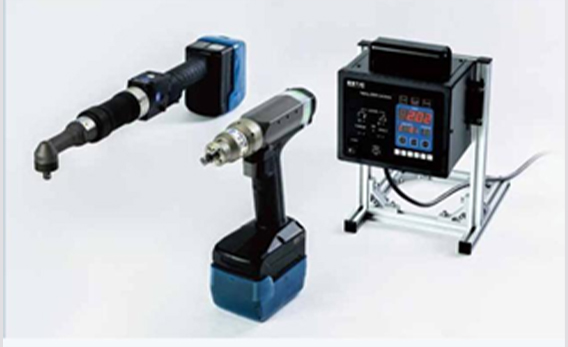

Microntech Estic DC Nutrunner Wireless Transducerised Tools
Microntech Estic DC Nutrunner now also available in wireless technology with highly durable transducer inside it . Through their years of experience Estic make this product which gives effortless tightening and high comfort to the user . It has some great features below :
- ● ESTIC uses EWT (ESTIC WIRELESS TECHNOLOGY) on their Handy2000 series fastening tool in the world, and now available in cordless tool.
- ● This cordless nutrunner have advantages such as high speed, low electrical consumption, long distance. Frequency Band 2.4GHz (2405-2480MHz). Antenna Power 0.9mW because ESTIC WIRELESS TECHNOLOGY is complied with IEEE802.15.4.
- ● Microntech Estic DC Cordless Tool performance is tested with the equipment complied with ISO5393
- ● Its Fastening accuracy 3σ/ x ≤ 3% F.S. (on direct mode), 3σ/ x ≤ 5% F.S. (on pulse mode, Right Angle type)
- ● Manufacturing in accordance of ISO9001
- ● Its Power consumption is 1/20 compared to conventional pneumatic tools
- ● No oil mist and noise reduced
- ● Complied EC Directive
- ● Reaction force is also remarkably reduced with patented pulse drive technology

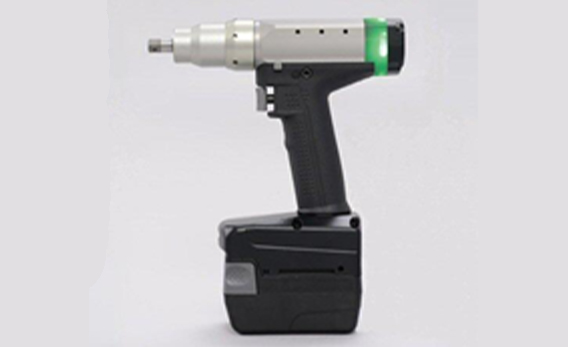

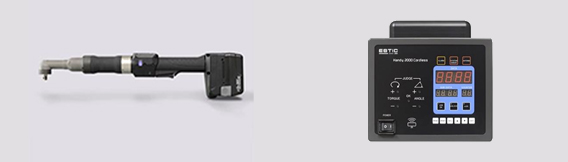

Microntech Estic New cordless series are very unique in the market , they have the big range of tools & cover huge torque also . Like in pistol type they have the EHC-L0026-PZ1 , this tool is for 5.2-26Nm & have 936 Rpm , they don’t have any reaction . Next is angular cordless tool which is available upto 100 Nm whose model is EHC-T2100-AZ1 , this tool is for 20-100Nm & have 610 RPM , we can operate these all tool by single hand.

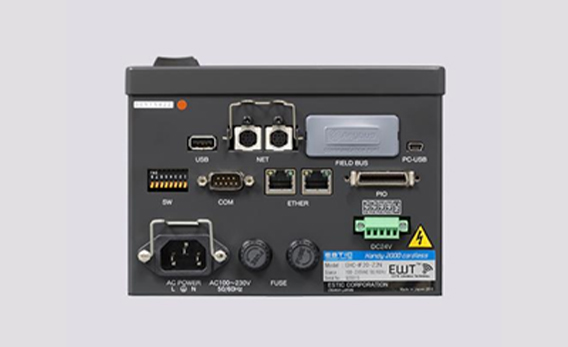

Microntech Estic Cordless DC Nutrunner controller have all the same features as Handy controller have . This controller have all the data transfer communication options which is mandatory to have. This controller have two Ethernet ports , one serial port (RS232C) , one PC-USB port and one USB(A type) port . These all are the common ports which are very mandatory to have . Microntech Estic Cordless DC Nutrunner also have all the Fieldbus communication also like Internet IP , DeviceNet , Profibus , Profinet , EtherCAT and CC-link etc. This controller have one extra Ethernet port . We can transfer all the data through these ports , we can program the tool through these ports , can take the data on PLC or to server . Every communication port has its own range of data transfer and own feature of data transfer . Setting of all the communication port also different . So Microntech Estic Cordless DC Nutrunner consist all the useful options of data transfer .

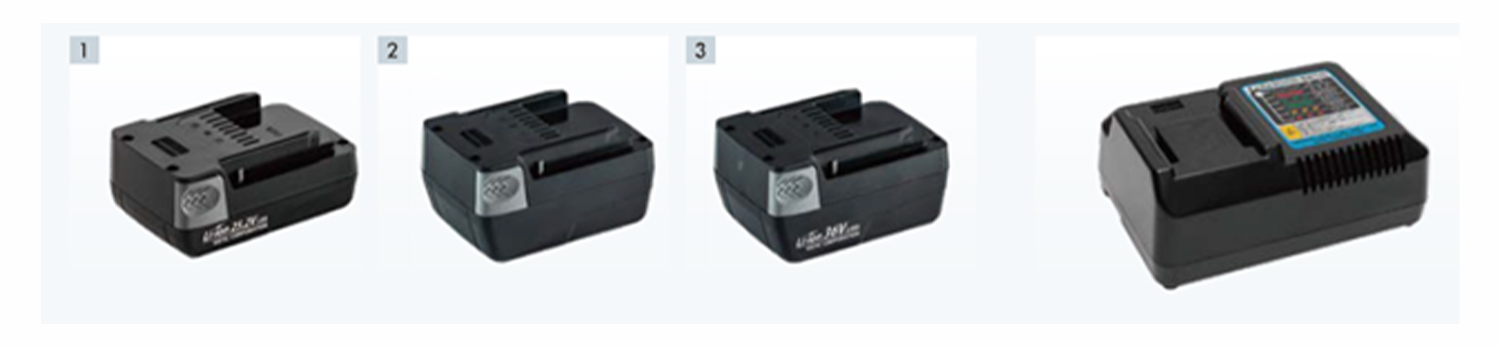

Microntech Estic Cordless DC Nutrunner has various types of battery models categorized according to power . All the batteries have different current and voltage rating categorized according to tool model . Microntech Estic Cordless DC Nutrunner have three types of batteries :
- • BPL-2510ES whose voltage rating is 25.2VDC , Ampere hour rating is 1.0Ah , weight is 0.40Kg , this battery is compatible with Microntech Estic Cordless Pistol tool , charging time of this battery is 45 minutes.
- • BPL-2520ES whose voltage rating is 25.2VDC , Ampere hour rating is 2.0Ah , weight is 0.54Kg , this battery is also compatible with Microntech Estic Cordless Pistol tool , charging time of this battery is 75 minutes.
- • BPL-3620ES whose voltage rating is 36VDC , Ampere hour rating is 2.0Ah , weight is 0.68Kg , this battery is compatible with Microntech Estic Cordless Right angle tool , charging time of this battery is 90 minutes.
