‘Innovative’ Power Torque Series Electric Screwdriver (Power Torque Series)

Introduction:

Features:

  • 1. Brushless motor
  • 2. Stable high torque output
  • 3. Applicable for the industry of electrical engineering
  • 4. Can replace pneumatic screwdriver
  • 5. Max torque can reach up to 18N.m
  • 6. I/O production management

Power Torque Series Models

  • 1. SKD-B500 series (B512L/P, B512LF/PF & B517LF/PF, B519L/P)
  • 2. SKD-B800 series (B830L/P, B830LF/PF & B850L/P, B850LF/PF)
  • 3. SKD-RBN series (RB60L/P, RB90L/P, RB120L/P & RB180L/P)
  • 4. SKD-TBN series (TB60L, TB90L, TB120L & TB180L)

With Brushless Screw Counter:

  • 4. SKD-RBC series (RBC60L/P, RBC90L/P, RBC120L/P & RBC180L/P)
  • 5. SKD-TBC series (TBC60L, TBC90L, TBC120L & TBC180L)
  • 6. SKD-BC800 series (BC830L/P, BC830LF/PF & BC850L/P, BC850LF/PF)
  • 7. SKD-BE800 series [Build-in counter] (BE830L/P, BE830LF/PF & BE850L/P, BE850LF/PF)

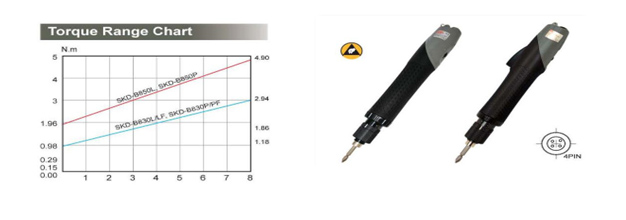

SKD-B500 & 800 Series

  • High R.P.M. with high Torque
  • Maximum speed can reach 2000r.p.m
  • Noise-free & low voltage

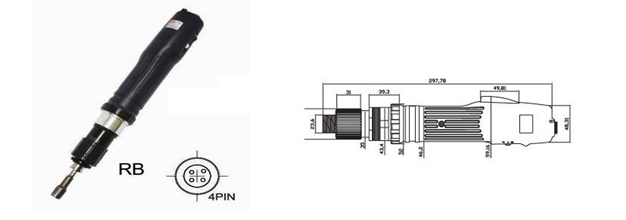

    • SKD-RB (L/P TYPE) Series

  • Brushless with clutch type
  • RB series can reach 50N.m
  • Suitable for assembling industrial products
  • Automobile parts assembly production
  • May be collaborated with auxiliary arm for easy operation

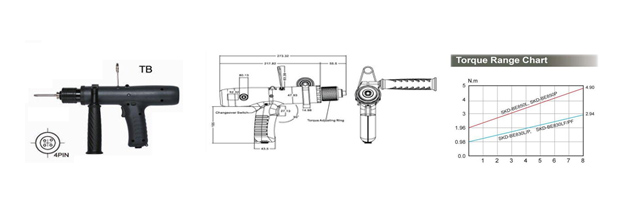

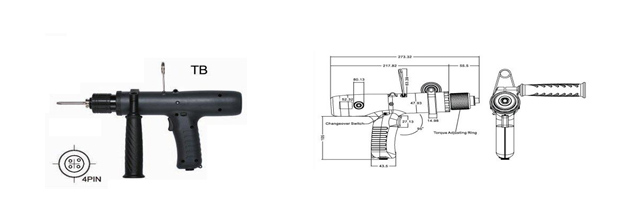

    • SKD-TB (L TYPE) Series

  • Best fit to assemble high torque products
  • Torque for TB series can reach up to 18N.m.
  • Can replace the disadvantages of pneumatic screwdriver

    • SKD-BE800 Series

  • Brushless screwdriver with built-in counter
  • Can program functions such as start-time, stop-time, and count number & etc.
  • Patent is currently in progress

    • Power Controller

    Power supply SKP-40B
  • Support all Power Torque Series Screwdriver
  • DC32V / DC40V
    • Power torque w/ counter SKP-BC40HL
  • Displaying the number of unfinished screw counts can prevent the operation error from neglect fastening screw
  • With slow-start control
  • I/O function for production management

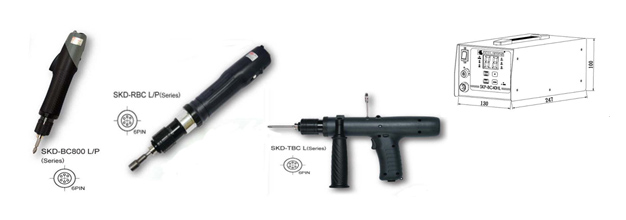

    • SKD-BC800 & RBC & TBC Series

    SKD-BC800 / RBC / TBC Series can be matched with smart counter SKP-BC40HL. Complete all the feature functions to make your work perfect.

    Advantages:

    Eco-friendly : Brushless, no carbon powder pollution, lower noise, easy to maintain.

    Precision & Steady : With clutch, be free from fatigue under long-working hours.

    High Torque : Power torque series – 1~50N.m, can replace pneumatic screwdrivers.

    Impressive breakthrough : SKD-B800 series – can reach high torque and high speed, much more efficient.

    Counter & PLC : SKP-BC40HL – displaying the number of unfinished screw counts to prevent operation error & include I/O production management.

    Application:

    Assembly for Motor, Appliance or Automotive parts which required higher torque range 1~18 N.m

  • Electrical Engineering
  • White Goods
  • Automobile Industry

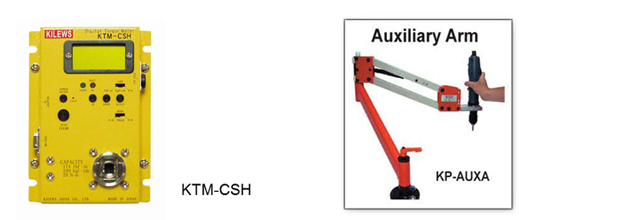

    • Accessories:

    Torque Meter KTM-CSH

  • Widely measuring range 3~20N.m

    • Auxiliary Arm KP-AUXA + KP-VAR

  • Provide with the rocker arm, enable to revolve on 360 degree
  • Main shaft can be extended to maximum 830mm

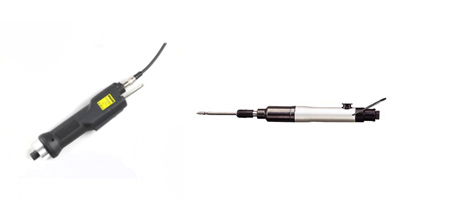

    • KILEWS Advantages vs Competing Brands
    KILEWS vs. ‘K’ Brand Electric Screwdriver

    • 1. Have clutch for screwdriver
    • 2. Is brushless
    • 3. Repeatable Torque Accurancy : ±5%
    • 4. Low reaction

    KILEWS vs. ‘U’ Brand Pneumatic Screwdriver

    • 1. Less noise and convenient
    • 2. I/O function that benefit in production management
    • 3. Easier to repair than pneumatic tools and systems
    • 4. Repeatable torque accuracy is ±5%
