Auxiliary Arm KP Series

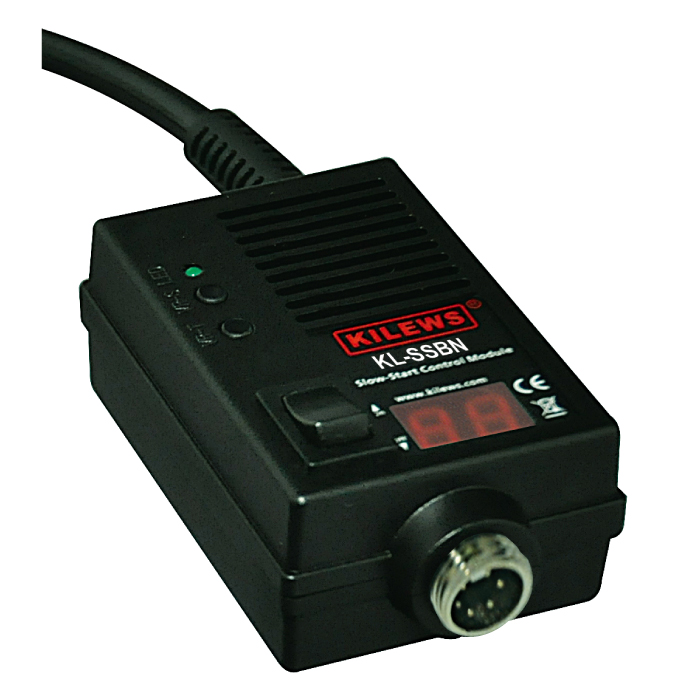

1.BYPASS: Automatically disable slow start function when screwdriver in reverse rotation, raiser to reverse screws.
2.Adjustable slow start speed from 30% to 100% of normal speed, slow start level setting from L1-L2-L3….L9-L0
3.Provide output start signal/ break signal/ forward and reverse signal with MOS relay switch.
4.Compatible with KILEWS Brushless DC SKD-BN series.
5.Slow start time can be set from 0.1 S up to 9.9 second.
6.Compatible with KILEWS Brushless DC SKD-BN series.
1.Slow Start Time(0.0~9.9 second)
2.Slow Start Speed Level (30%~100% of normal speed, L0-L9)
3.Operation Time(0.0-9.9 second).
4.Target Reached Confirm (enable / disable).
5.Slow start time can be set from 0.1 S up to 9.9 second.
6.External Start Input Control.
7.External Reverse Input Control.
8.Signal output (Start, Stop, Reverse).

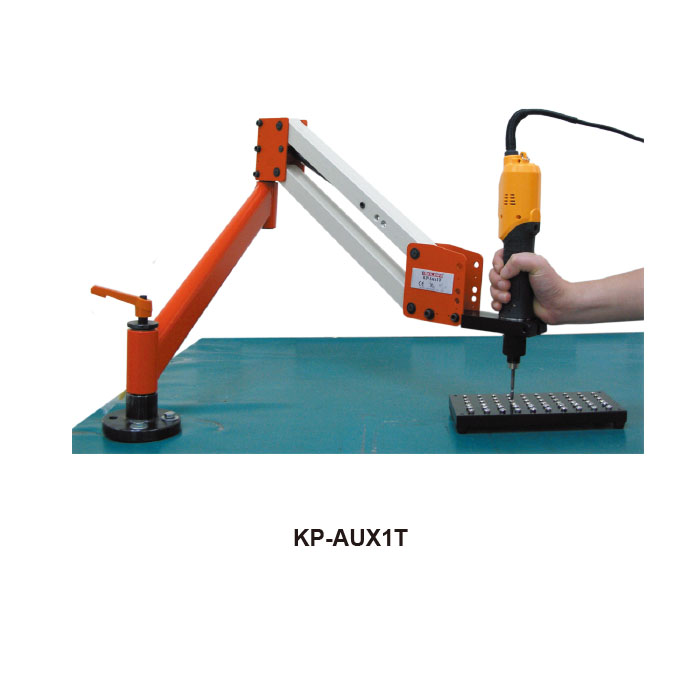

KP-AUX1T
1.Provide with the rocker arm, enable to revolve on 360 degrees.
2.Main shaft can be extended to maximum 830mm.
3.Power arm inside includes nitrogen gas stick, allow user to grab the arm easily, automatic lift up to position after finishing the work.
4..Easy to assemble and disassemble.
5.Optional accessory KP-VA1, KP-VAR(90 degree adapter) is available for user to adjust angle in accordance with the object to be fastened.

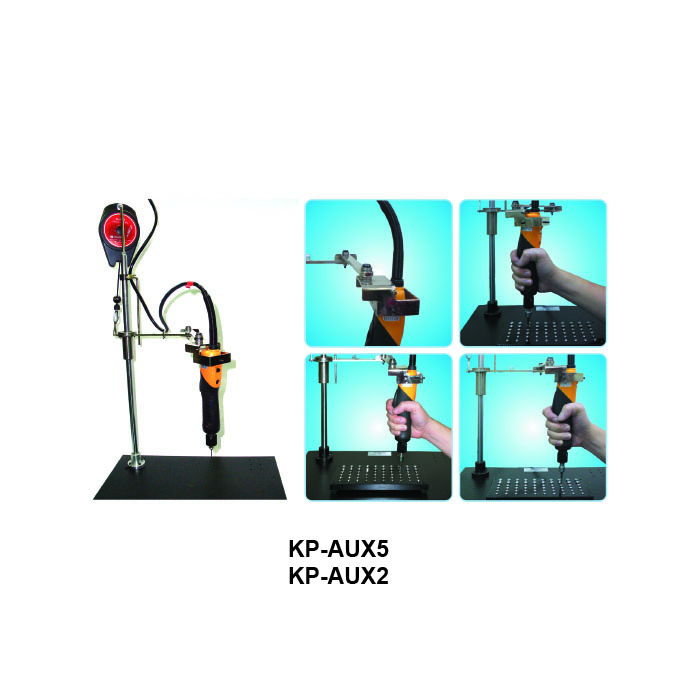

KP-AUX2, KP-AUX5
1.Main shaft can be extended to maximum 340mm.
2.Steady bearing in horizontal direction for screwdriver to act in vertical precisely.
3.Utilize KL-1200 to suspend the spring hoist vertically and capable of making adjustment at screwdriver’s weight.
4.Steady screwdriver with 4 sides of plate, the screwdriver head of horizontal and vertical position becomes more accurate.
5.Applying to low torque, high precision screwdriver, most suitable for small objects.
