SKD-TBN(K)/SKD-TBNK
(Apply for torque display series)

  • Whole series use brushless motor, no carbon pollution, and low noise motor operation. It is the best fit for assembling power torque products.

  • Assemble large-sized LED/LCD panel and home appliances. Tools can be hanged with spring balancer to lessen work fatigue.

  • SKD-TBN(K) series torque range can reach up to 0.3-18 N.m; SKD-TBN(K) series torque range can replace pneumatic screwdriver to avoid unstable torque due to the fluctuation of the air pressure. Also can prevent oil and noise pollution and achieve energy saving and more Eco-friendly.

  • SKD-TBN(K) series can be equipped with side handle, which can increase stable torque output, torque precision, and easier for user to operate.

  • Suitable for assembling large-scale work pieces in semi-automatic or full automatic assembly line. In particular, the most suitable for applications such as automotive industrial parts assembly, air conditioning, electricity, telecommunications, large appliances and medical equipment assembly.

  • Highly mobility, easy to operate, stable torque, high efficiency. Motor can be free from fatigue under long-working hours.

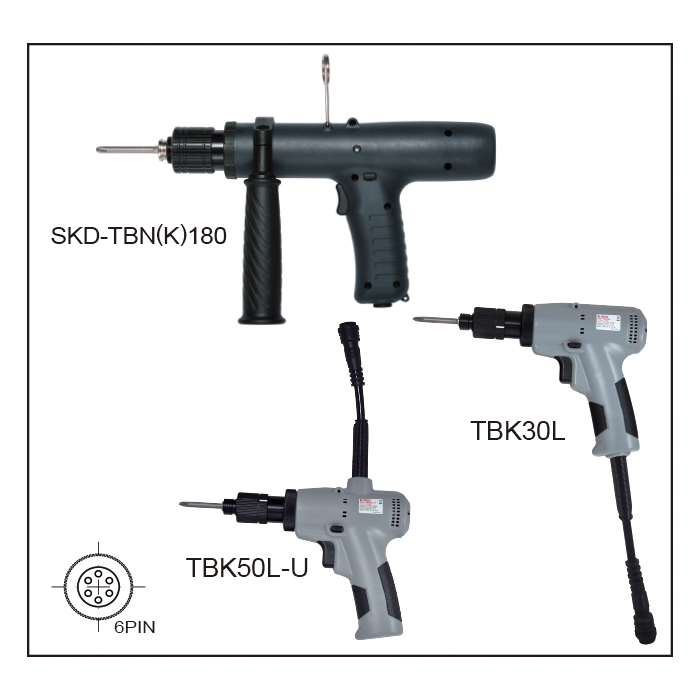

SKD-TBN Series photo



Product Spec

Model SKD-TBK20(U) SKD-TBK25LF(U) SKD-TBK30L(U) SKD-TBK50L(U) SKD-TBN60 SKD-TBN90 SKD-TBN120 SKD-TBN180
SKD-TBNK20L(U) SKD-TBNK25LF(U) SKD-TBK30L(U) SKD-TBNK50L(U) SKD-TBNK60 SKD-TBNK90 SKD-TBNK120 SKD-TBNK180
Input Voltage DC40V
Power Consumption 50W 50W 50W 50W 100W 120W 120W 200W

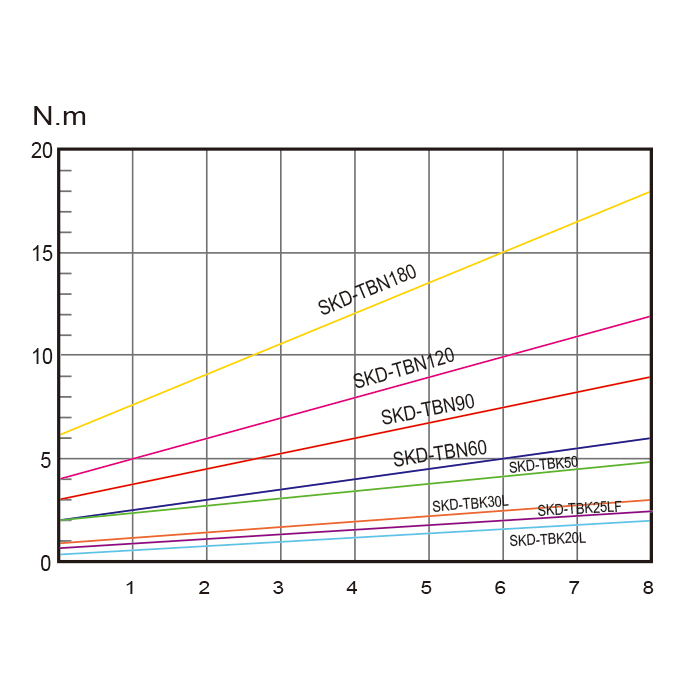

Torque(N.m) 0.3~2.0 0.8~2.5 0.8~3.0 2~5 2~6 3~9 4~12 6~18
Repeatable Torque Accuracy(%) ±3% ±5%
Torque Adjustment Stepless
Free Speed(r.p.m) HI 1200 2000 1200 700 1000 800 550 350
LO
Screw Size Dia(mm) Machine Screw 2.3~3.5 2.6~4.0 2.6~4.0 4.0~5.0 4.0~5.0 5.0~6.0 ≦8 ≦10
Tapping Screw 2.3~3.0 2.6~3.5 2.6~3.5 ≦4 ≦4 ≦4.5 ≦6 ≦8
Weight(kg) 0.7 1.2

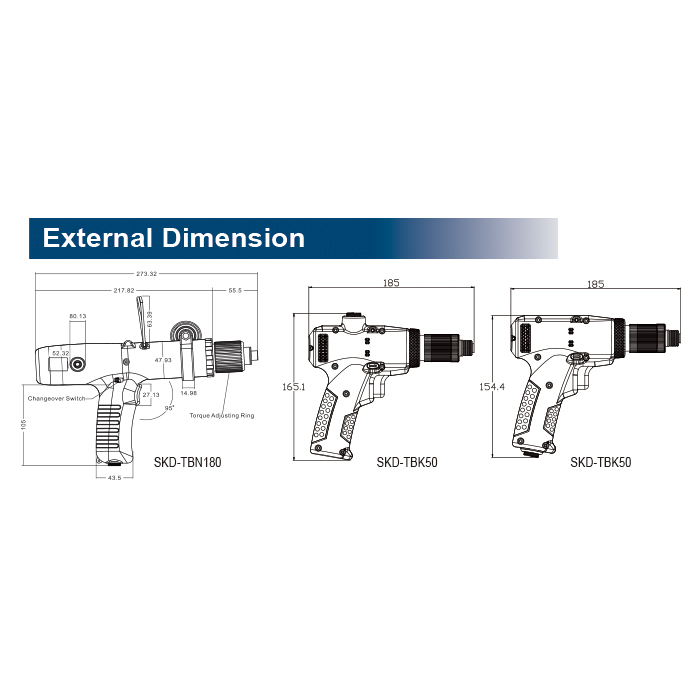

Length(mm) 185X150 274X160
ESD(Anti-Static)
CE V V
RoHS V V
Auxiliary Arm
Handle Grip V
Power Controller SKP-40B-HL(N) SKP-40B-HL-800(N)
Bit Type
