SKD-BN800/BNK800 Series
-
Brushless feature is applicable in a clean-room environmert. The output of torque is highly stable. It is not only a easy-operate equipment but also be operated continuously for a long period.
- One LED on the housing is to remind the operators that the screwdriver is connecting to the power controller.
- Besides, it is a non-carbon, low noise equipment and low voltage. There are variable torque’s ranges can be selected: 30kgf.cm / 2,000r.p.m and 50kgf.cm /1,000r.p.m.
- The best choice when composing the vertical’s internal parts and/or any large-size electric equipments, including home appliances, LED/LCD penels and etc.

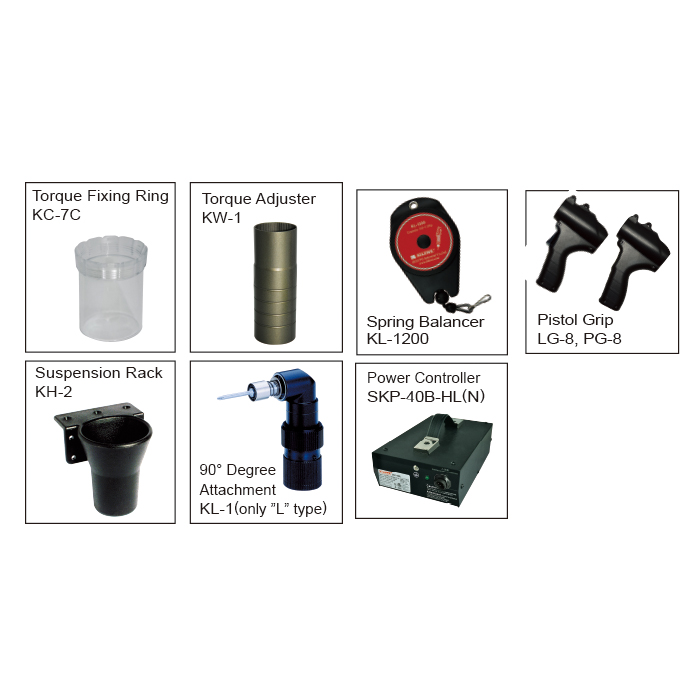

- Optional accessories spring balancer hoist or pistol grip can be added for easy and safe operation.

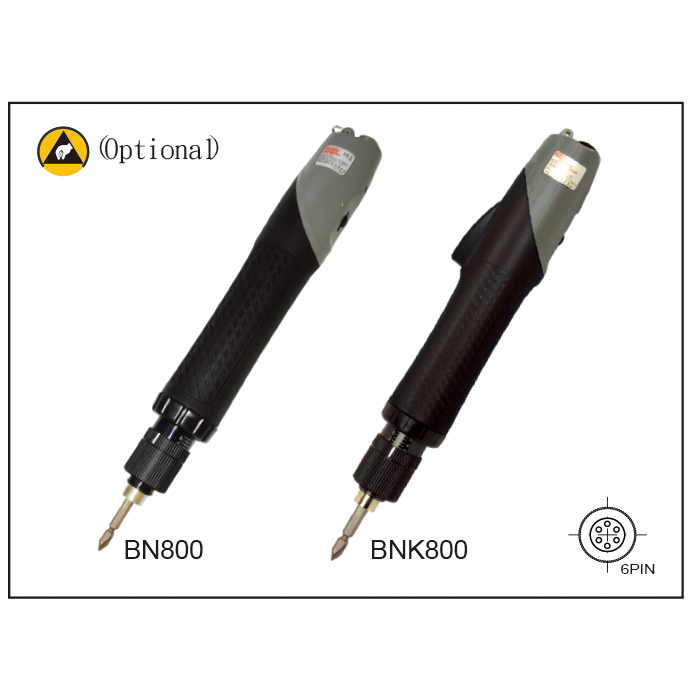

SKD-BN800/BNK800 Series photo
.jpg)
.jpg)
.jpg)
Product Spec
| Model | SKD-BN830L SKD-BNK830L |
SKD-BN830P SKD-BNK830P |
SKD-BN830LF | SKD-BN830PF | SKD-BN850L SKD-BNK850L |
SKD-BN850P SKD-BNK850P |
|
| Input Voltage | DC40V | ||||||
| Power Consumption | 90W | 90W | 90W | 90W | 120W | 120W | |

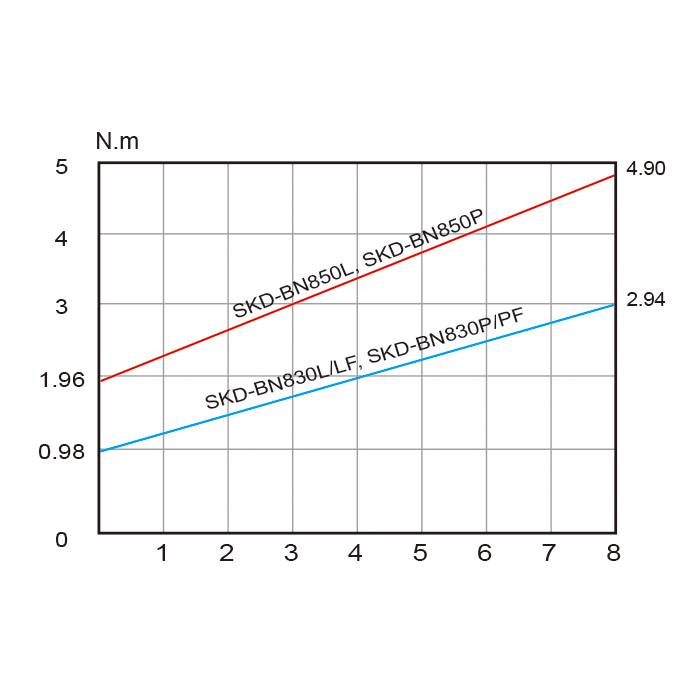

| Torque | (kgf.cm) | 10-30 | 10-30 | 10-30 | 10-30 | 20-50 | 20-50 |
| (Lbf.in) | 8.67-26.02 | 8.67-26.02 | 8.67-26.02 | 8.67-26.02 | 17.35-43.37 | 17.35-43.37 | |
| (N.m) | 0.98-2.94 | 0.98-2.94 | 0.98-2.94 | 0.98-2.94 | 1.96-4.90 | 1.96-4.90 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed(r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 1000 | 1000 |
| LO | – | – | – | – | – | – | |
| Screw SizeDia(mm) | Machine Screw | 2.6-4.0 | 2.6-4.0 | 2.6-4.0 | 2.6-4.0 | 4.0-5.0 | 4.0-5.0 |
| Tapping Screw | 2.6-3.5 | 2.6-3.5 | 2.6-3.5 | 2.6-3.5 | ≤ 4 | ≤ 4 | |
| Weight(g) | 800 | ||||||

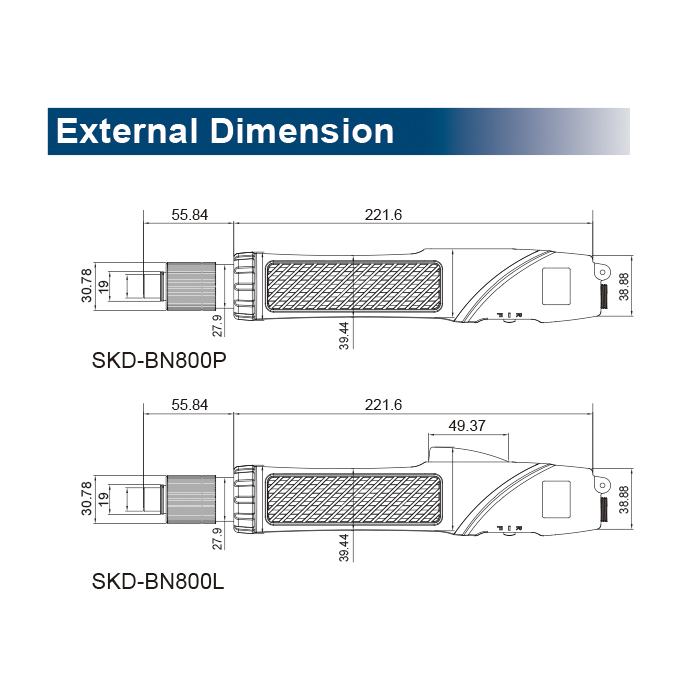

| Length(mm) | 278 | ||||||
| ESD(Anti-Static) | V (with black housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||
| Power Controller | SKP-40B-HL (N) | ||||||

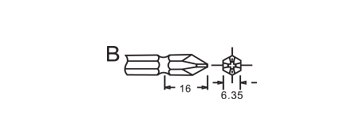

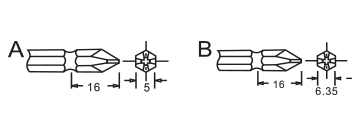

| height="144">Bity Type | .jpg) |
.jpg) |
|||||
