SKD-BE800 Series
-
Brushless motor, the perfect combination between screw counter and electric screwdriver, and most fit for operating in clean-room environment.
- Torque range from 10-50Kgf.cm is medium & small-sized screwdrivers. Widespread and extensively applied by users
- SKD-BE series is one compact of LED counter and electric screwdriver, Two-color housing easy to operate, suitably used on production line and effectively control numbers of fastening screws and operation quality.
- Easy to set up, complete function, user can set up this counter according to needs of work and leave system automatically to inspect the precision of fastening screws.
- This system can set up Effective Count Number(SC), Automatic Zero(At), Start Detect Time(Lt), Stop Time(Ht), Double Confirm Time after Fastening(LL), Waiting Time between Two screws, Professional designs for the needs of users.
- Automatic Leaming can complete necessary time from start to fasten, let user confirm whether it is an ideal fastening value.
- Signal output by OK ALL/OK ONE/N.G in the screwdrivers open collector. The user can select another wire to connect PLC if necessary.
- If start time doesn’t stop as over Ht time, that means stripped or wrong screw; If start time stops before Lt time, that means screws stuck or wrong. This function can effectively determine whether screw fastening is right or wrong.
- After setting up screws fastening shut-off can be confirmed just one time during pre-set time.

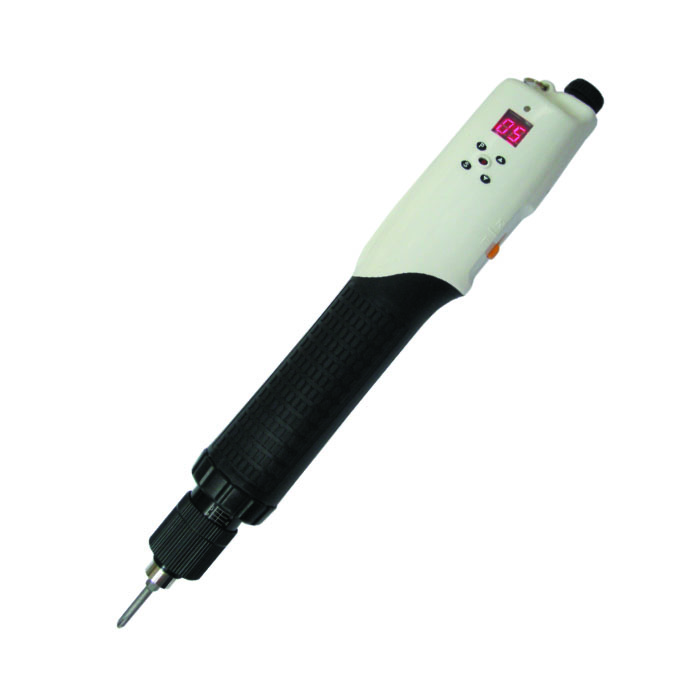

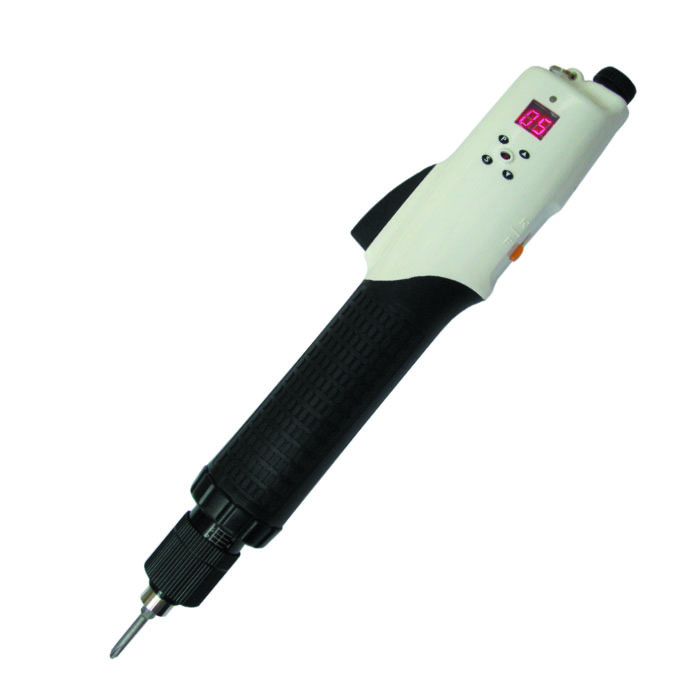

SKD-BE800 Series photo
Product Spec
| Model | SKD-BE830L(6P) | SKD-BE830P(6P) | SKD-BE830LF(6P) | SKD-BE830PF(6P) | SKD-BE850L(6P) | SKD-BE850P(6P) | |
| Input Voltage | DC40V | ||||||
| Power Consumption | 90W | 90W | 90W | 90W | 120W | 120W | |
| Torque | (kgf.cm) | 10-30 | 10-30 | 10-30 | 10-30 | 20-50 | 50-50 |
| (Lbf.in) | 8.67-26.02 | 8.67-26.02 | 8.67-26.02 | 8.67-26.02 | 17.35-43.37 | 17.35-43.37 | |
| (N.m) | 0.98-2.94 | 0.98-2.94 | 0.98-2.94 | 0.98-2.94 | 1.96-4.90 | 1.96-4.90 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 1000 | 1000 |
| LO | — | — | — | — | — | — | |
| Screw Size Dia (mm) | Machine Screw | 2.6-4.0 | 2.6-4.0 | 2.6-4.0 | 2.6-4.0 | 4.5-5.0 | 4.5-5.0 |
| Tapping Screw | 2.6-3.5 | 2.6-3.5 | 2.6-3.5 | 2.6-3.5 | ≦4 | ≦4 | |
| Weight(g) | 820 | ||||||

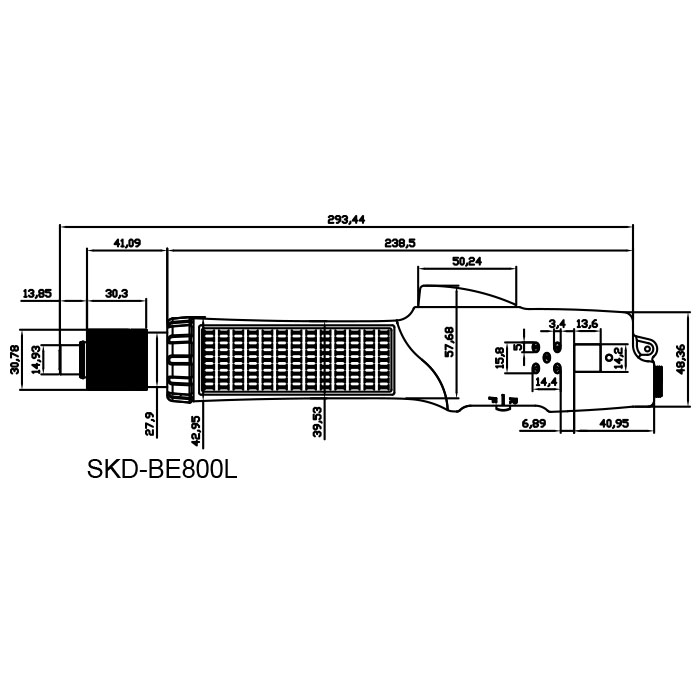

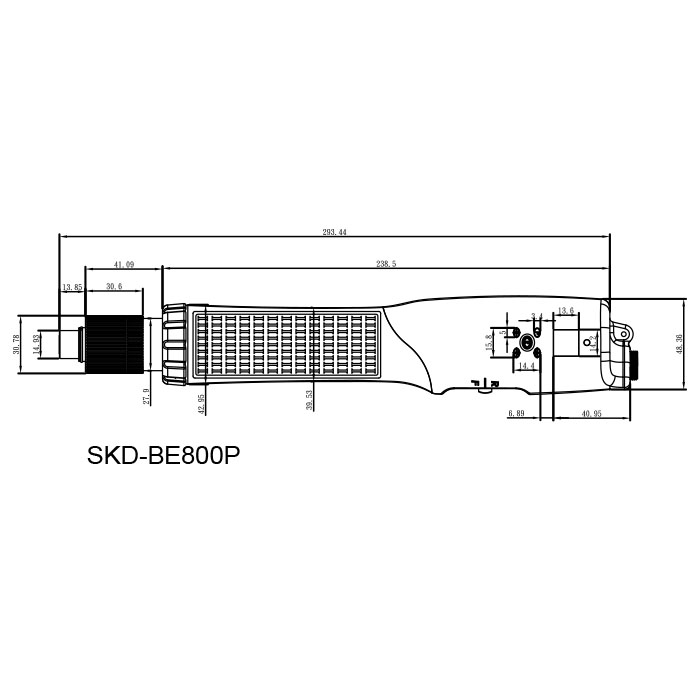

| Length(mm) | 294 | ||||||
| ESD(Anti-Static) | V(with biack housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||

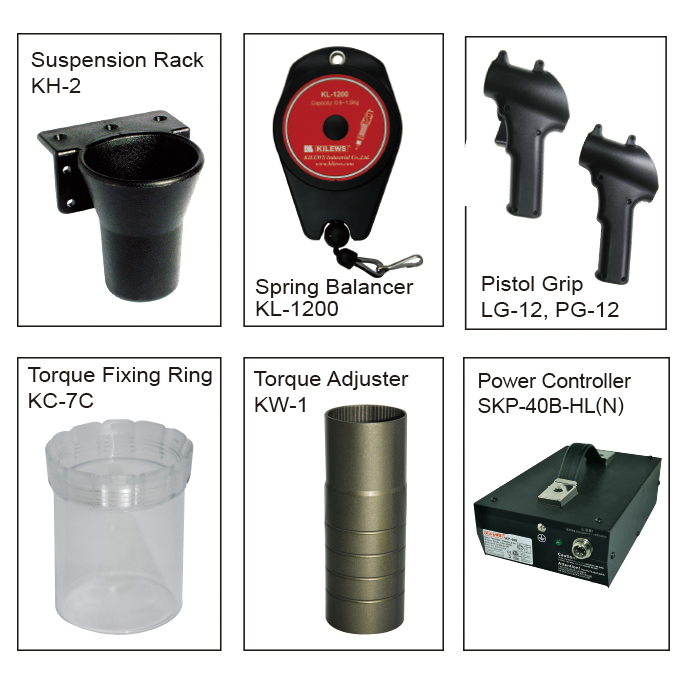

| Power Controller | SKP-40B-HL(N) | ||||||
| Bit Type | A,B | B | |||||
