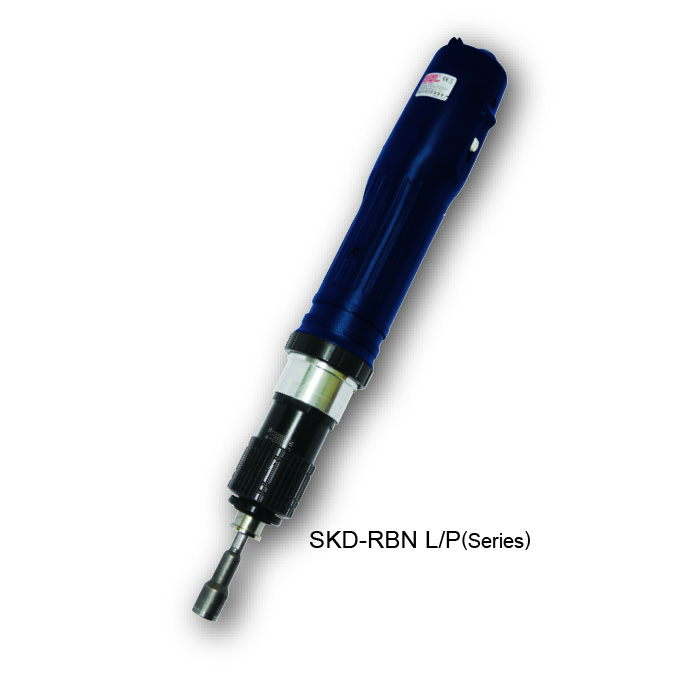

SKD-RBK Series

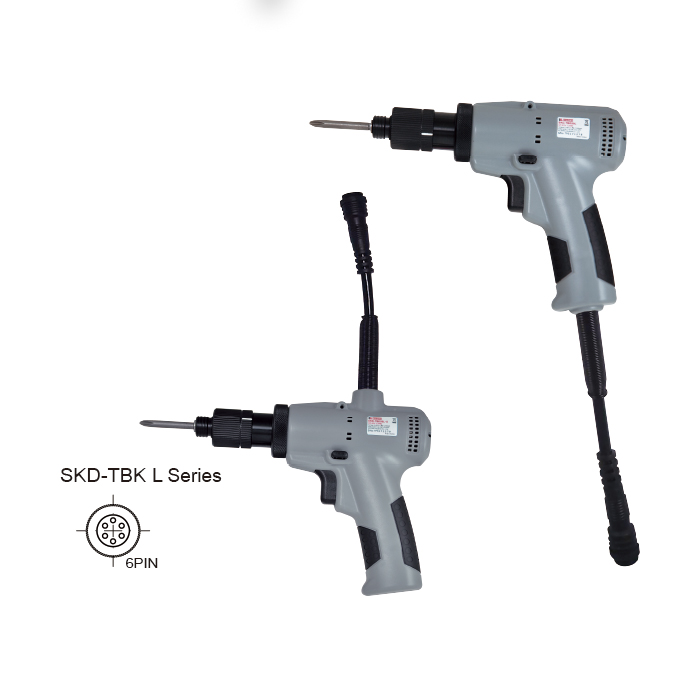

SKD-TBN(K) Series

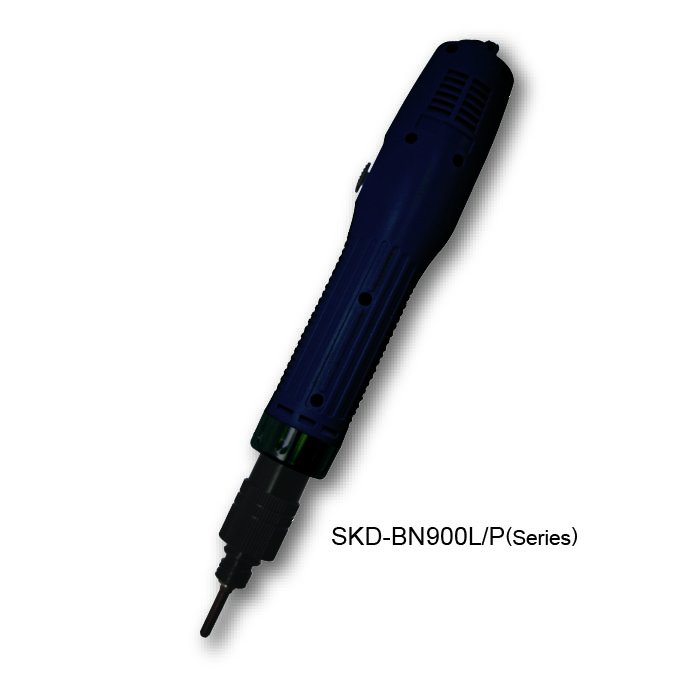

SKD-BK900 Series
SKP-BC40HL(N) V3.0
SKD-BN200 Series
SKD-BN500 Series
SKD-BN800 Series
Features of SKP-BC40H(N) V3.0 /SKP-BC40HL-800(N) V3.0
- High / Low speed switch / Hi /Lo voltage switch protection function
- Slow start time(0.0-9.9 second)
- Target reached Confirm(enable / disable)
- Input / Output function control
- External start Input control
- External reverse Input Control
- External enable Input Control
- External confirm Input Control
- Expanding 5 sets data memory
- Auto-Learning function for time monitoring
- Before tightening reverse
- After tightening reverse
- Counting mode( count up / count down)
- Signal output (OK 1/ OK ALL / NG)
- Cancel NG signal (Use external Clear or Confirm)button to cancel NG signal)
- Operation complete time
- Self-locking when counter detect error (enable / disable)
- Error code by monitoring
- Strong anti-interference capability

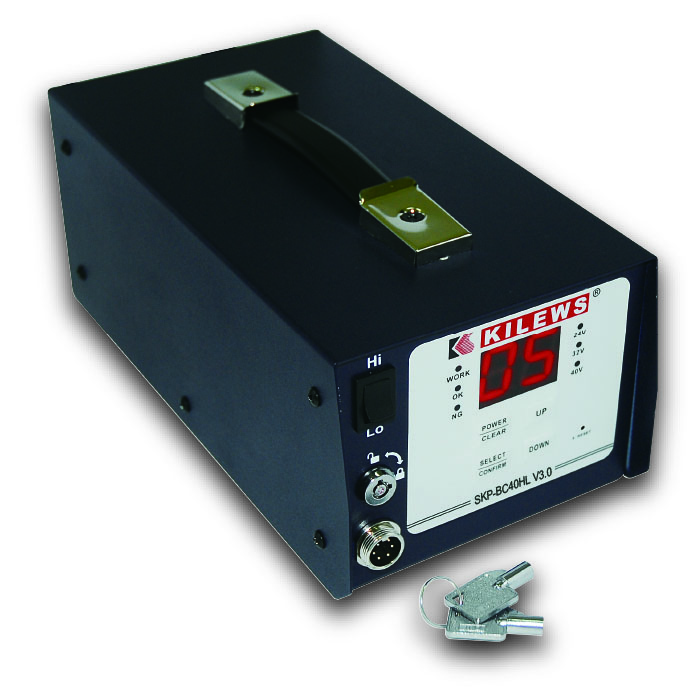

SKP-BC40HL(N) V3.0 & SKP-BC40HL-800(N) V3.0
Product Spec
| Model | SKP-BC40HL(N) V3.0 | SKP-BC40HL-800(N) V3.0 | |
| Input Voltage | AC 100V-240V/50HZ/60HZ | AC 110V/ 50HZ 220V/60HZ | |
| Output Voltage | DC 40V / 32V /24V 5A | DC 40V / 32V / 24V 9A | |
| Power Consumption | 200W | 360W | |
| Count | 1-99 | ||
| Count method | Count-up / Count-down | ||
| Reverse Resuming | ON / OFF | ||
| Work with Sensor | ON /OFF | ||
| GATE Sensor | ON(2 Sensors) / OFF(1 Sensor) | ||
| Slow-start time adjustable | 0-9.9 seconds | ||
| Slow-start speed adjustable | LO:100%, 35%-85% L1-L9 Rated speed | ||
| Running Time limit-LO | 0.00-9.90 seconds | ||
| Running Time limit-HI | 0.0-9.9 seconds | ||
| Reminder Mode | ON/OF/FF/EF with LED and buzzer | ||
| Auto ZERO | ON / OFF | ||

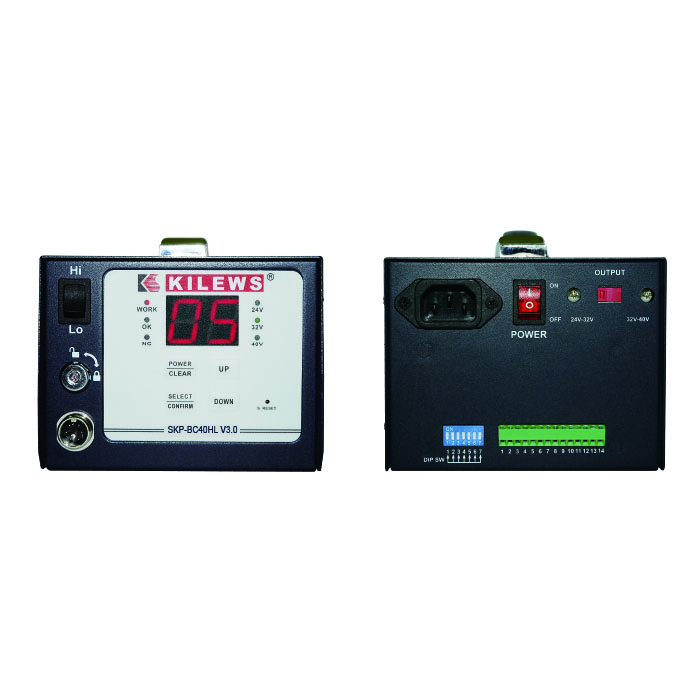

| Extemal inputs | Forward/Reverse/Disable/Confirm/Sensor/Clear | ||
| Extemal outputs | OK/NG/OK ALL | ||
| Screwdriver Control | HI/LO : Slow-Start | ||

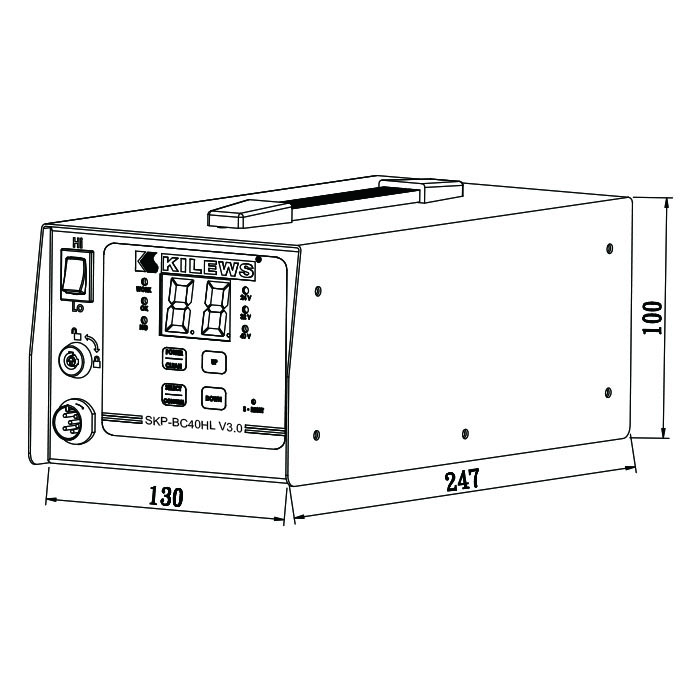

| Dimensions | 247x130x100(mm) | ||
| Weight(Kg) | 2.4 | ||
| Accessories | Power cordX1 . KeyX2 | ||
| Remark | |||
| Applicable Models | SKD-BN200 | FOR ALL SKD-BN SERIES (included RBN, TBN, BN900) | |
| SKD-BN500 | |||
| SKD-BN800 | |||
