Auxiliary Arm Series
KP-AUXA, KP-AUX1T

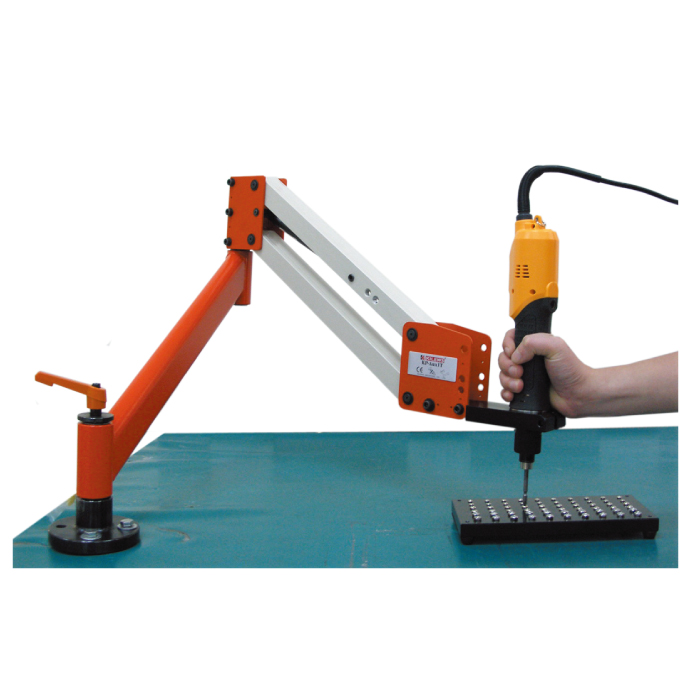

Provide with the rocker arm, enable to revolve on 360 degrees.
Main shaft can be extended to maximum 830mm
Power arm inside includes nitrogen gas stick , allow user to grab the arm easily, automatic lift up to position after finishing the work.
Easy to assemble and Disassemble.

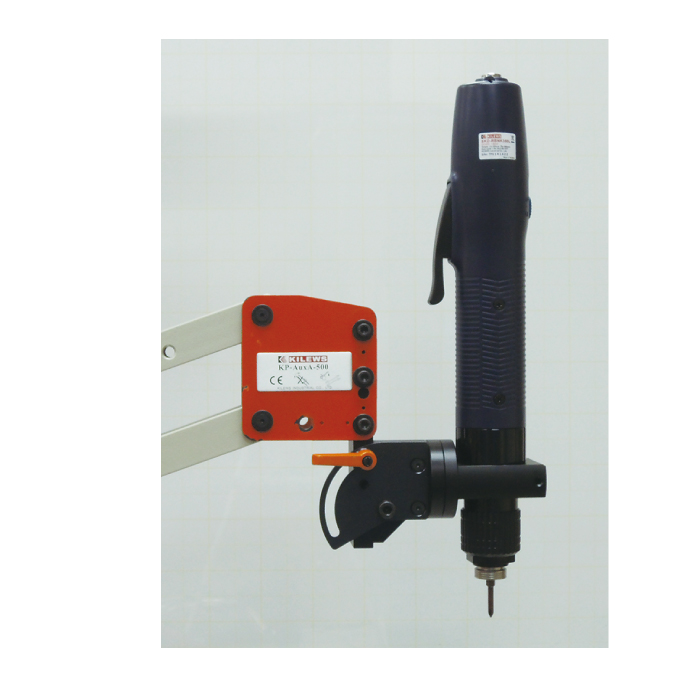

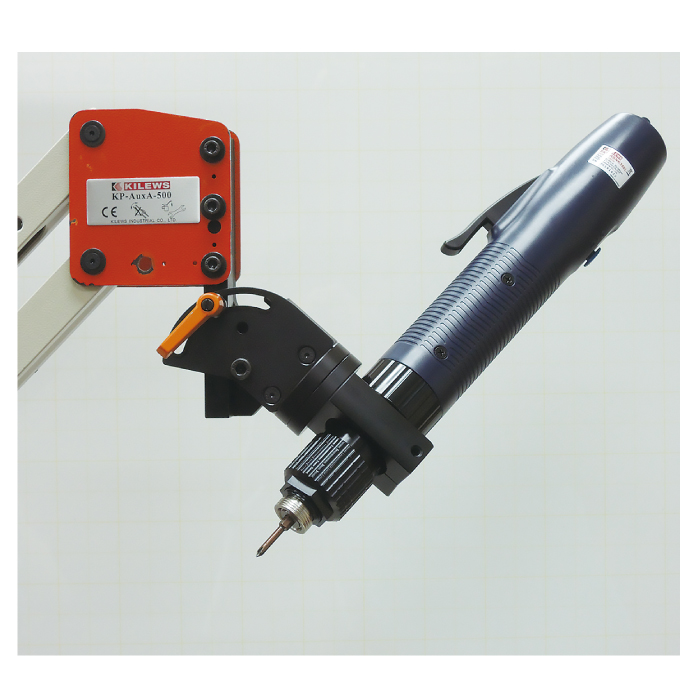

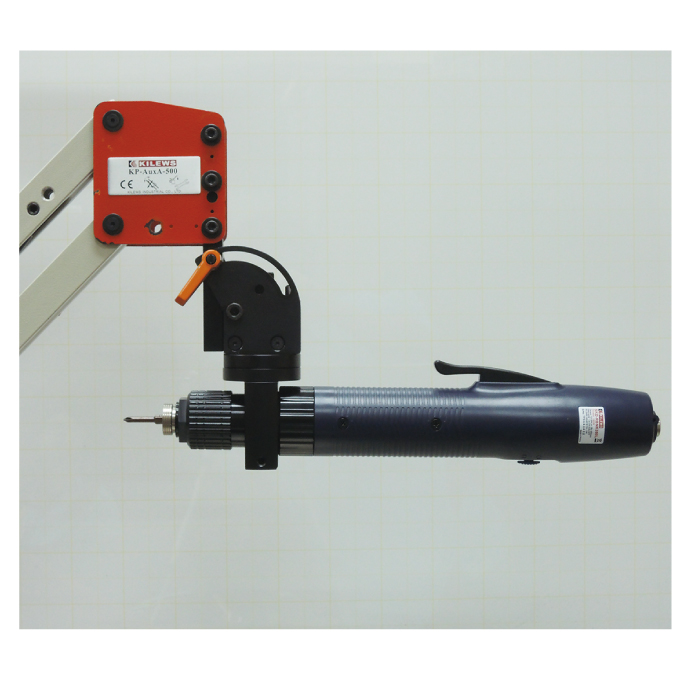

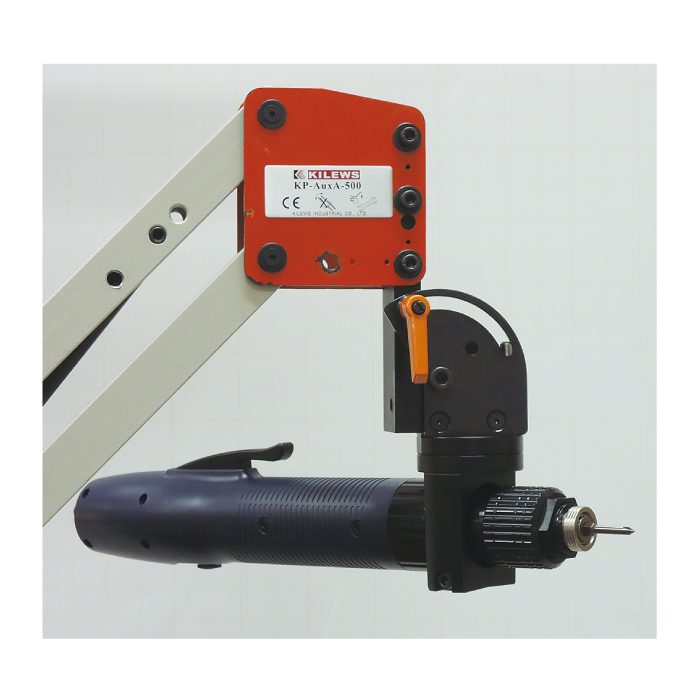

Optional accessory KP-VA1, KP-VAR(90 degree adapter) is available for user to Adjust angle in accordance with the object to be fastened.
Provide with the rocker arm, enable to revolve on 360 degrees.
Main shaft can be extended to maximum 830mm
Power arm inside includes nitrogen gas stick , allow user to grab the arm easily, automatic lift up to position after finishing the work.
Easy to assemble and Disassemble.
Optional accessory KP-VA1, KP-VAR(90 degree adapter) is available for user to Adjust angle in accordance with the object to be fastened.
| Model | KP-AUXA | KP-AUXA-1 | KP-AUXA-2 | KP-AUX1T-B | KP-AUXA-500 | |
| Description | Suspension Arm | |||||
| Reach | 50mm ~ 830mm | |||||
| Applicable Models | SKD-RBN Series | SKD-RBN Series | SKD-BN900 Series | SKD-BN800 Series SKD-BE800 Series |
SKD-RBN 350/500 Series | |
| Gas Stick (kg) | 25kg | 30kg | 25kg | 20gk | 35kg | |
| Remark | Bracket Clamp | KP-VAR adaptable | KP-VA1 adaptable | KP-VA2 adaptable | ||
| Model | Max torque(Nm) | A(min.max)cm | Tool Ø diameter(mm) | |

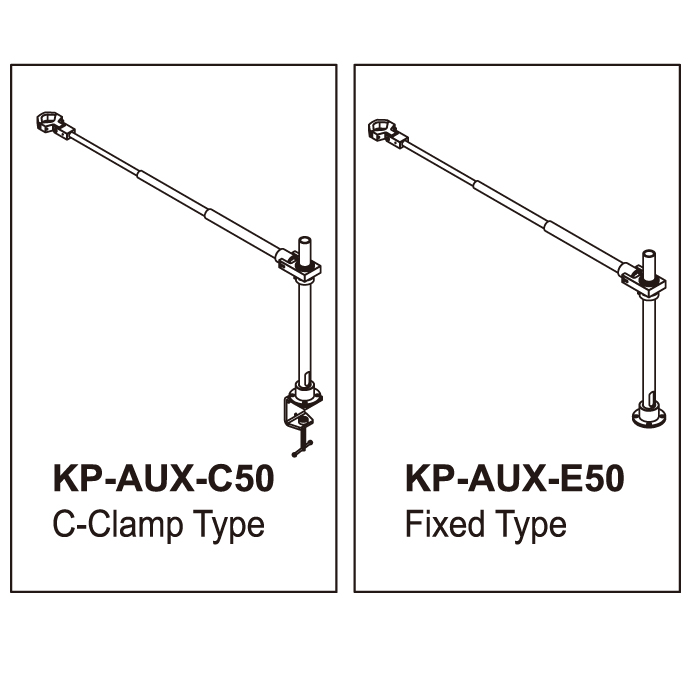

| KP-AUX-C50-1000 | 50 | 43-100 | 38.5-52 | |
| KP-AUX-C50-1200 | 50 | 50-120 | 38.5-52 | |
| KP-AUX-E50-1000 | 50 | 43-100 | 38.5-52 | |
| KP-AUX-E50-1200 | 50 | 50-120 | 38.5-52 | |

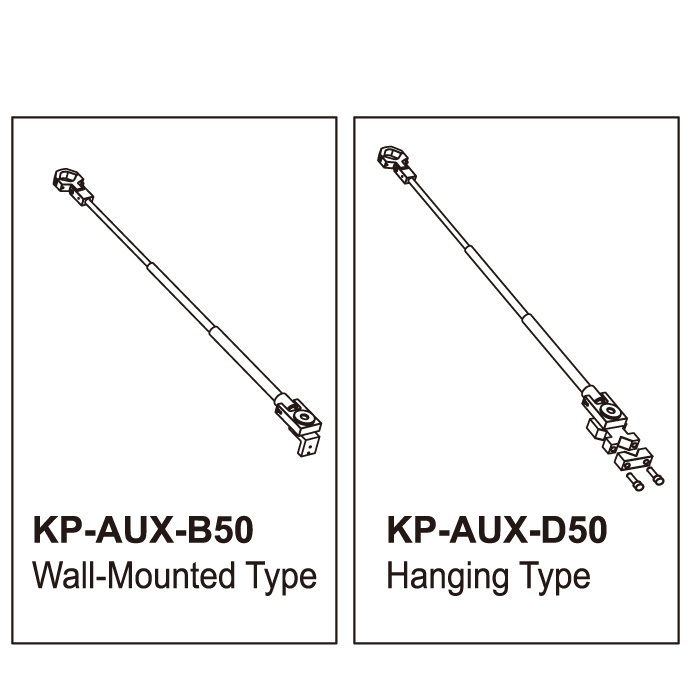

| KP-AUX-B50-1000 | 50 | 43-100 | 38.5-52 | |
| KP-AUX-E50-1200 | 50 | 50-120 | 38.5-52 | |
| KP-AUX-D50-1000 | 50 | 43-100 | 38.5-52 | |
| KP-AUX-D50-120 | 50 | 50-120 | 38.5-52 | |
