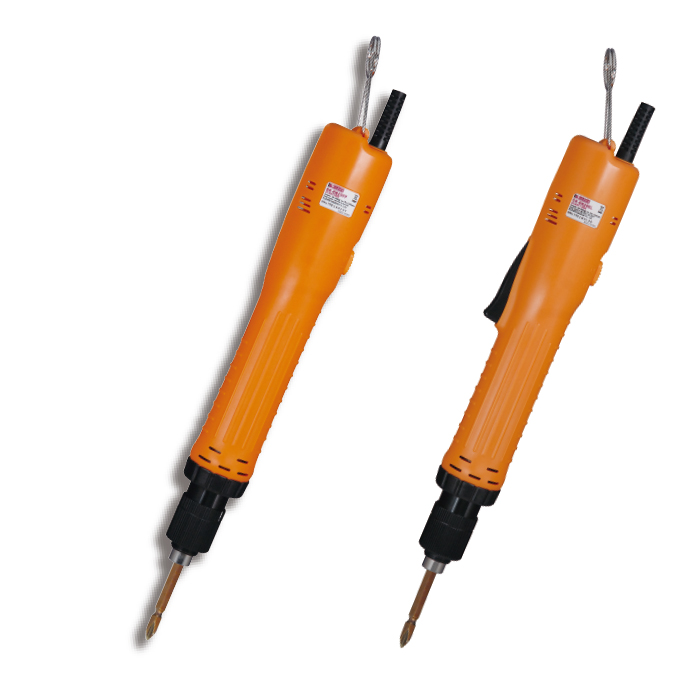

SK-B6 Series
- AC Plug; No adaptor needed.
- Torque range 5~50Kgf.cm.
- Adopts High-Functional Brushless Motor.
- Best fit for general machine screws operation.
- High rotation Speed.
Specifications
| Model | SK-B6115L SK-B6125P | SK-B6125LF SK-B6125PF | SK-B6150L SK-B6150P | SK-B6230L SK-B6230P | SK-B6230LF SK-B6230PF | SK-B6250L SK-B6250P | |
| Input Voltage | AC110~120V 50/60Hz | AC220~240V 50/60Hz | |||||
| Torque | (Kgf.cm) | 5~25 | 5~25 | 20~50 | 10~30 | 10~30 | 20~50 |
| (Lbf.in) | 4.34~21.68 | 4.34~21.68 | 17.35~43.37 | 8.67~26.02 | 8.67~26.02 | 17.35~43.37 | |
| (N.m) | 0.49~2.45 | 0.49~2.45 | 1.96~4.90 | 0.98~2.94 | 0.98~2.94 | 1.96~4.90 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed (r.p.m) (r.p.m) | 1000 | 2000 | 1000 | 1200 | 2000 | 1200 | |
| Power Consumption | 0.5A | 0.3A | |||||
| Screw Size Dia (mm) | Machine Screw | 2.6~4.0 | 2.6~4.0 | 4.0~5.0 | 2.6~4.0 | 2.6~4.0 | 4.0~5.0 |
| Tapping Screw | 2.6~3.5 | 2.6~3.5 | ≤4 | 2.6~3.5 | 2.6~3.5 | ≤4 | |
| Weight(g) | 500 | 810 | |||||
| Length(mm) | 285 | 305 | |||||
| ESD(Anti-Static) | 一 | ||||||
| ETL | V | 一 | |||||
| CE | 一 | V | |||||
| RoHS | V | ||||||

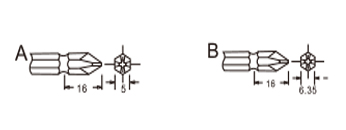

| Bit Type |  |
||||||
