SK-B100 Series
- Adopting the high function of innovation and brushless feature. Durable and permanent life-time. Motor maintenance is unnecessary.
- Small and light weight, noiseless, streamlined appearance, high stability and easy to use.
- First creation of the smallest and lightest brushless feature.
- First innovations of Forward/Reverse switch modes. Screws can be loosed easily just in a moment without switching the switches modes.
- Two lowest torque specifications: 0.08~1.5Kgf.cm / 0.5~3.5Kgf.cm. Best choice for producing high precision products, such as watches, high precision hard-driver and etc.
- Certification: ETL and CE
Specifications
| Model | SKD-B100L | SKD-B103L | SKD-B100LS4 | SKD-B103LS4 | |||||
| Input Voltage | DC9V or DC12V | ||||||||
|

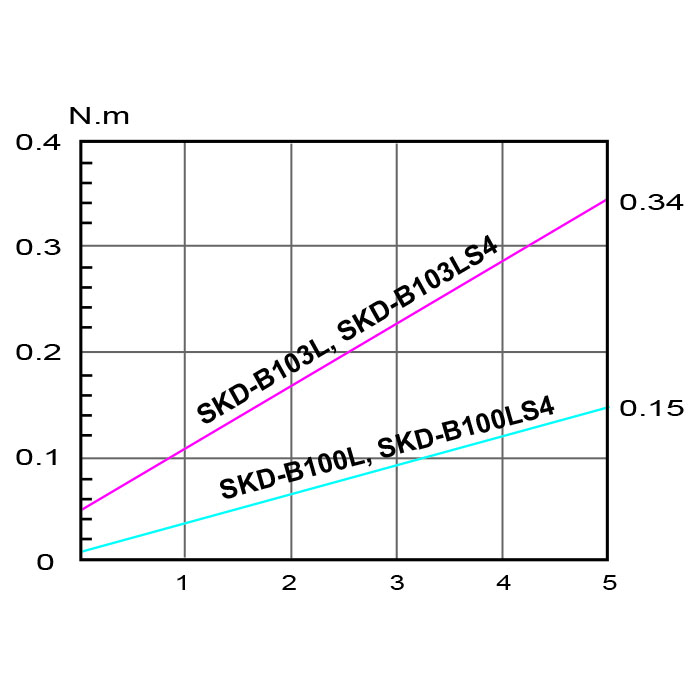

Torque |
(Kgf.cm) | 0.08~1.5 | 0.5~3.5 | 0.08~1.5 | 0.5~3.5 | ||||
| (Kgf.cm) | 0.08~1.5 | 0.5~3.5 | 0.08~1.5 | 0.5~3.5 | |||||
| (Kgf.cm) | 0.08~1.5 | 0.5~3.5 | 0.08~1.5 | 0.5~3.5 | |||||
| Repeatable Torque Accuracy(%) | ±5% | ||||||||
| Torque Adjustment | StepLess | ||||||||
Free Speed (r.p.m) |
HI | 1000 | 1000 | 280 | 280 | ||||
| LO | 700 | 700 | 200 | 200 | |||||
Screw Size Dia (mm) |
Machine Screw | 1.0~1.7 | 1.0~2.3 | 1.0~1.7 | 1.0~2.3 | ||||
| Tapping Screw | 1.0~1.5 | 1.0~2.0 | 1.0~1.5 | 1.0~2.0 | |||||
| Weight(g) | 170 | ||||||||

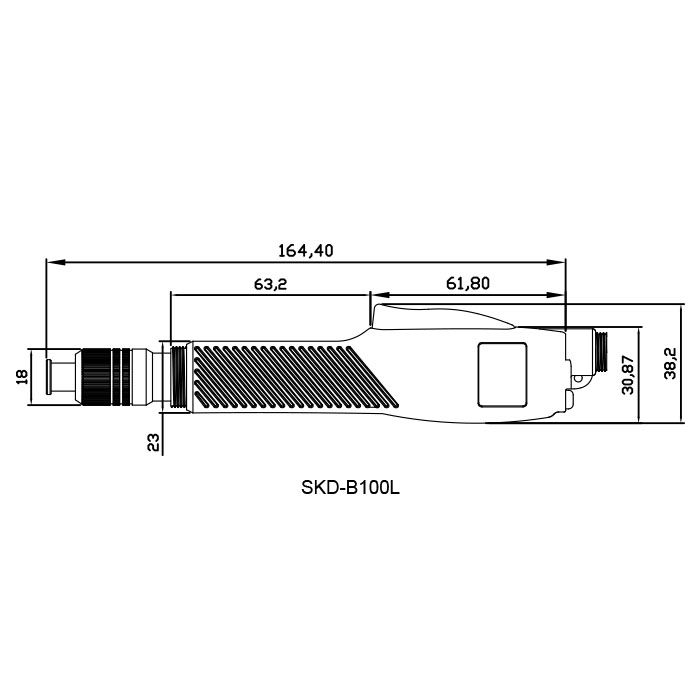

| Length(mm) | 165 | ||||||||
| Power Controller | SKP-12HL | ||||||||
| ESD(Anti-Static) | V(With Black housing) | ||||||||
| ETL | V | ||||||||
| CE | V | ||||||||
| RoHS | V | ||||||||

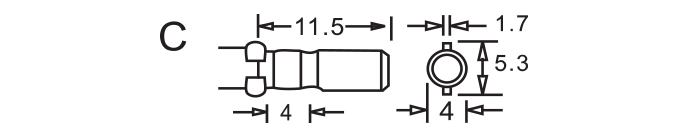

| Bit Type |  |
||||||||
| Model | SKP-12HL | |
| Input Voltage | AC100~240V 50/60Hz | |
| Output Voltage | Lo DC9V / Hi DC12V | |
| Capacity | 2.5A | |
| Size | 105X50X35 | |
| Weight | 144.5g | |
| Cord Length | 2M | |
