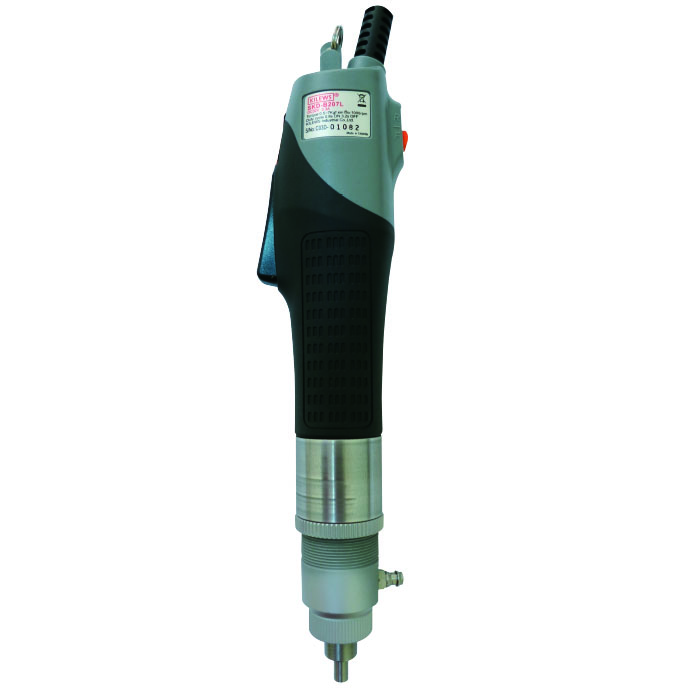

SKD-BN200 (VACUUM TYPE) Series

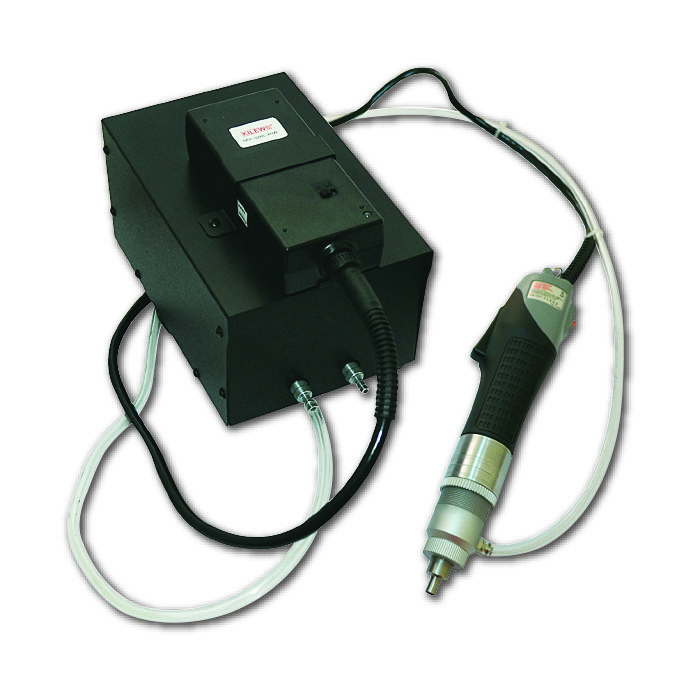

- Vacuum screwdriver was taking the series of SKD-BN200L/P as reference and being created by adding the vacuum head. The main purpose is sucking the non-magnetic screws, such as plastic screws / aluminum-made screws / stainless steel screws and any other screws that does not contain magnetic.

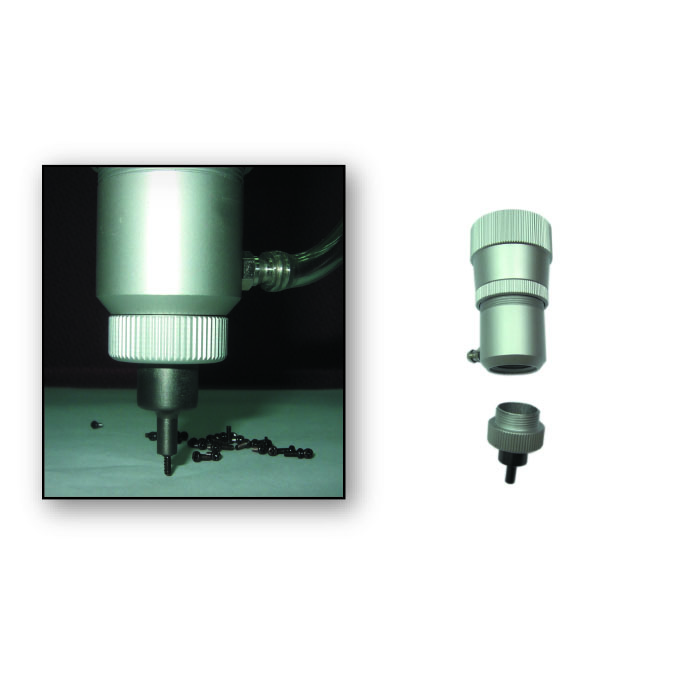

- Any type and specification of screws can be sucked which only need to replace the head to KS-2B
- The suction of vacuum pump is powerful; if the screws tray is using together, it will be more convenient and easy. The screws can be placed at the tray first and then sucked by the vacuum screwdriver.
- CE and ETL are optional
Specifications
| Model | SKD-BN203L(VACCUM TYPE) | SKD-BN207L(VACCUM TYPE) | SKD-BN210L(VACCUM TYPE) | SKD-BN203LS5(VACCUM TYPE) | SKD-BN203LS6(VACCUM TYPE) | SKD-BN203LS7(VACCUM TYPE) | |
| Input Voltage | DC24V or DC32V | ||||||
| Torque | (Kgf.cm) | 0.2~3.5 | 0.5~7 | L:1~10 | 0.2~3.5 | 0.2~3.5 | 0.2~3.5 |
| (Lbf.in) | 0.18~3.01 | 0.44~6.10 | L:0.89~8.67 | 0.18~3.01 | 0.18~3.01 | 0.18~3.01 | |
| (N.m) | 0.02~0.34 | 0.05~0.69 | L:0.10~0.98 | 0.02~0.34 | 0.02~0.34 | 0.02~0.34 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | StepLess | ||||||
| Free Speed (r.p.m) | HI | 1000 | 1000 | 1000 | 500 | 370 | 230 |
| LO | 700 | 700 | 700 | 350 | 260 | 160 | |
| Screw Size Dia (mm) | Machine Screw | 1.0~2.3 | 1.4~2.6 | 1.6~3.0 | 1.0~2.3 | 1.0~2.3 | 1.0~2.3 |
| Tapping Screw | 1.0~2.0 | 1.4~2.3 | 1.6~2.6 | 1.0~2.0 | 1.0~2.0 | 1.0~2.0 | |
| Power Consumption | 25W | ||||||
| Weight(g) | 385 | ||||||

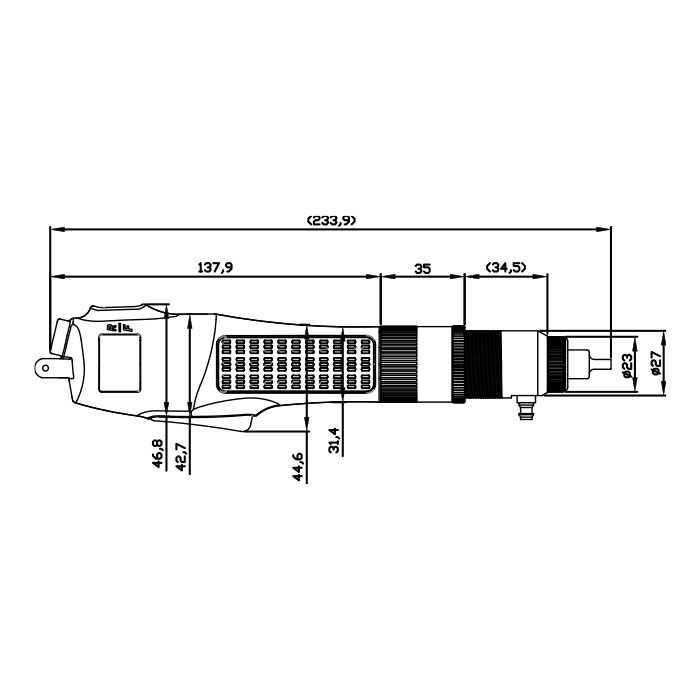

| Length(mm) | 234 | ||||||
| ESD(Anti-Static) | V(With Black housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||
| Power Controller | SKP-32BC-60W | ||||||

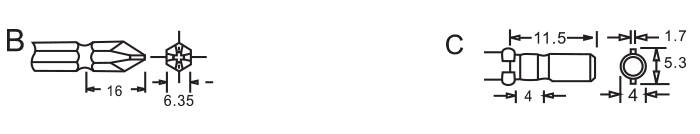

| Bit Type |  |
||||||
