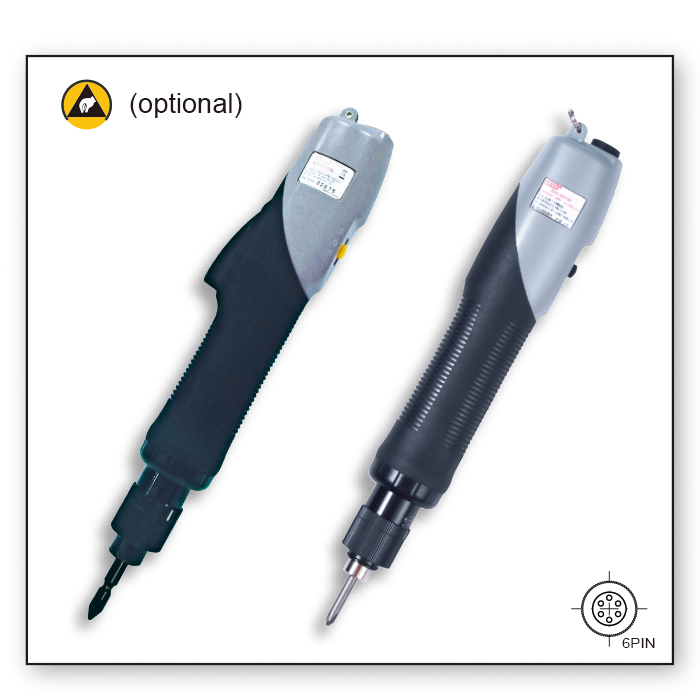

SK-BNK500 Series
- Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
- SSmaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
- Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
- Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
- CE and ETL are optional
Specifications
| Model | SKD-BNK512L | SKD-BNK512P | SKD-BNK512LF | SKD-BNK512PF | SKD-BNK517LF/PF | SKD-BNK519L/P | |
| Input Voltage | DC24V or DC32V | ||||||
| Power Consumption | 55W | ||||||

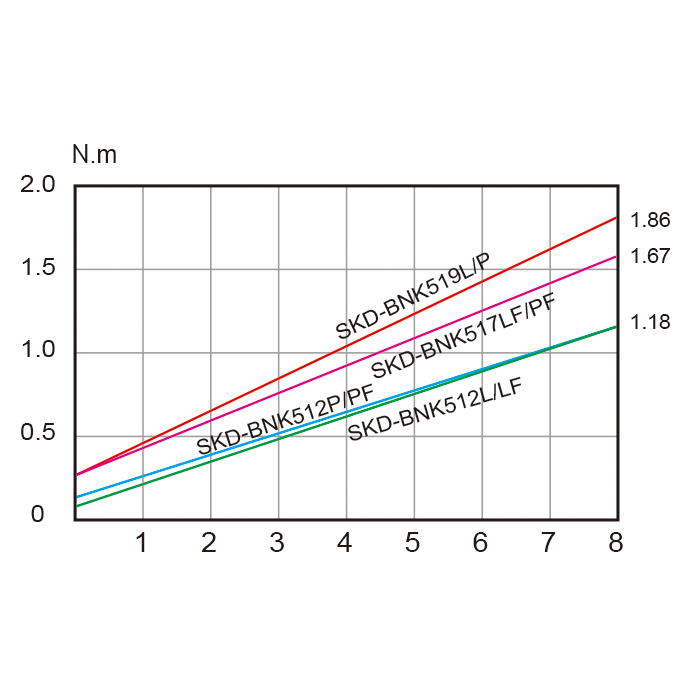

| Torque | (Kgf.cm) | 1.5~12 | 2~12 | 1.5~12 | 2~12 | 3~17 | 3~19 |
| (Lbf.in) | 1.33~10.44 | 1.77~10.44 | 1.33~10.44 | 1.77~10.44 | 2.57~14.78 | 2.57~16.46 | |
| (N.m) | 0.15~1.18 | 0.2~1.18 | 0.15~1.18 | 0.2~1.18 | 0.29~1.67 | 0.29~1.86 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | StepLess | ||||||
| Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 2000 | 2000 |
| LO | 700 | 700 | 一 | 一 | 一 | 700 | |
| Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 2.3~3.5 |
| Tapping Screw | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 2.3~3.0 | |
| Weight(g) | 520 | ||||||

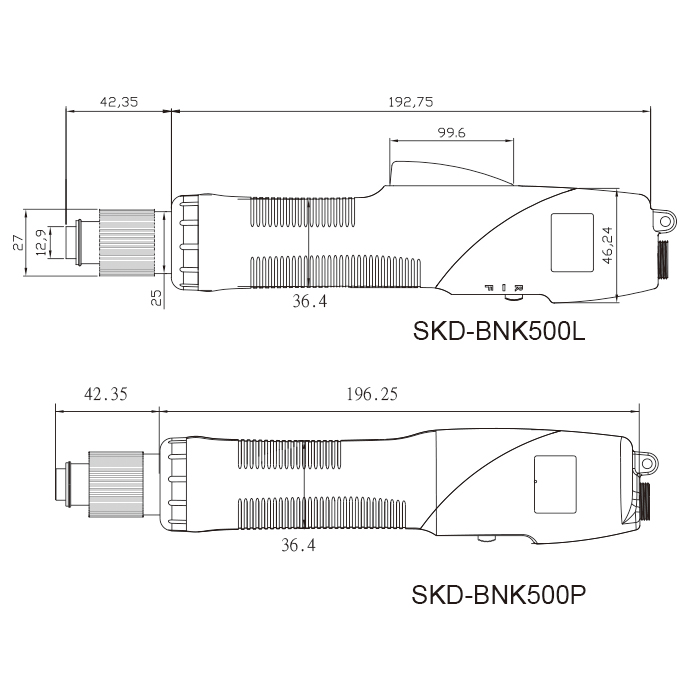

| Length(mm) | 245 | ||||||
| ESD(Anti-Static) | V(With Black housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||

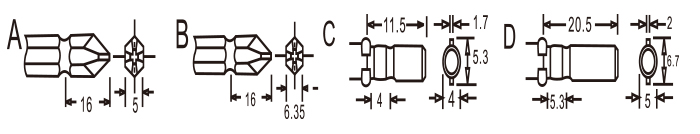

| Bit Type |  |
||||||
