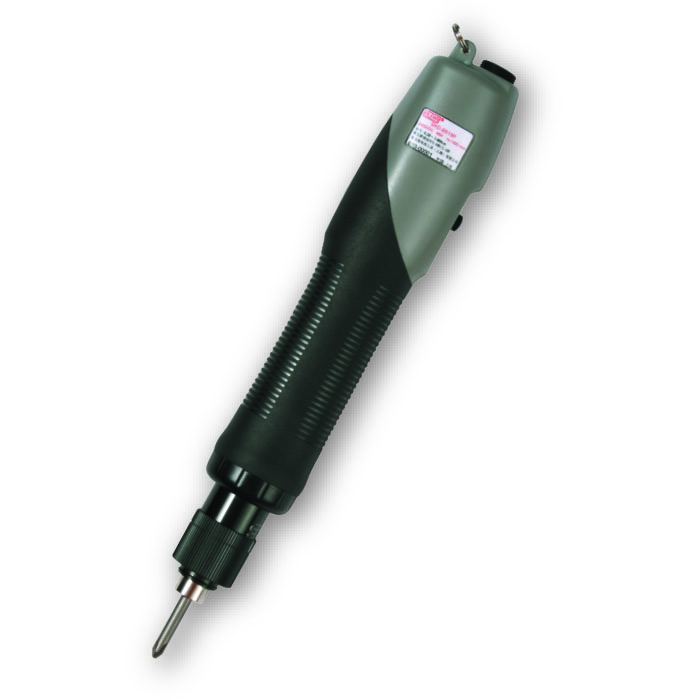

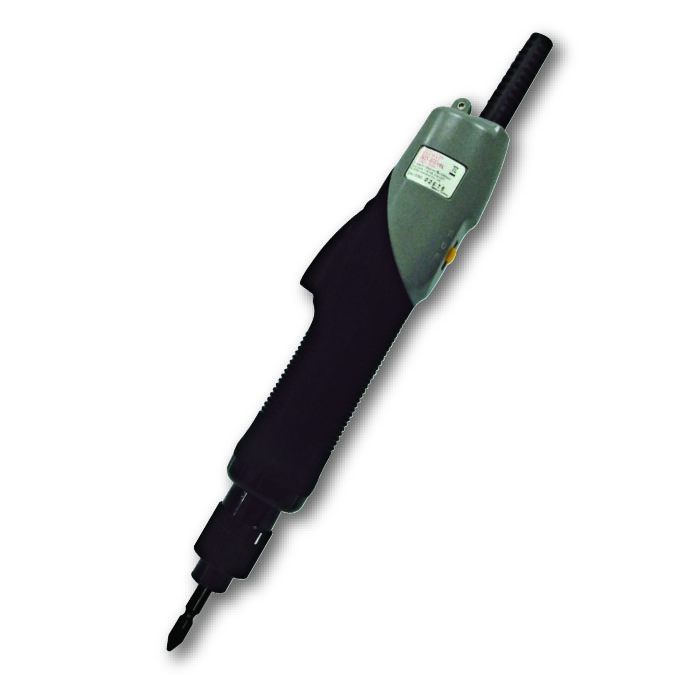

SK-BN500 Series
- Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
- Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
- Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
- Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
- E and ETL are optional
Specifications
Model | SKD-BN512L | SKD-BN512P | SKD-BN512LF | SKD-BN512PF | SKD-BN517LF/PF | SKD-BN519L/P | |
Input Voltage | DC24V or DC32V | ||||||
Power Consumption | 55W | ||||||

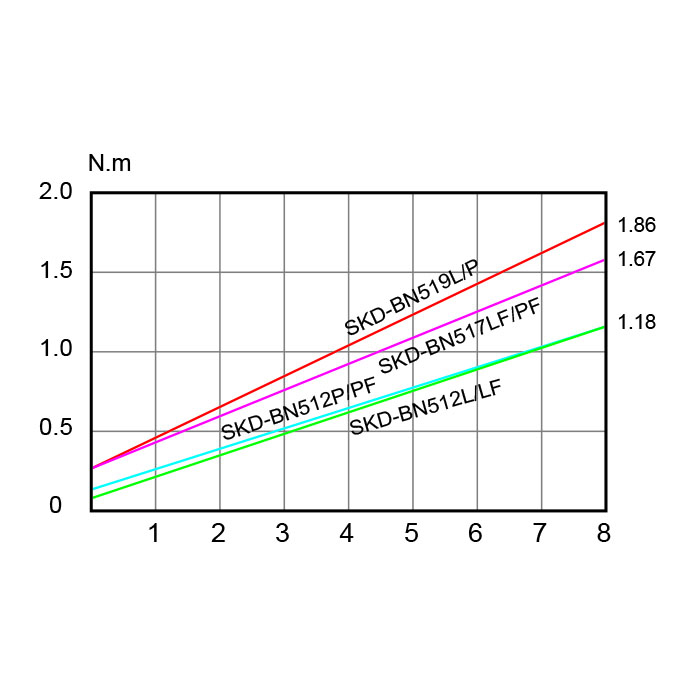

Torque | (Kgf.cm) | 1.5~12 | 2~12 | 1.5~12 | 2~12 | 3~17 | 3~19 |
(Lbf.in) | 1.33~10.44 | 1.77~10.44 | 1.33~10.44 | 1.77~10.44 | 2.57~14.78 | 2.57~16.46 | |
(N.m) | 0.15~1.18 | 0.2~1.18 | 0.15~1.18 | 0.2~1.18 | 0.29~1.67 | 0.29~1.86 | |
Repeatable Torque Accuracy(%) | ±3% | ||||||
Torque Adjustment | StepLess | ||||||
Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 2000 | 1000 |
LO | 700 | 700 | 一 | 一 | 一 | 700 | |
Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 2.3~3.5 |
Tapping Screw | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 2.3~3.0 | |
Weight(g) | 520 | ||||||

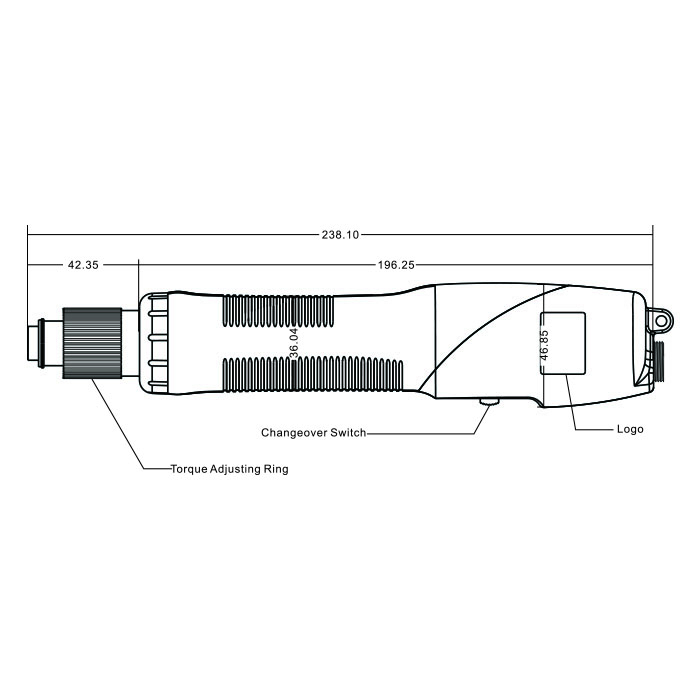

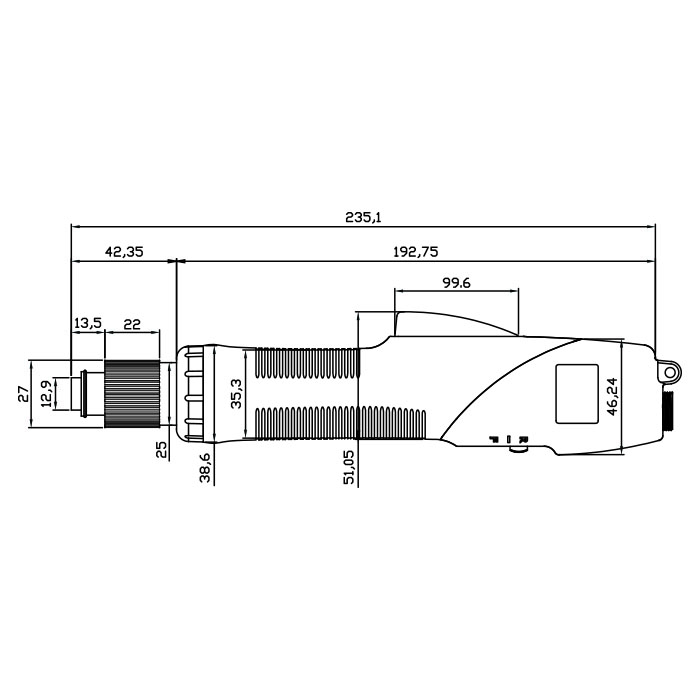

Length(mm) | 245 | ||||||
ESD(Anti-Static) | V(With Black housing) | ||||||
CE | V | ||||||
RoHS | V | ||||||

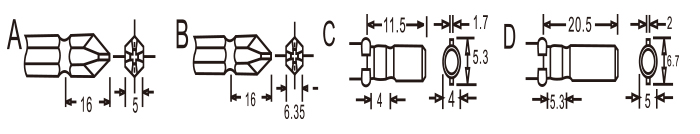

Bit Type |
