SKD-C2000/C5000/C7000/C8000 Series

Specifications

Product Specifications

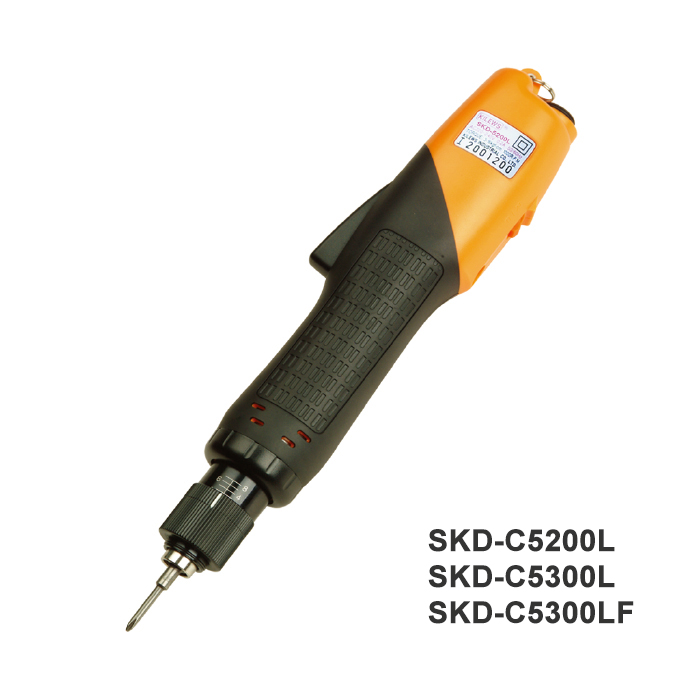

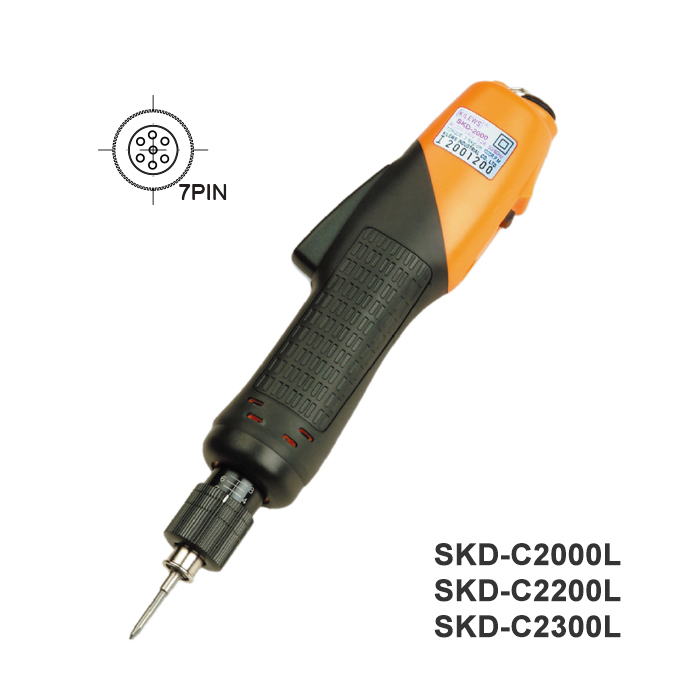

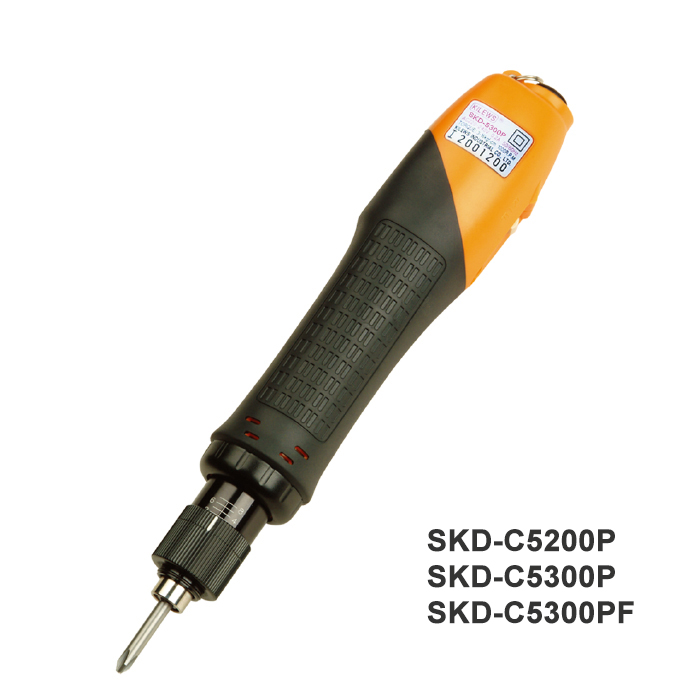

Model		SKD-C2000L	SKD-C2200L	SKD-C2300L	SKD-C5200L/P	SKD-C5300L/P	SKD-C5300LF/PF
Torque	(Kgf.cm)	0.2~3.5	0.5~7	1~10	L 1~12	3~16	LF 1~8
	(Kgf.cm)	0.2~3.5	0.5~7	1~10	P 2~12	3~16	PF 2~8
	(Lbf.in)	0.18~3.01	0.44~6.10	0.89~8.67	L 0.89~10.44	2.57~13.89	LF 0.89~6.90
	(Lbf.in)	0.18~3.01	0.44~6.10	0.89~8.67	P 1.77~10.44	2.57~13.89	PF 1.77~6.90
	(N.m)	0.02~0.34	0.05~0.69	0.1~0.98	L 0.1~1.18	0.29~1.57	LF 0.1~0.78
	(N.m)	0.02~0.34	0.05~0.69	0.1~0.98	P 0.2~1.18	0.29~1.57	PF 0.2~0.78
Specifications Speed (r.p.m) ±10%	HI	1000	1000	700	1000	1000	2000
Specifications Speed (r.p.m) ±10%	LO	700	700	500	700	700	一
Screw Size Dia (mm)	Machine Screw	1.0~2.3	1.4~2.6	1.6~3.0	1.6~3.0	2.3~3.5	1.6~3.0
Screw Size Dia (mm)	Tapping Screw	1.0~2.0	1.4~2.3	1.6~2.6	1.6~2.6	2.3~3.5	1.6~2.6
Weight(g)		270	270	270	480	480	480
Length(mm)		LC/213 LB/222			230	230	230

Specifications

Product Specifications

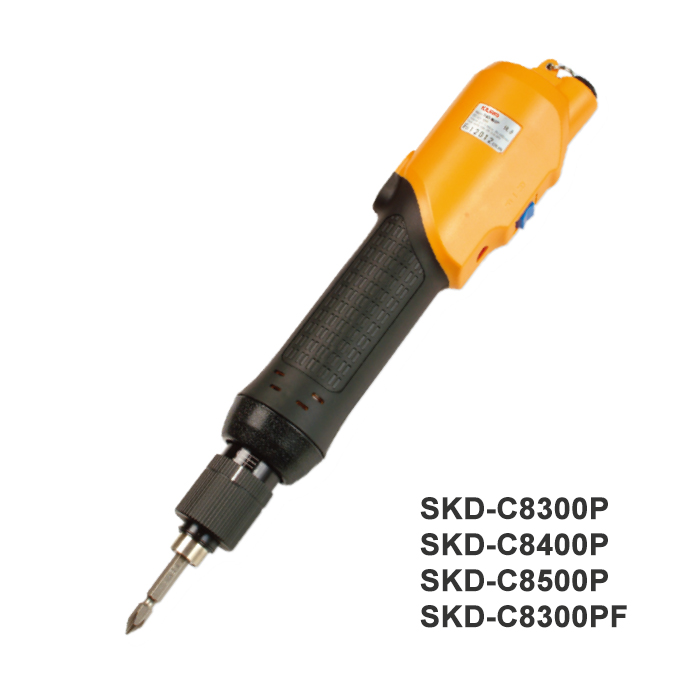

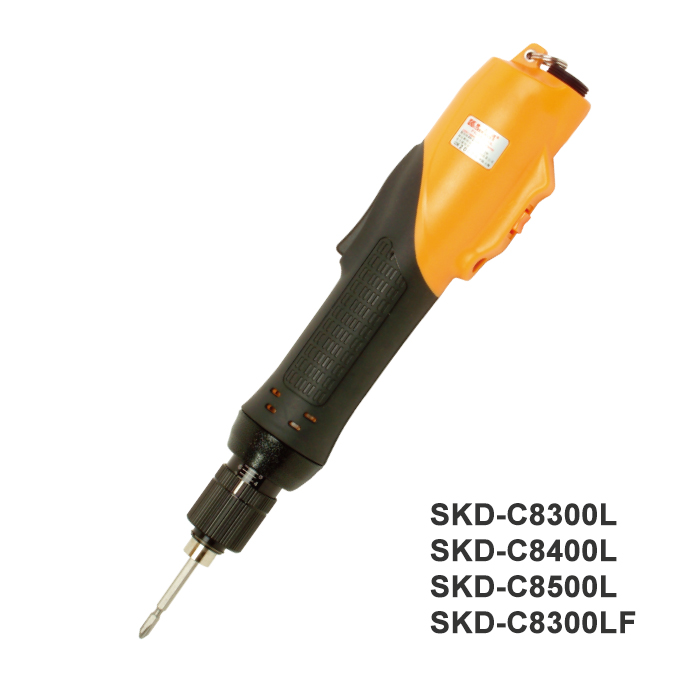

Model		SKD-C7000L/P	SKD-C7200L/P	SKD-C7800L/P	SKD-C7800LF/PF	SKD-C8300L/P	SKD-C8300LF/PF	SKD-C8400L/P	SKD-C8500L/P
Torque	(Kgf.cm)	5~18	7~24	8~30	2~10	6~22	5~12	10~30	15~45
	(Lbf.in)	4.34~15.58	6.11~20.8	6.9~26.02	1.77~8.67	5.22~19.12	4.34~10.44	8.67~26.02	13.0~39.02
	(N.m)	0.49~1.76	0.69~2.35	0.78~2.94	0.2~0.98	0.59~2.16	0.49~1.18	0.98~2.94	1.47~4.41
Specifications Speed (r.p.m) ±10%	HI	1000	750	530	2000	1000	2000	750	530
Specifications Speed (r.p.m) ±10%	LO	700	520	350	一	700	一	520	350
Screw Size Dia (mm)	Machine Screw	2.0~3.5	2.6~4.0	3.0~5.0	2.0~3.0	2.6~4.0	2.3~3.5	3.0~5.0	4.0~6.0
Screw Size Dia (mm)	Tapping Screw	2.0~3.0	2.6~3.5	3.0~4.0	2.0~2.6	2.6~3.5	2.0~3.0	3.0~4.5	3.0~5.0
Weight(g)		600	600	600	600	700	700	700	700
Length(mm)		260	260	260	260	269
