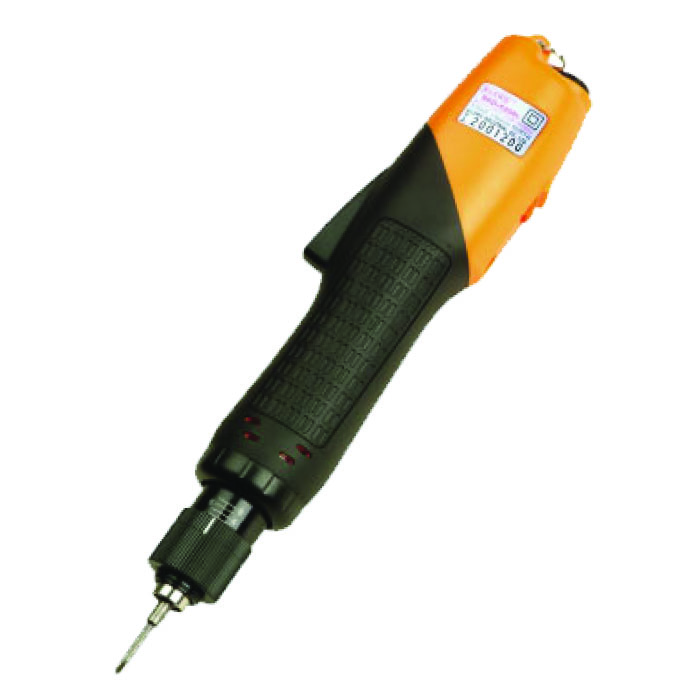

SKD-5000 Series
- New technology, ergonomic two-color housings, high temperature-resistant, vibration-resistant, slip-resistant, friendly holder, free form fatigue under long-time using and high working efficiency.
- Low-voltage automatic clutch electric screwdrivers with power controllers, can keep long-time operation, high stability, no influence by fluctuated voltage and high efficiency.
- High tech DC motor with parts made in JAPAN. Fast start with low electric current. Stable torque within accuracy±3%
- 0-8 stepless torque adjustment, rotation speed selected by switches Hi & Lo.
- Suitable for high-tech PC, laptop, game cube, etc. Torque fixing ring(KC-6C) can be set to fix torque.

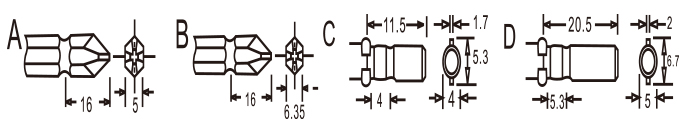

- There are four kinds of bit holder –A, B, C, D. Any screw, socket and nut can be used.
- SKD-5200L Trigger series meet UL, CE approval and ESD is offered for the needs of customer.
Specifications
| Model | SKD-5200L | SKD-5200P | SKD-5300L | SKD-5300P | SKD-5300LF | SKD-5300PF | |
| Input Voltage | DC24V or DC32V | DC32V | |||||
| Power Consumption | 48W | ||||||
| Torque | (Kgf.cm) | 1~12 | 2~12 | 3~16 | 1~8 | 2~8 | |
| (Lbf.in) | 0.89~10.44 | 1.77~10.44 | 2.57~13.89 | 0.89~6.9 | 1.77~6.9 | ||
| (N.m) | 0.1~1.18 | 0.2~1.18 | 0.29~1.57 | 0.1~0.78 | 0.2~0.78 | ||
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | |||
| LO | 700 | 700 | 一 | ||||
| Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | |||
| Tapping Screw | 1.6~2.6 | 2.3~3.0 | 1.6~2.6 | ||||
| Weight(g) | 480 | ||||||

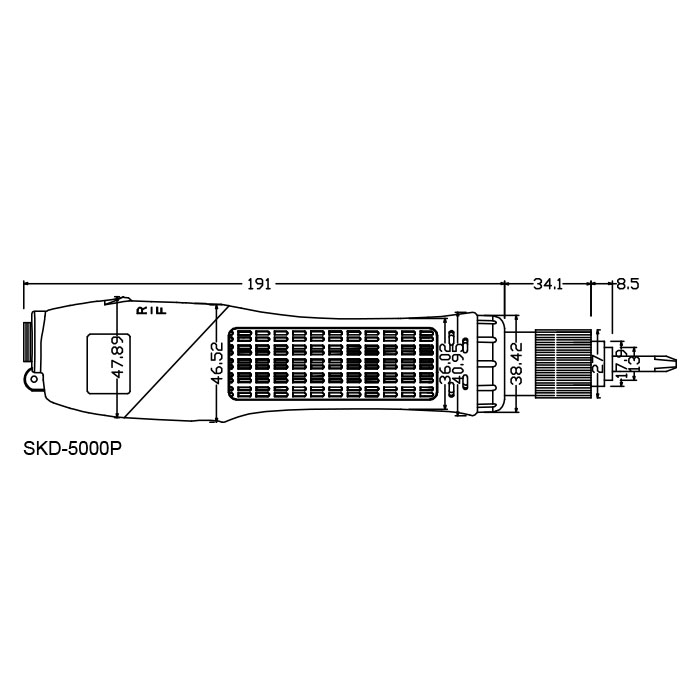

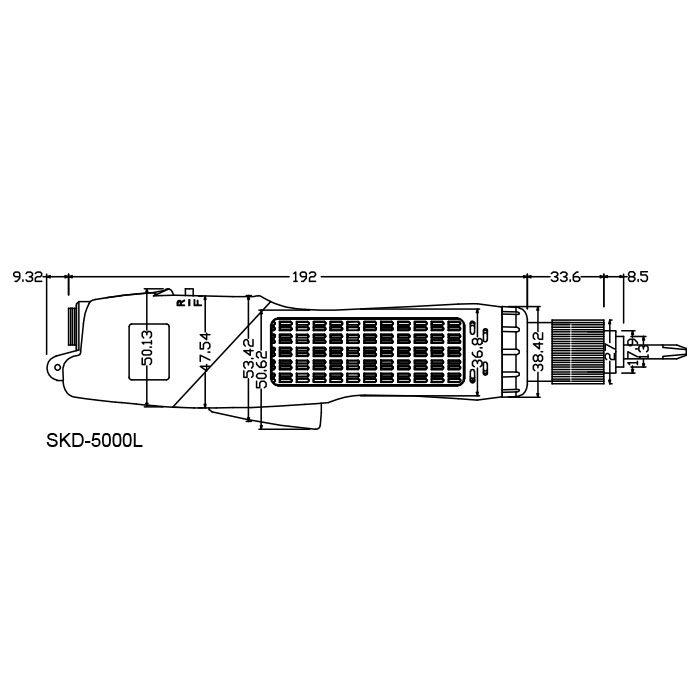

| Length(mm) | 230 | ||||||
| ESD(Anti-Static) | V(With Black housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||
| Power Controller | SKP-32HL-60W | ||||||
| Bit Type |  |
||||||
