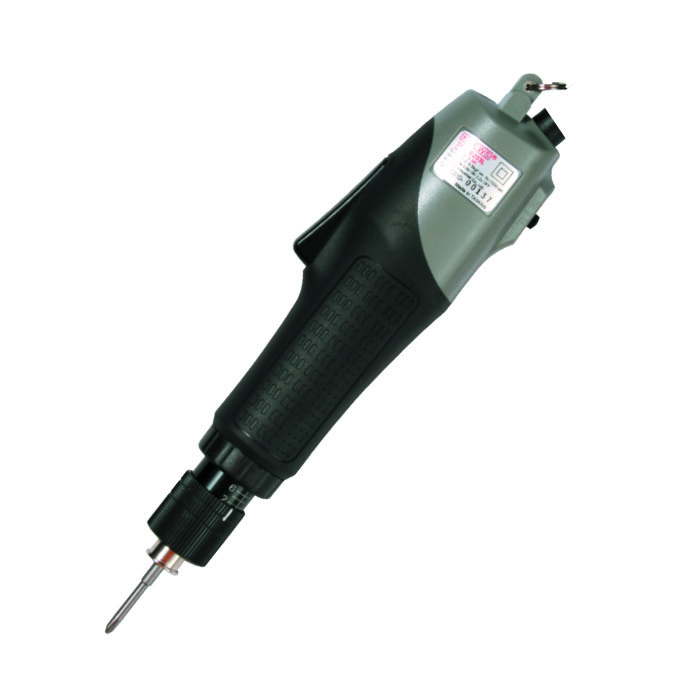

SK-BN200 Series
- Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
- Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
- Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
- Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
- CE and ETL are optional
Specifications
| Model | SKD-BN203L | SKD-BN203LS5 | SKD-BN203LS6 | SKD-BN203LS7 | SKD-BN207L | SKD-BN210L/P | |
| Input Voltage | DC24V or DC32V | ||||||
| Power Consumption | 25W | ||||||

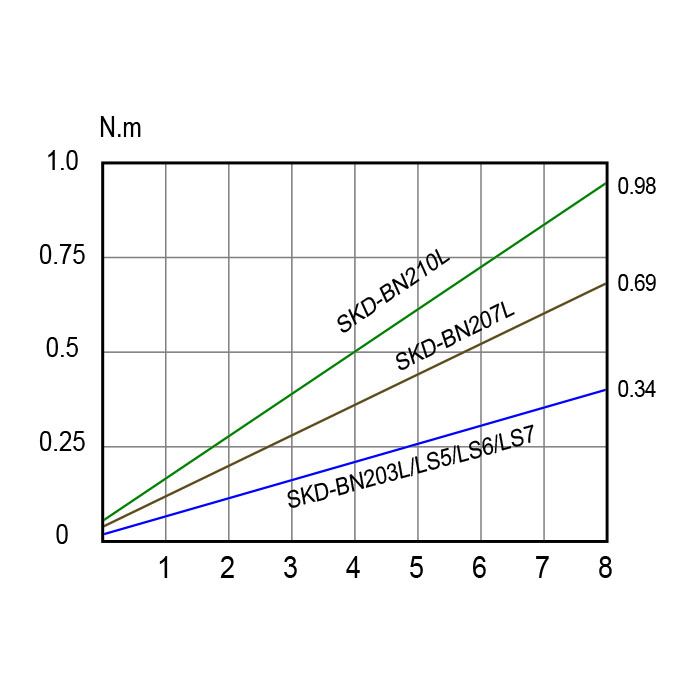

| Torque | (Kgf.cm) | 0.2~3.5 | 0.2~3.5 | 0.2~3.5 | 0.2~3.5 | 0.5~7 | L:1~10 / P:2~10 |
| (Lbf.in) | 0.18~3.01 | 0.18~3.01 | 0.18~3.01 | 0.18~3.01 | 0.44~6.10 | L:0.89~8.67/P:1.77~8.67 | |
| (N.m) | 0.02~0.34 | 0.02~0.34 | 0.02~0.34 | 0.02~0.34 | 0.05~0.69 | L:0.10~0.98/P:0.2~0.98 | |
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | StepLess | ||||||
| Free Speed (r.p.m) | HI | 1000 | 500 | 370 | 230 | 1000 | 1000 |
| LO | 700 | 350 | 260 | 160 | 700 | 700 | |
| Screw Size Dia (mm) | Machine Screw | 1.0~2.3 | 1.0~2.3 | 1.0~2.3 | 1.0~2.3 | 1.4~2.6 | 1.6~3.0 |
| Tapping Screw | 1.0~2.0 | 1.0~2.0 | 1.0~2.0 | 1.0~2.0 | 1.4~2.3 | 1.6~2.6 | |
| Weight(g) | L:330 P:310 | ||||||

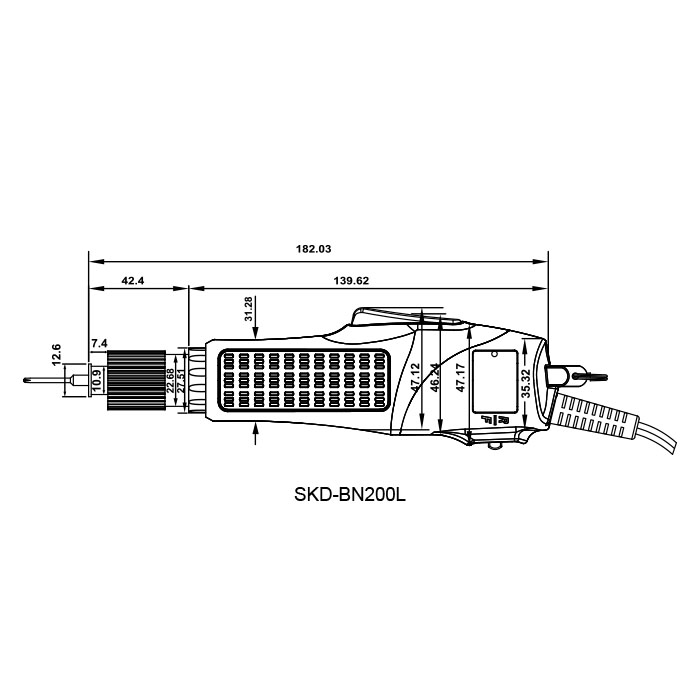

| Length(mm) | L:185 P:230 | ||||||
| ESD(Anti-Static) | V(With Black housing) | ||||||
| ETL | V | ||||||
| CE | V | ||||||
| RoHS | V | ||||||
| Bit Type |  | ||||||
