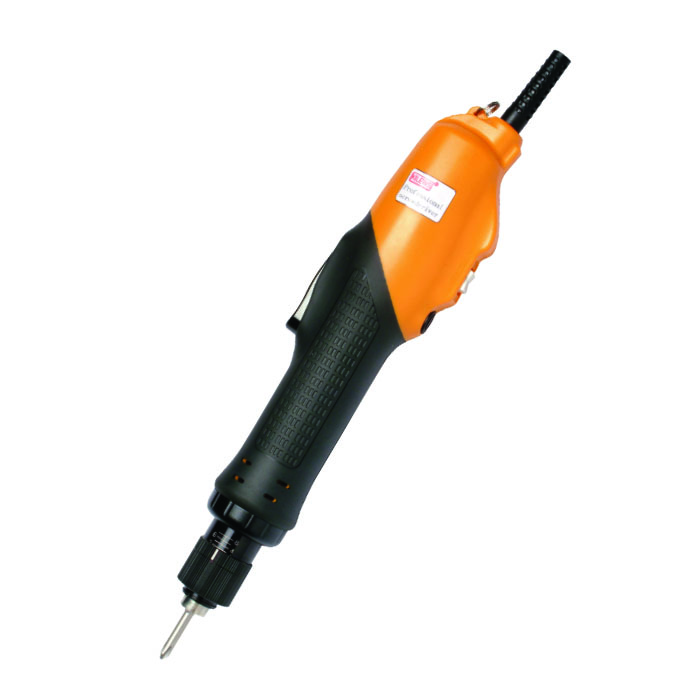

SK-3 Series
- Extra strong magnet.
- Fatigue-resistant for long time using, torque accuracy ±3%
- Compact, light-weight, and easy to operate, improve production efficiency.
- Best fit for laptop and peripherals operation.
- Torque fixable with a fixing ring(KC-6C)
- Conform to EMI, EMC International Safety Standards.
Specifications
| Model | SK-3120L SK-3120P | SK-3180L SK-3180P | SK-3180LF SK-3180PF | SK-3220L SK-3220P | SK-3280L SK-3280P | SK-3280LF SK-3280PF | |
| Input Voltage | AC110~120V 50/60Hz | AC220~240V 50/60Hz | |||||

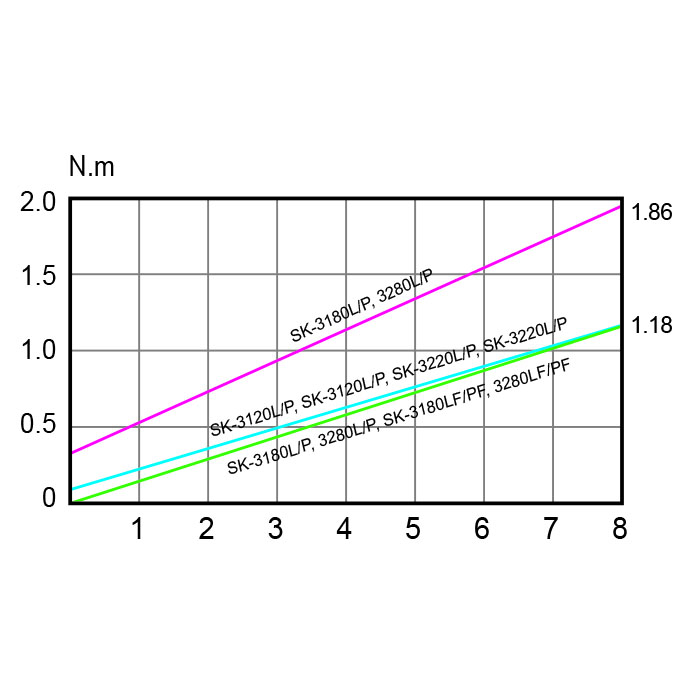

| Torque | (Kgf.cm) | L : 1.5~12 | L/P:3~19 | L : 1.5~12 | L : 1.5~12 | L/P:3~19 | L : 1.5~12 |
| P : 2~12 | P : 2~12 | P : 2~12 | P : 2~12 | ||||
| (Lbf.in) | L : 1.33~10.44 | L/P:2.57~16.46 | L : 1.33~10.44 | L : 1.33~10.44 | L/P:2.57~16.46 | L : 1.33~10.44 | |
| P : 1.77~10.44 | P : 1.77~10.44 | P : 1.77~10.44 | P : 1.77~10.44 | ||||
| (N.m) | L : 0.15~1.18 | L/P:0.29~1.86 | L : 0.15~1.18 | L : 0.15~1.18 | L/P:0.29~1.86 | L : 0.15~1.18 | |
| P : 0.2~11.8 | P : 0.2~11.8 | P : 0.2~11.8 | P : 0.2~11.8 | ||||
| Repeatable Torque Accuracy(%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed (r.p.m) | 1000 | 1000 | 2000 | 1000 | 1000 | 2000 | |
| Power Consumption | 0.3A | 0.3A | 0.3A | 0.2A | 0.2A | 0.2A | |
| Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 2.6~3.5 | 2.0~3.0 | 1.6~3.0 | 2.6~3.5 | 2.0~3.0 |
| Tapping Screw | 1.6~2.6 | 2.6~3.0 | 2.0~2.6 | 1.6~2.6 | 2.6~3.0 | 2.0~2.6 | |
| Weight(g) | 550 | 550 | |||||

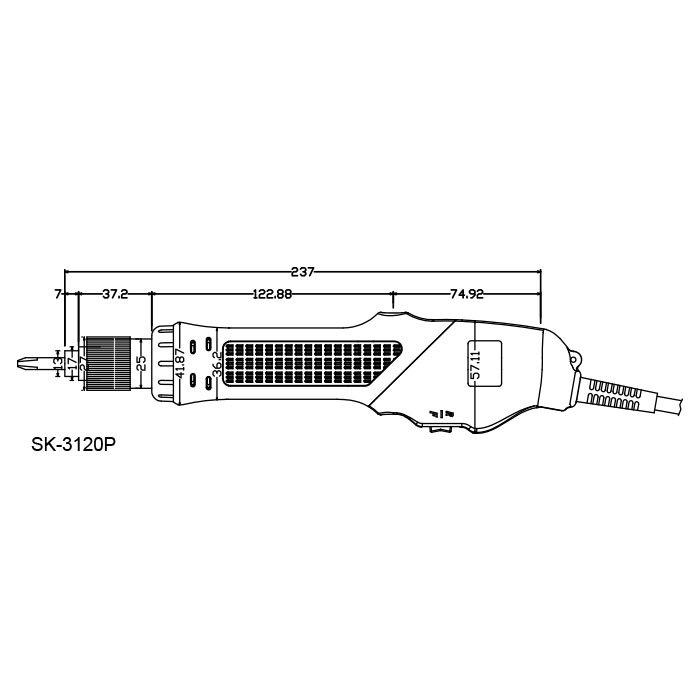

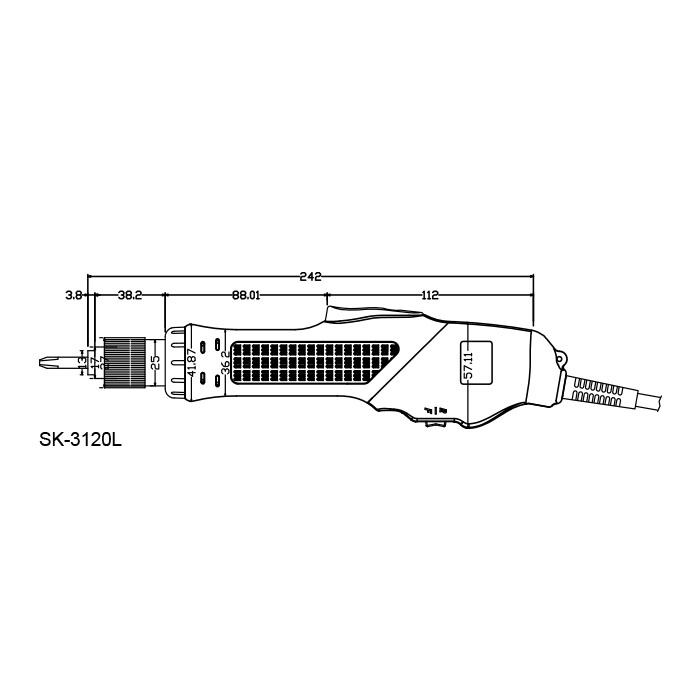

| Length(mm) | L/242 P237 | ||||||
| ESD(Anti-Static) | 一 | ||||||
| UL(Anti-Static) | 一 | ||||||
| CE | 一 | ||||||
| RoHS | V | ||||||
| Bit Type |  |
||||||
