SK-B5 Series

AC Plug; No adaptor needed.
Torque range 1.5~22Kgf.cm.
Adopts High-Functional Brushless Motor.
Best fit for general machine screws operation.
High rotation Speed.

Specifications

Product Specifications

Model		SK-B5112L SK-B5112P	SK-B5112LF SK-B5112PF	SK-B5117LF SK-B5117PF	SK-B5122L SK-B5122P	SK-B5212L SK-B5212P	SK-B5212LF SK-B5212PF	SK-B5217LF SK-B5217PF	SK-B5222L SK-B5222P
Input Voltage		AC110~120V 50/60Hz				AC220~240V 50/60Hz
Torque	(Kgf.cm)	L:1.5~12	L:1.5~12	3~17	3~22	L:1.5~12	L:1.5~12	3~17	4~22
		P:2~12	P:2~12			P:2~12	P:2~12
	(Lbf.in)	L:1.33~10.44	L:1.33~10.44	2.57~14.78	3.47~19.12	L:1.33~10.44	L:1.33~10.44	2.57~14.78	3.47~19.12
		P:1.77~10.44	P:1.77~10.44			P:1.77~10.44	P:1.77~10.44
	(N.m)	L:0.15~1.18	L:0.15~1.18	0.29~1.67	0.39~2.16	L:0.15~1.18	L:0.15~1.18	0.29~1.67	0.39~2.16
		P:0.2~1.18	P:0.2~1.18			P:0.2~1.18	P:0.2~1.18
Repeatable Torque Accuracy(%)		±3%
Torque Adjustment		StepLess
Free Speed (r.p.m) (r.p.m)		1200	2000	2000	1200	1200	2000	2000	1200
Power Consumption		0.4A				0.2A
Screw Size Dia (mm)	Machine Screw	1.6~3.0	1.6~3.0	1.6~3.5	2.3~4.0	1.6~3.0	1.6~3.0	1.6~3.5	2.3~4.0
	Tapping Screw	1.6~2.6	1.6~2.6	1.6~3.0	2.3~3.5	1.6~2.6	1.6~2.6	1.6~3.0	2.3~3.5
Weight(g)		470

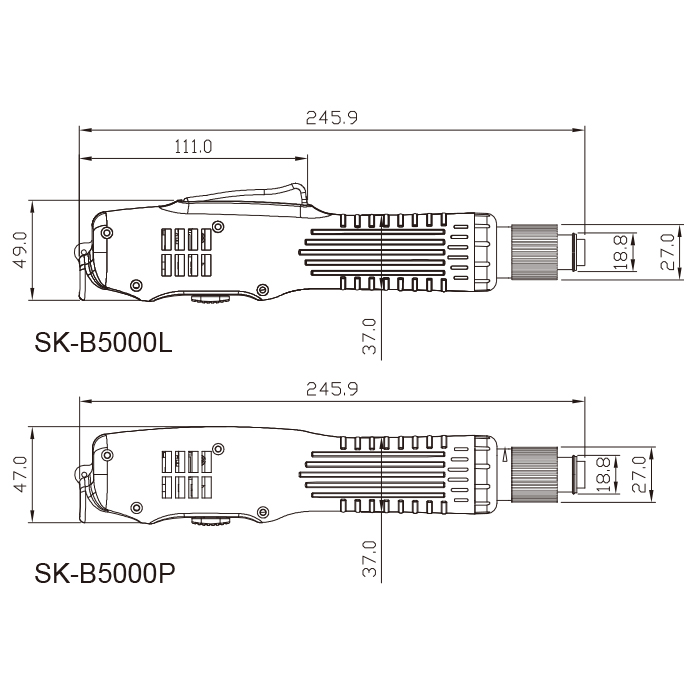

Length(mm)		245
ESD(Anti-Static)
ETL		V
CE						V
RoHS		V
Bit Type
