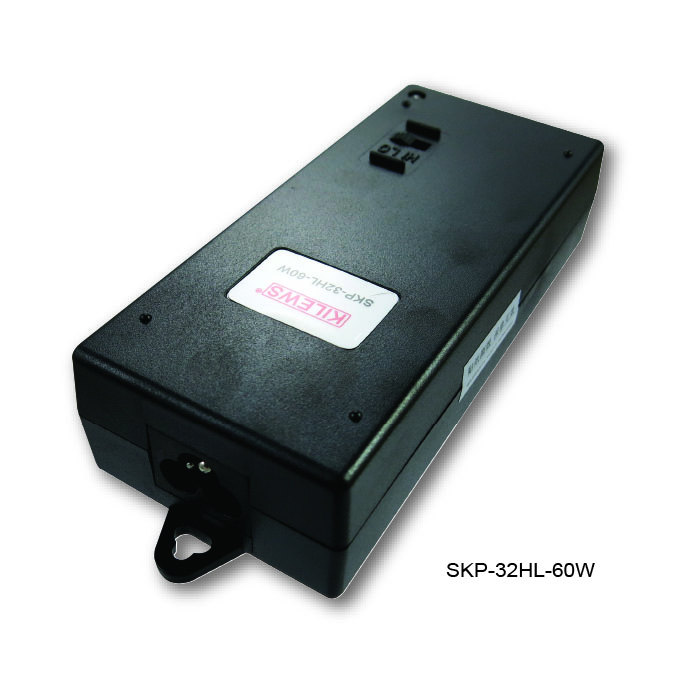

SKP-32HL-60W
- Output voltage: DC24V and DC32V two selections.
- Power switch: ON/OFF indicator. Two kinds of output voltage Hi & Lo.
- SKP-32HL-60W is a kind of intelligence power controller. Input 100V-240V by AC power source allows.
- SKP-32HL-60W has two output voltage levels, 32V and 24V, for user to choose.
- Please set the torque scale below 4 for operation when the voltage of SKP series is set as Lo or below 32V.
- Equipped with grounding device for eliminating static shock and anti-EMC.
- Support variant plug type for different country.
Product Spec
| Model | SKP-32HL-60W | ||
| Input Voltage | AC100~240V 50/60Hz | ||
| Output Voltage | Low DC 24V / Hi 32V | ||
| Output Capacity | 2A Max | ||

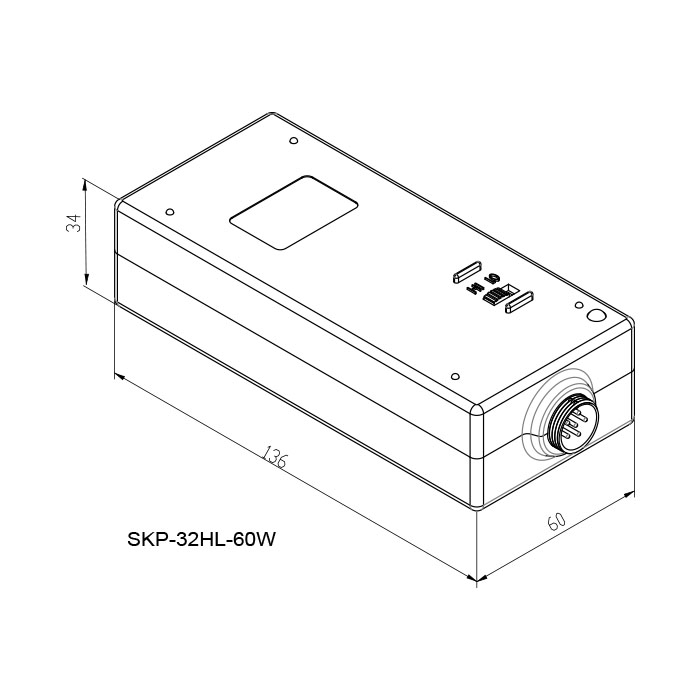

| Outside Dimensions | 136X60X34(mm) | ||
| Weight(g) | 480 | ||
| AC Cord Length | 2M with ground | ||
| Applicable Models | One screwdriver SKD-2300L, SKD-2200L, SKD-2000L, SKD-5200L, SKD-5200P, SKD-5300L, SKD-5300P, SKD-5300LF, SKD-5300PF, SKD-7000L, SKD-7000P, SKD-7200L, SKD-7200P, SKD-7800L, SKD-7800P, SKD-7800LF, SKD-7800PF, SKD-8300P, SKD-8400P, SKD-8500P, SKD-8300PF, SKD-8300L, SKD-8400L, SKD-8500L, SKD-8300LF | ||
| ESD(Anti-Static) | δΈ€ | ||
| UL(CUL)ETL | V | ||
| CE | V | ||
| RoHS | V | ||
| Remark |  |
||
