SKP Series
- Power switch: ON/OFF indicator. Two kinds of output Voltage Hi & Lo.
- Please set the torque scale below 4 for operation when the voltage of SKP series is set as Lo or below 32V.
- Support variant plug type for different country.

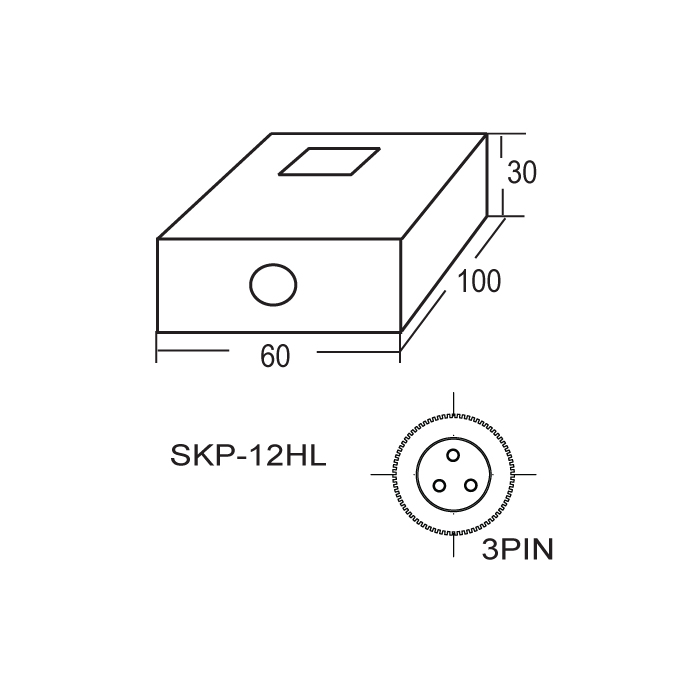

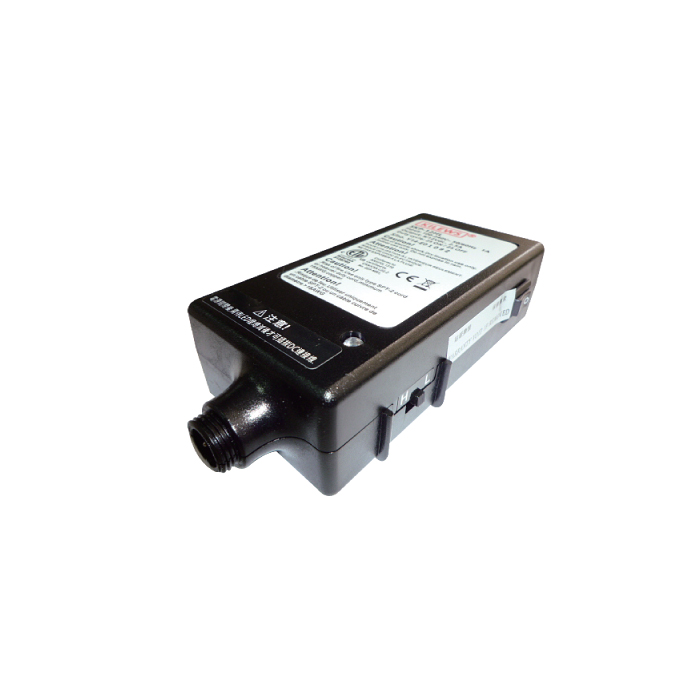

SKP-12HL

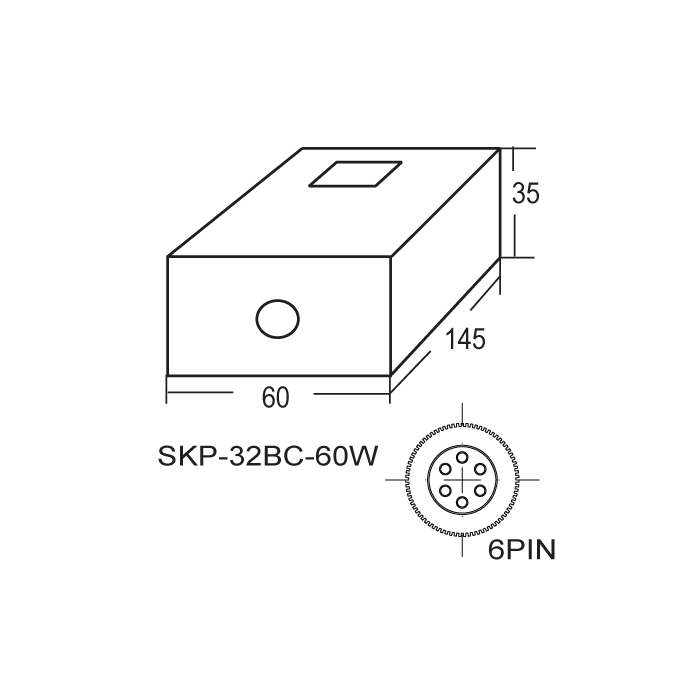

SKP-32BC-60W

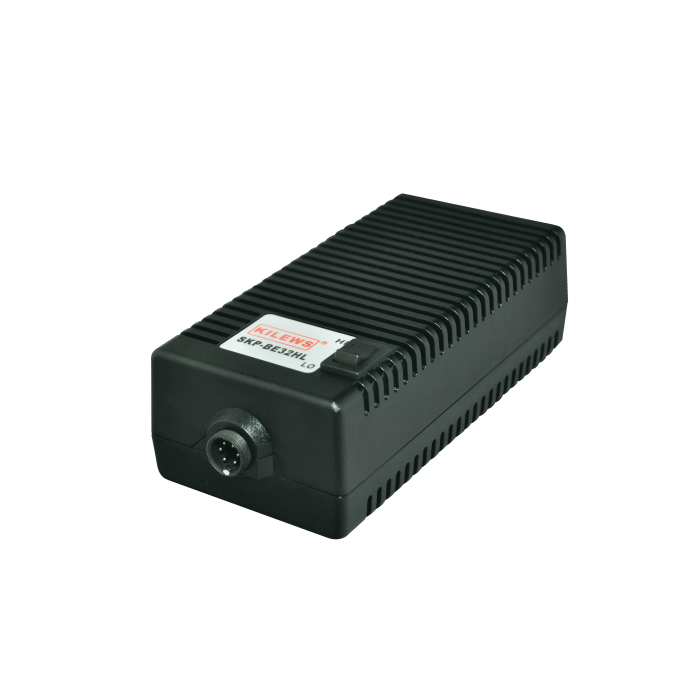

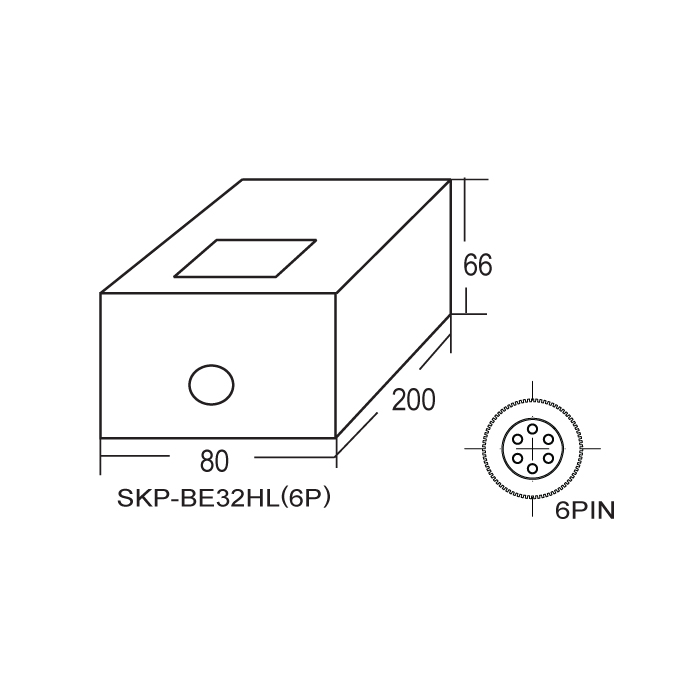

SKP-BE32HL(6P)
SKP-32BC-60W
SKP-BE32HL(6P)
Product Spec
| Model | SKP-12HL | SKP-32BC-60W | SKP-BE32HL(6P) | ||||
| Input Voltage | AC 100~240V 50~60HZ | AC 100~240V 50~60HZ | AC 100~240V 50~60HZ | ||||
| Output Volatge | LO DC 9V/ HI DC 12V | LO DC 24V/ HI DC 32V | LO DC 24V/ HI DC 32V | ||||
| Capacity | 2.5A | 1.8A MAX | 3A MAX | ||||
| model | 100X50X35(mm) | 145X60X35(mm) | 200X80X66(mm) | ||||
| Weight(g) | 144.5(main body) | 250(main body) | 460(main body) | ||||
| AC Cord Length | 2M with ground | 2M with ground | 2M with ground | ||||
| Remark (optional) |  |
||||||
| Applicable Models | SKD-B100 Series | SKD-BN 200 Series SKD-BE 200 Series SKD-BN 500 Series (Not included F type series) SKD-BE 500 Series (Not included F type series) | SKD-BN200 Series SKD-BE200 Series SKD-BN500 Series SKD-BE500 Series SKD-BN7000 Series | ||||
