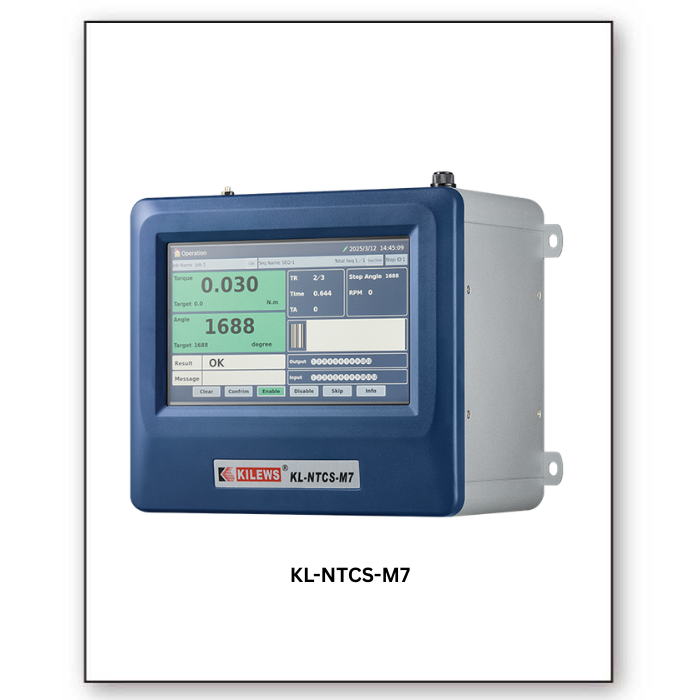

KL-NTCS-M7
- Smart transducerized high precision torque & angle control tightening system
for industry 4.0
- High-resolution encoder technology enables precise and strict control of
screw tightening angle
- < 1% tolerance torque transducer, allows all fasteners to reach target
torque with exceptional precision
- User friendly UI design with 7” color LCD touch screen
- Save up to 100 jobs
- Beginner-friendly downshift and threshold settings
- 5 available rundown steps to customize your screw rundown process
- Real-time torque & angle control + rundown monitor to achieve in-process
tightening control & 0 defect assembly line
- Real-time data collection & rundown graph
- Save up to 1 million tightening data
- Programmable 11 input & 11 output I/O
- Communication: Modbus RS485*1 & Ethernet RJ45*1
- Transfer controller settings via FTP/USB
Product Spec
| Model
|
KL-NTCS-M7
|
| Input Voltage |
AC 115V / 230V |
| Input Frequence |
50 - 60Hz |
| Input Current |
6.3A |
| Output Voltage |
DC 40V |
| Output Current |
Max 9A |
| power consumption |
360W |

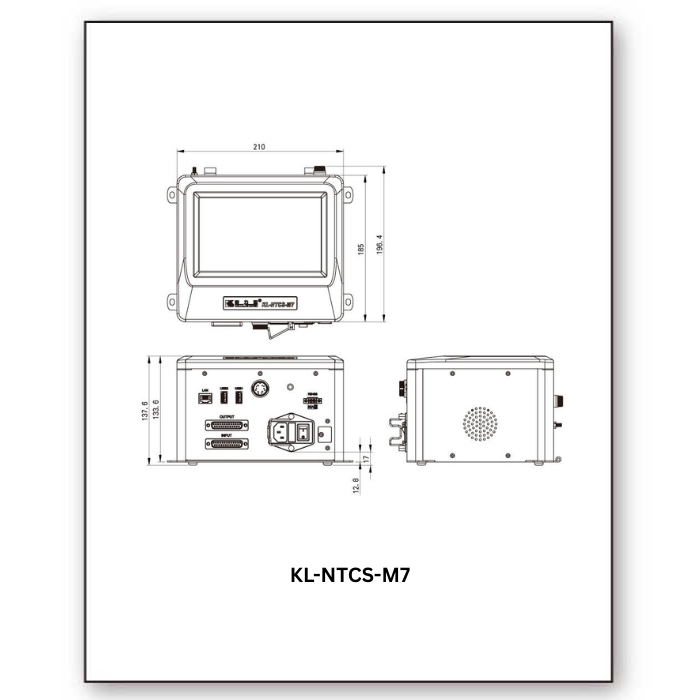

| External dimensions(mm) |
210*185*134 |
| Weight(g) |
3467 |
| Applicable Model |
SNT-CS Series |
