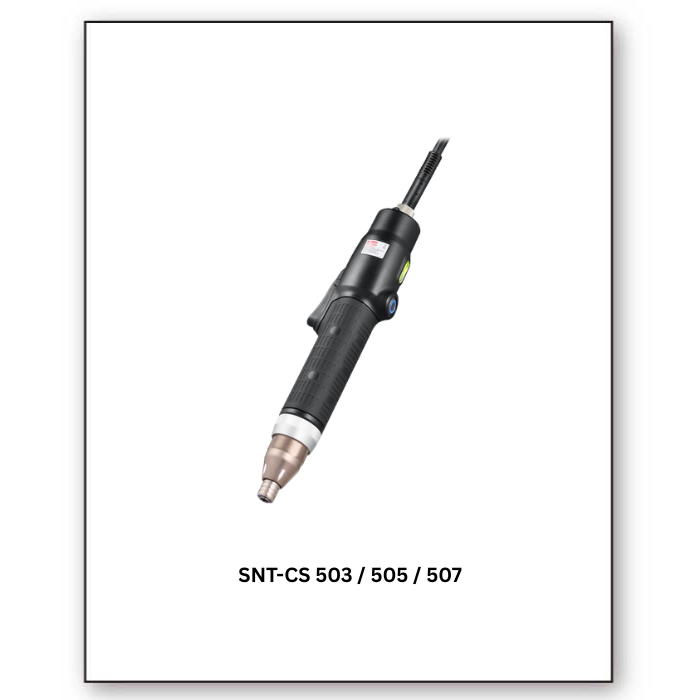

SNT-CS 503 / 505 / 507
- Compact and ergonomic design for long time operation without hand fatigue
- Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
- 4 tool start methods: lever start, push start, lever + push start and external start
- 4 LED illumination modes: On / Off / On when the tool starts / On when triggered
- Tightening status LED and buzzer alert
- Transducerized DC torque & angle control tightening system
- High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
- < 1% tolerance, precision & accurate torque transducer
- Beginner-friendly downshift and threshold settings in normal mode
- 5 available rundown steps to customize your screw rundown process
Product Spec
| Model | SNT-CS503 | SNT-CS505 | SNT-CS507 | |
| Input Voltage | DC40 | |||
| Torque | (N.m) | 0.1~10.38~3 | 0.63~5 | 0.88~7 |
| (kgf.cm) | 3.88~30.60 | 6.43~51.00 | 8.98~71.40 | |
| (Lbf.in) | 3.36~26.55 | 5.58~44.26 | 7.79~61.96 | |
| Repeatable Torque Accuracy | +/- 3sigma / AVG., 5% | |||
| Free Speed(r.p.m) | 1600~20 | 1100~20 | 660~20 | |
| Power Consumption | 90W | |||
| Weight(g) | 949 | |||
| Length(mm) | 307 | |||
| Applicable controller | KL-NTCS-M7 | |||
| Bit Type | A 、 B 9.5 、 D | A 、 B 9.5 | B 9.5 | |
