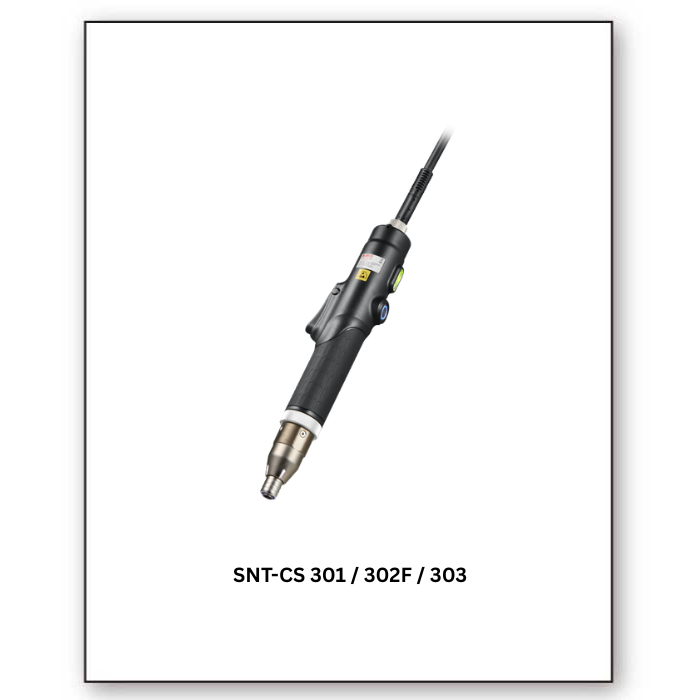

SNT-CS 301 / 302F / 303
- Compact and ergonomic design for long time operation without hand fatigue
- Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
- 4 tool start methods: lever start, push start, lever + push start and external start
- 4 LED illumination modes: On / Off / On when the tool starts / On when triggered
- Tightening status LED and buzzer alert
- Transducerized DC torque & angle control tightening system
- High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
- < 1% tolerance, precision & accurate torque transducer
- Beginner-friendly downshift and threshold settings in normal mode
- 5 available rundown steps to customize your screw rundown process
Product Spec
| Model | SNT-CS301 | SNT-CS302F | SNT-CS303 | |
| Input Voltage | DC40 | |||
| Torque | (N.m) | 0.1~1 | 0.3 ~2.4 | 0.38~3 |
| (kgf.cm) | 1.02~10.2 | 3.06~24.48 | 3.88~30.60 | |
| (Lbf.in) | 0.89~8.85 | 2.66~21.24 | 3.36~26.55 | |
| Repeatable Torque Accuracy | +/- 3sigm / AVG., 5% | |||
| Free Speed(r.p.m) | 980~20 | 2000~20 | 980~20 | |
| Power Consumption | 90W | |||
| Weight(g) | 644 | 705 | 705 | |
| Length(mm) | 285 | 293 | 293 | |
| Applicable controller | KL-NTCS-M7 | |||
| Bit Type | B 9.5、 C、 D | B、 B 9.5 、 D | B、 B 9.5 、 D | |
