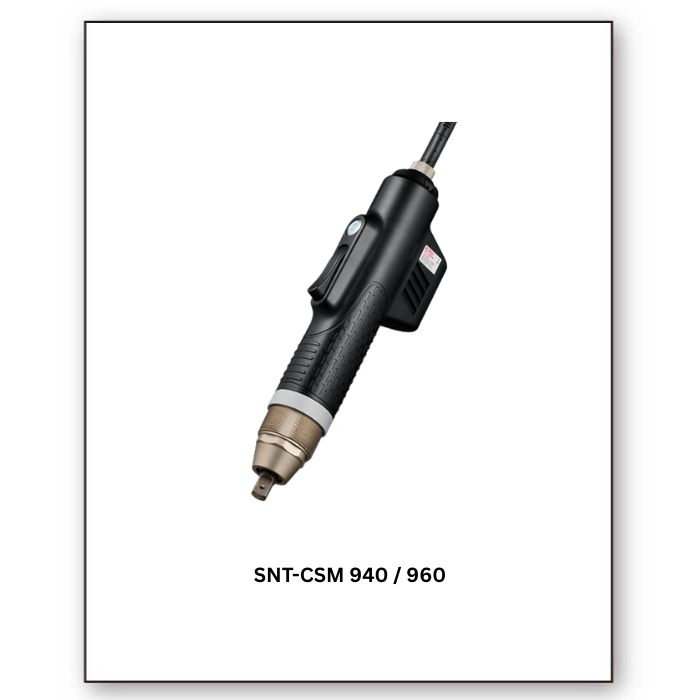

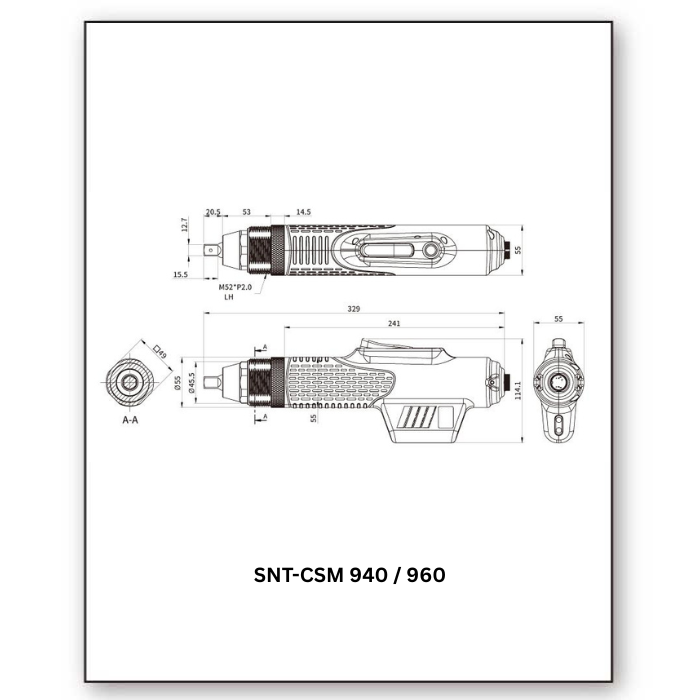

SNT-CSM 940 / 960
- Compact and ergonomic design for long time operation without hand fatigue
- Rubberized grip provides a non-slip surface to secure hold, absorbs shock
and vibration
- 4 tool start methods: lever start, push start, lever + push start and
external start
- 4 LED illumination mode: On / Off / On when the tool starts / On when
triggered
- Tightening status LED and buzzer alert
- Transducerized DC torque & angle control tightening system
- High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85
turns)
- < 1% tolerance, precision & accurate torque transducer
- Beginner-friendly downshift and threshold settings in normal mode
- 5 available rundown steps to customize your screw rundown process
Product Spec
| Model
|
KL-NTCS-M7
|
| Input Voltage |
AC 115V / 230V |
| Input Frequence |
50 - 60Hz |
| Input Current |
6.3A |
| Output Voltage |
DC 40V |
| Output Current |
Max 9A |
| power consumption |
360W |
| External dimensions(mm) |
210*185*134 |
| Weight(g) |
3467 |
| Applicable Model |
SNT-CS Series |
