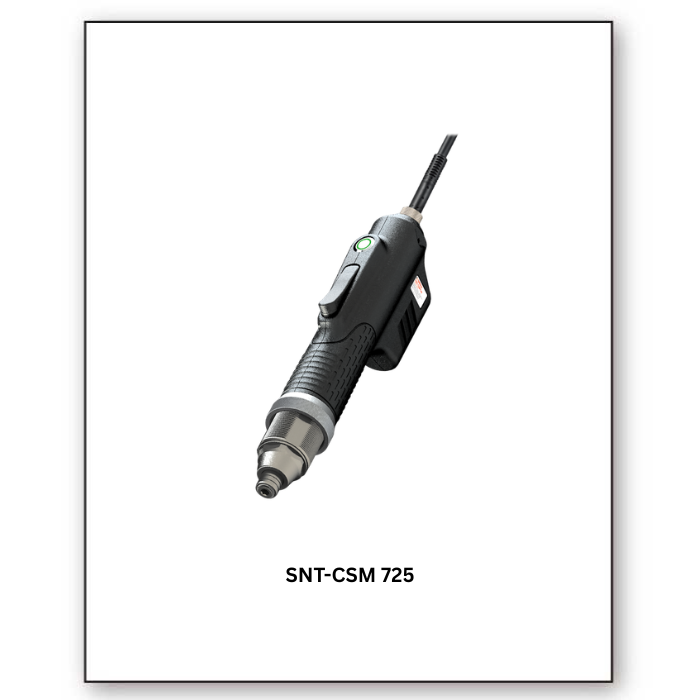

SNT-CSM 725
- Compact and ergonomic design for long time operation without hand fatigue
- Rubberized grip provides a non-slip surface to secure hold, absorbs shock and vibration
- 4 tool start methods: lever start, push start, lever + push start and external start
- 4 LED illumination modes: On / Off / On when the tool starts / On when triggered
- Tightening status LED and buzzer alert
- Transducerized DC torque & angle control tightening system
- High-resolution encoder, angle control 1° - 30600° (30600° is approx. 85 turns)
- < 1% tolerance, precision & accurate torque transducer
- Beginner-friendly downshift and threshold settings in normal mode
- 5 available rundown steps to customize your screw rundown process
Product Spec
| Model | SNT-CSM725 | |||
| Input Voltage | DC40 | |||
| Torque | (N.m) | 3.13~ 25 | ||
| (kgf.cm) | 31.93 ~ 255 | |||
| (Lbf.in) | 27.70~ 221.28 | |||
| Repeatable Torque Accuracy | +/- 3sigma / AVG., 5% | |||
| Free Speed(r.p.m) | 350~20 | |||
| Power Consumption | 90W | |||
| Weight(g) | 1790 | |||

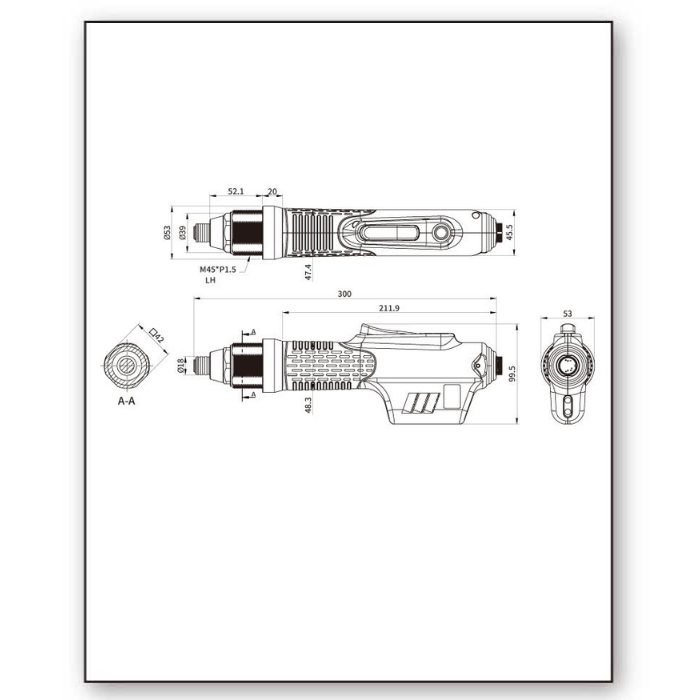

| Length(mm) | 300 | |||
| Applicable controller | KL-NTCS-M7 | |||
| Bit Type | B 9.5、W3/8〞 | |||
